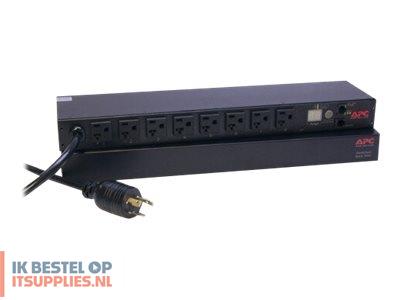

APC Switched Rack PDU - Power distribution strip

Productcode: AP7901 | EAN/UPC: 0731304206538

€ 831,80 excl.btw

APC Switched Rack PDU - Power distribution strip - AC 120 V - Ethernet 10/100 - input: NEMA L5-20 - output connectors: 8 (NEMA 5-20) - 1U - 19" - black - for P/N: AR3100, SU5000R5T-TF3, SU5000R5T-TF3-TU, SU5000R5XLT-TF3, SU5000R5XLT-TF3-TU

Network management
Remote individual outlet control
Power delays
Load indicator LED
Flash upgradeable
Integrates with InfraStruXure Central

Op voorraad: 0 stuk(s)

Levertijd:

Product:
APC Switched Rack PDU - Power distribution strip

€ 1006,48 incl. 21% btw € 831,80excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Product features

Network management
Full-featured network management interfaces that provide standards-based management via Web, SNMP and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Remote individual outlet control
Remotely manage outlets so users can turn outlets off that are not in use or recycle power to locked-up equipment.
Power delays
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.
Load indicator LED
This indicates overload and warning conditions based on the user-defined alarm thresholds, and alerts users of potential overloaded circuits.
Integrates with InfraStruXure Central
An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.

Specificaties

General

Device Type

Power distribution strip - external

Height (Rack Units)

Rack Size

19"

Colour

Black

Power Device

Input Voltage

AC 120 V

Input Connectors

1 x power NEMA L5-20

Power Output Connectors Details

8 x power NEMA 5-20

Output Voltage

AC 120 V

Max Electric Current

15 A

Networking

Remote Management Interface

Ethernet 10/100

Remote Management Protocol

SNMP, Telnet, HTTP

Expansion / Connectivity

Interfaces

1 x LAN - RJ-45
1 x serial - RJ-12

Miscellaneous

Cables Included

Power cable - integrated - 2.4 m
Serial cable - external

Rack Mounting Kit

Included

Features

LCD display, LED display

Compliant Standards

FCC Class A certified, UL, cUL, ICES-003, VCCI Class A ITE, UL 60950

Software / System Requirements

Software Included

Drivers & Utilities

OS Required

Microsoft Windows NT 4.0, Microsoft Windows 98/2000/XP

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

45 °C

Min Storage Temperature

-25 °C

Max Storage Temperature

65 °C

Humidity Range Operating

5 - 95%

Humidity Range Storage

5 - 95%

Dimensions & Weight

Width

44.5 cm

Depth

10.8 cm

Height

4.5 cm

Weight

2.3 kg

Compatibility Information

Designed For

P/N: AR3100, SU2200R3X147, SU2200R3X152, SU2200R3X152-TU, SU5000R5T-TF3, SU5000R5T-TF3-TU, SU5000R5XLT-TF3, SU5000R5XLT-TF3-TU

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
