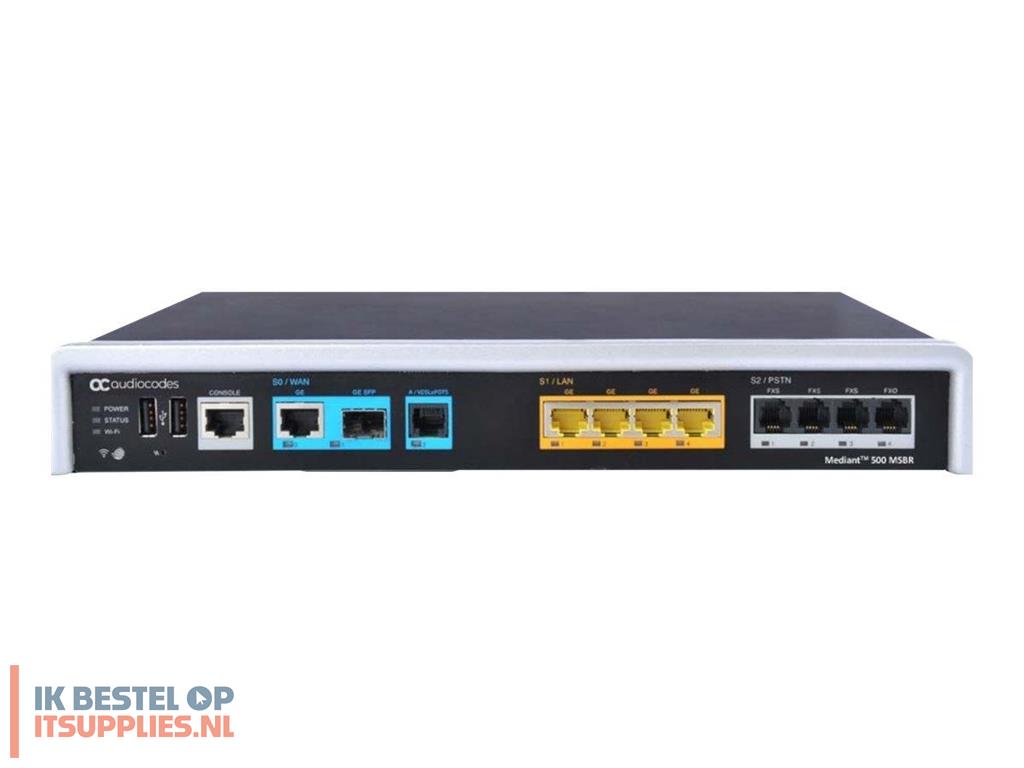

AudioCodes Mediant 500 MSBR - VoIP gateway

VoIP gateway

1U

31 cm

21 cm

4.37 cm

2 kg

Desktop

Wireless, wired

T-1/E-1

G.711, G.723.1

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n

TCP/IP, UDP/IP, L2TP, IPSec, PPPoE, PPPoA

RIP-1, RIP-2, BGP, IGMPv2, OSPFv2, static IP routing

SNMP 2, Telnet, SNMP 3, HTTPS, SSH, TR-069, TR-098, TR-104, ICMP, TR-181

Maximum number of sessions: up to 60 ¦ Maximum number of registered users: up to 500

Layer 2 switching, VLAN support, Syslog support, packet filtering, IPv6 support, DDos attack prevention, SSH support, Jumbo Frames support, DHCP server, IPv4 support, DHCP relay, Stateful Packet Inspection Firewall (SPIF), DHCP client, SYN Flooding, Zero-touch provisioning (ZTP), layer 3 roaming, DMZ support, VLAN Tagging, bridge mode, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP)

Triple DES, MD5, AES, SHA-256

Secure Shell (SSH), RADIUS, TACACS

IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, G.711, G.729a, G.722, G.723.1

SIP, RTP, SRTP

G.711, G.722, G.723.1, G.729a, T.38, AMR-WB, Opus-NB, AMR-NB, SILK-NB, SILK-WB

ITU T.38

1

4 x 1000Base-T - RJ-45 ¦ 1 x T1/E1 ¦ 1 x 1000Base-X - SFP (WAN) ¦ 1 x 1000Base-T - RJ-45 ¦ 3 x FXS - RJ-11 ¦ 1 x FXO/FXS - RJ-11

G.722, G.711

Internal power supply

1

AC 120/230 V (50/60 Hz)

0 °C

40 °C

10 - 90% (non-condensing)
