General
Platform Technology
Intel vPro Platform
Type

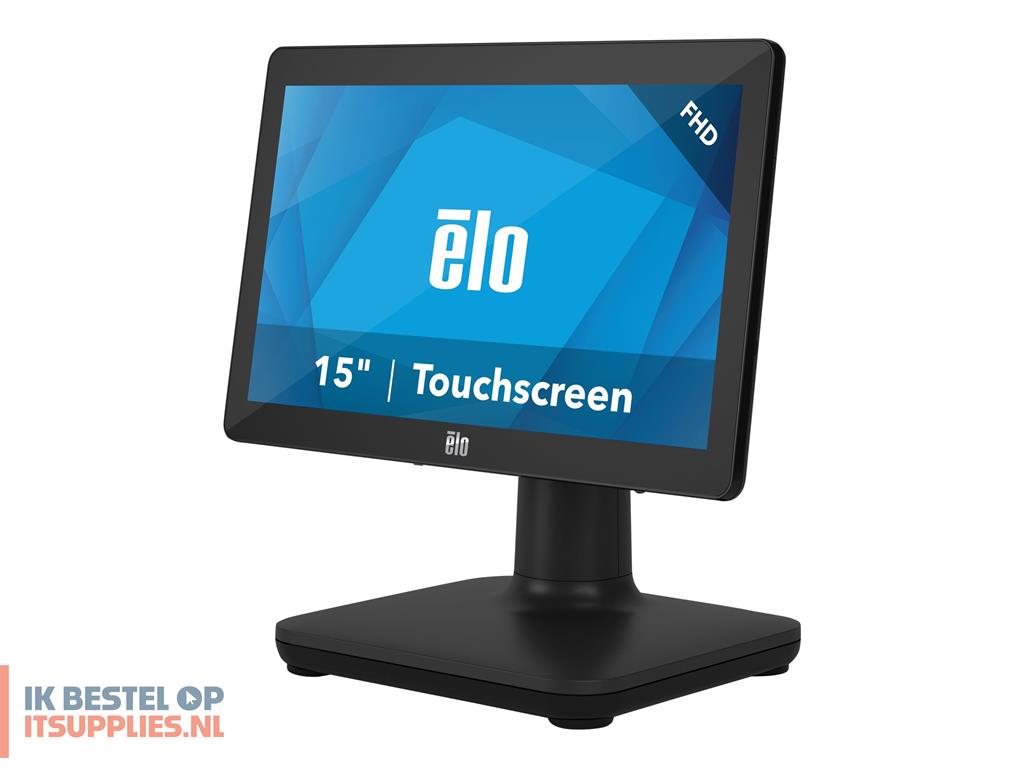

Point of sale terminal
Product Form Factor
All-in-one
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Processor / Chipset
CPU
Intel Core i5 (8th Gen) 8500T
Processor Main Features
Intel Turbo Boost Technology 2, Intel Smart Cache
Cache Memory
RAM
Installed Size
16 GB (installed) / 32 GB (max)
Technology
DDR4 SDRAM - non-ECC
Effective Memory Speed
2666 MHz
Rated Memory Speed
2666 MHz
Form Factor
SO-DIMM 260-pin
Slots
2 (Total) / 0 (empty)
Configuration Features
2 x 8 GB
Hard Drive
Storage Controller
Controller Interface Type
SATA 6Gb/s
Optical Storage
Monitor
Touchscreen
Yes (10-point multi-touch)
Native Resolution
1920 x 1080 (Full HD)
Horizontal Viewing Angle
160
Vertical Viewing Angle
160
Image Brightness
255 cd/m²
Image Contrast Ratio
700:1
Monitor Features
Anti-glare, TouchPro Pro Projected Capacitive (PCAP) technology
Graphics Controller
Graphics Processor
Intel UHD Graphics 630
Audio Output
Speakers Included
2 x right / left channel
Networking
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Features
Intel Active Management Technology (AMT) 11
Expansion / Connectivity
Bays
1 (total) / 1 (free) x internal 2.5" x 1/8H
Slots
1 (total) / 0 (free) x M.2 Card
Interfaces
3 x USB 3.0
2 x USB 2.0
4 x USB 2.0 - micro-USB
2 x PoweredUSB (12 V)
1 x PoweredUSB (24 V)
1 x LAN (Gigabit Ethernet) - RJ-45
1 x cash drawer
1 x headphones
2 x serial - RJ-45
1 x USB-C (27 Watt charging)
Miscellaneous
Included Accessories
Cable cover locking screw
Cables Included
RJ-45 to DB-9 cable
Power cable (2 pcs.)
VESA Mounting Interface
75 mm
Compliant Standards
UL, TUV, VCCI, cUL, NOM, CB, CCC, FCC, S Mark, RCM, CE/EMC
Power
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
74 Watt
Operating System / Software
OS Provided
Windows 10 Pro 64-bit Edition
Sustainability Information
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Dimensions & Weight Details
38.62 cm - 22.12 cm - 36.93 cm - 4.9 kg - with stand
38.62 cm - 7.33 cm - 24.89 cm - 2.9 kg - without stand
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80% (non-condensing)
