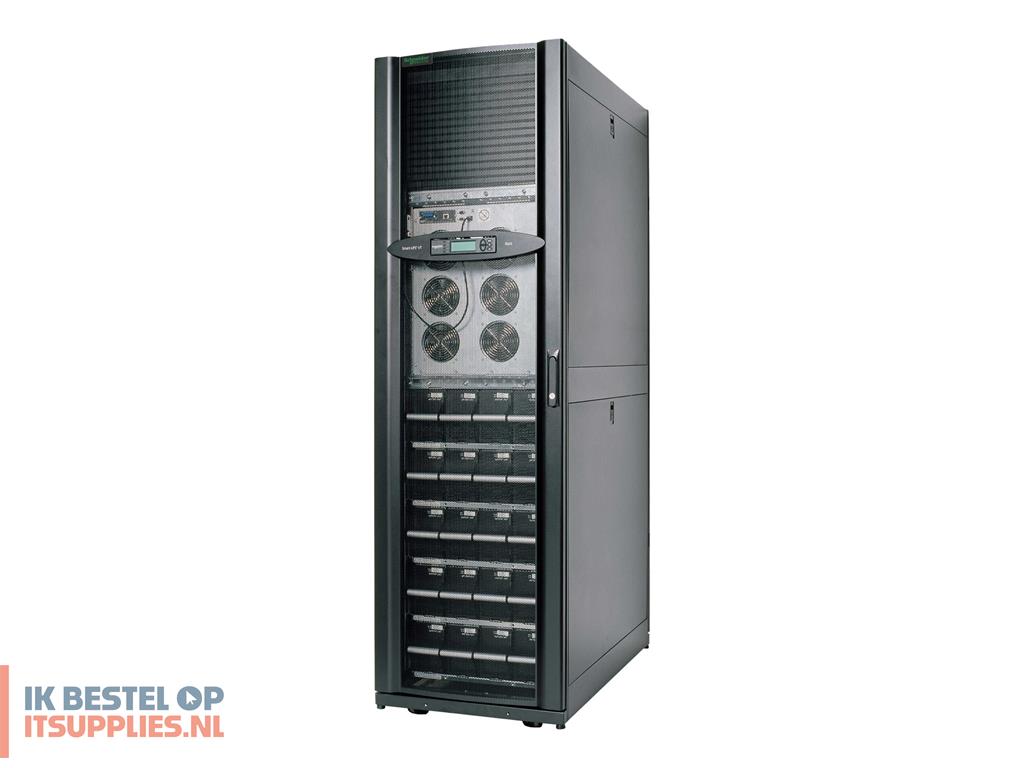

APC Smart-UPS VT 20kVA with 3 Battery Modules Expandable to 5

Productcode: SUVTR20KF3B5S | EAN/UPC: -

€ 14.631,53 excl.btw

APC Smart-UPS VT 20kVA with 3 Battery Modules Expandable to 5 - Power array - AC 208/220 V - 16 kW - 20000 VA - 3-phase - Ethernet 10/100 - output connectors: 6 - black

Field-replaceable power distribution panel;
Locking cabinet;
Multiple cable-entry points;
Resettable circuit breakers.

Op voorraad: 0 stuk(s)

Levertijd:

Product:
APC Smart-UPS VT 20kVA with 3 Battery Modules Expandable to 5

€ 17704,15 incl. 21% btw € 14631,53excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

APC Smart-UPS VT 20kVA with 3 Battery Modules Expandable to 5 - Power array - AC 208/220 V - 16 kW - 20000 VA - 3-phase - Ethernet 10/100 - output connectors: 6 - black

Specificaties

General

Device Type

Power array - external

Battery Enclosure Type

Internal

Colour

Black

Power Device

UPS Technology

On-line

Input Voltage

AC 208/220 V

Input Voltage Range

AC 165 - 240 V

Frequency Provided

57 - 63 Hz

Input Wiring

3-phase

Frequency Required

40 - 70 Hz

Input Connectors

1 x hardwire 5-wire (3PH + N + G)

Power Output Connectors Details

1 x hardwire 5-wire (3PH + N + G)
5 x power NEMA L21-20

Output Voltage

AC 120/208/220 V ± 5% - 57 - 63 Hz

Power Capacity

16 kW / 20000 VA

Output Waveform

Sinewave

Circuit Protection

Circuit breaker

Battery

Quantity

3 (installed) / 5 (supported)

Technology

Lead Acid

Run Time (Up To)

11.5 min at full load

Recharge Time

3 hours

Networking

Remote Management Interface

Ethernet 10/100

Remote Management Protocol

SNMP, Telnet, HTTP

Expansion / Connectivity

Interfaces

1 x management (Ethernet) - RJ-45

Miscellaneous

Cables Included

Serial cable - external

Features

Audible alarm, emergency power off, LCD display, built-in maintenance bypass, built-in static bypass

Compliant Standards

ISO 9001, cUL, UL 1778, ISO 14001

Software / System Requirements

Software Included

Drivers & Utilities

Manufacturer Warranty

Service & Support

Limited warranty - 1 year
Installation

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95%

Sound Emission

58 dBA

Dimensions & Weight

Width

60 cm

Depth

108 cm

Height

200 cm

Weight

656 kg

Dimensions & Weight (Shipping)

Shipping Width

60 cm

Shipping Depth

108 cm

Shipping Height

200 cm

Shipping Weight

691 kg

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
