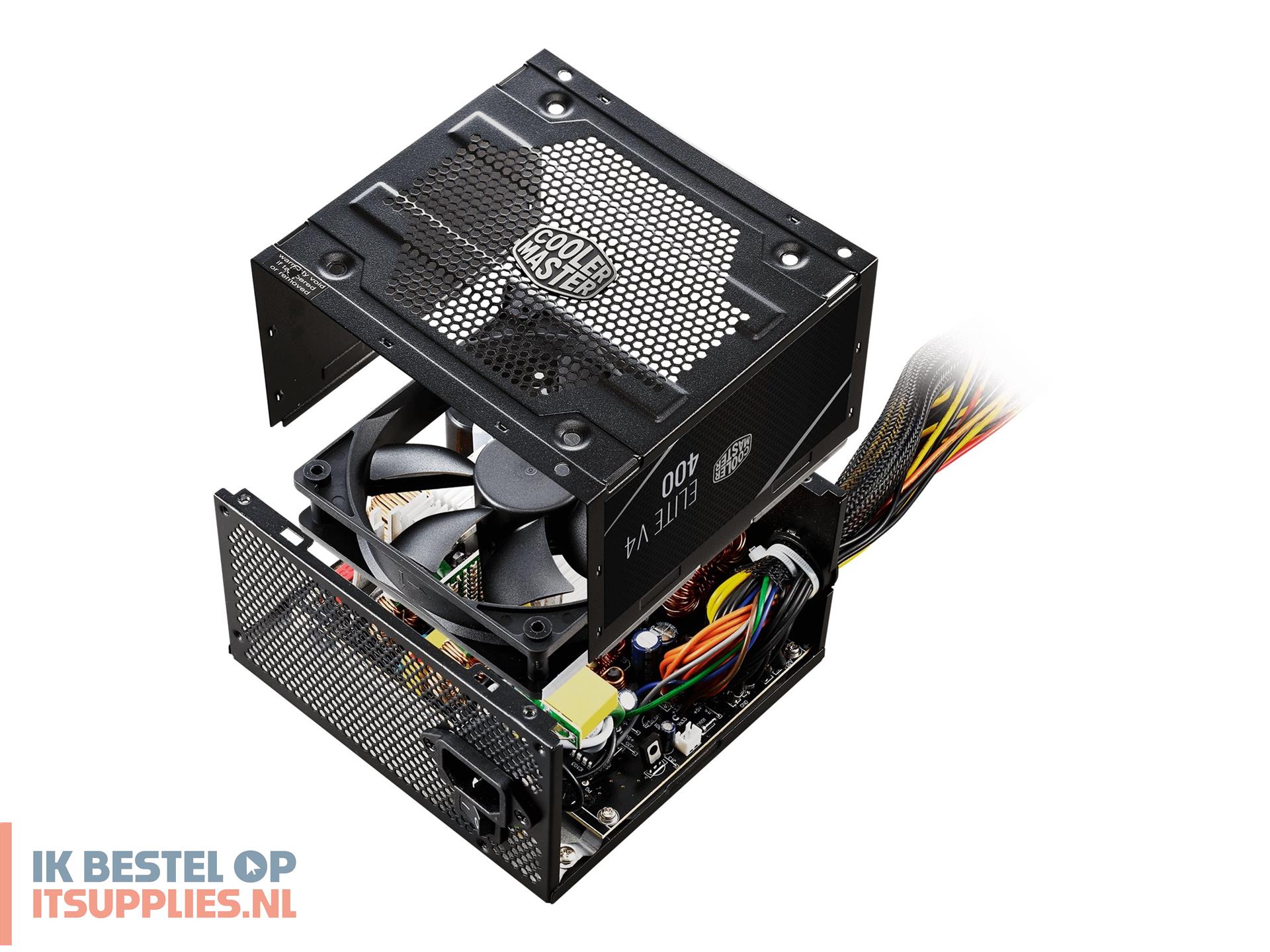

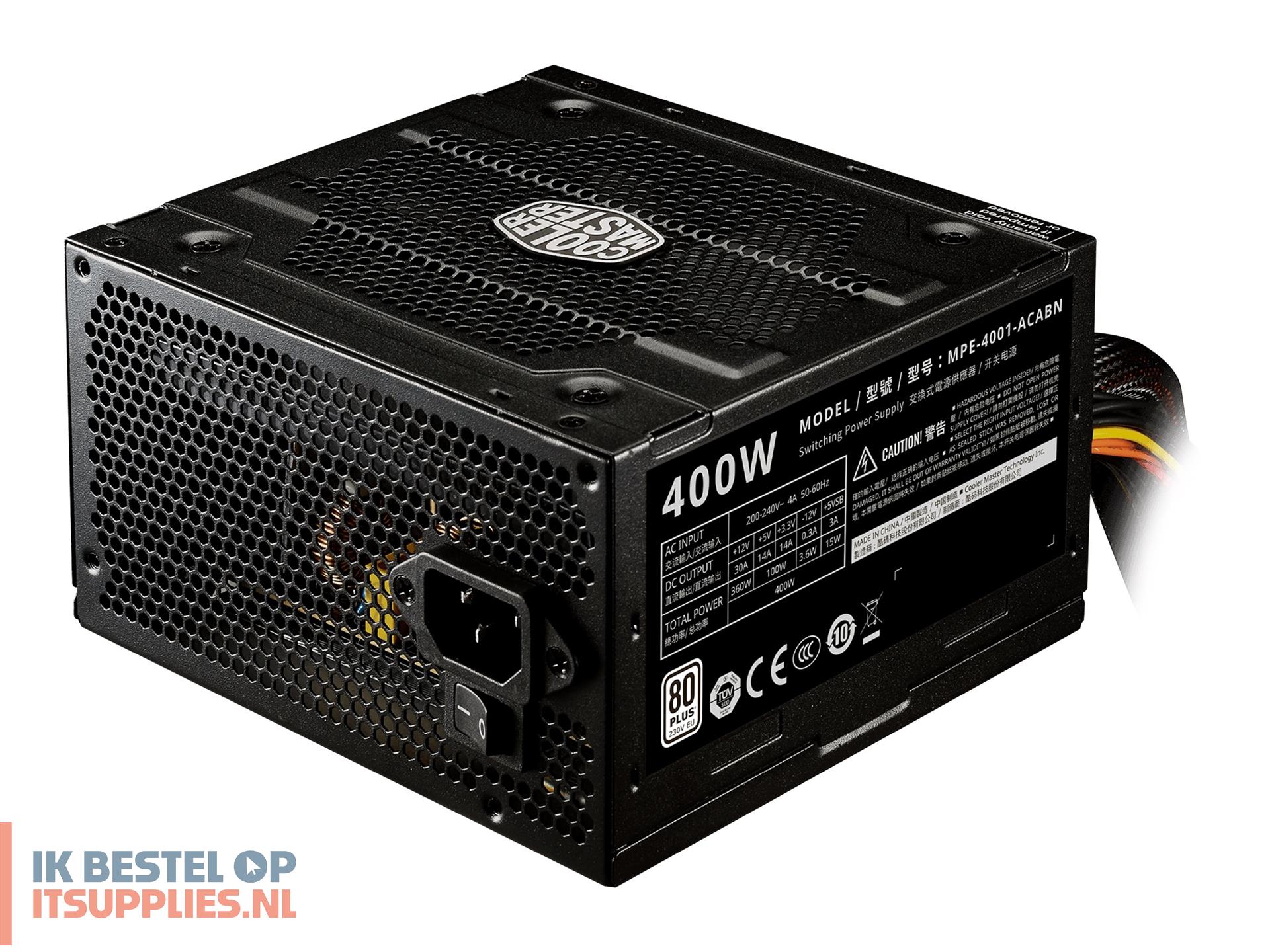

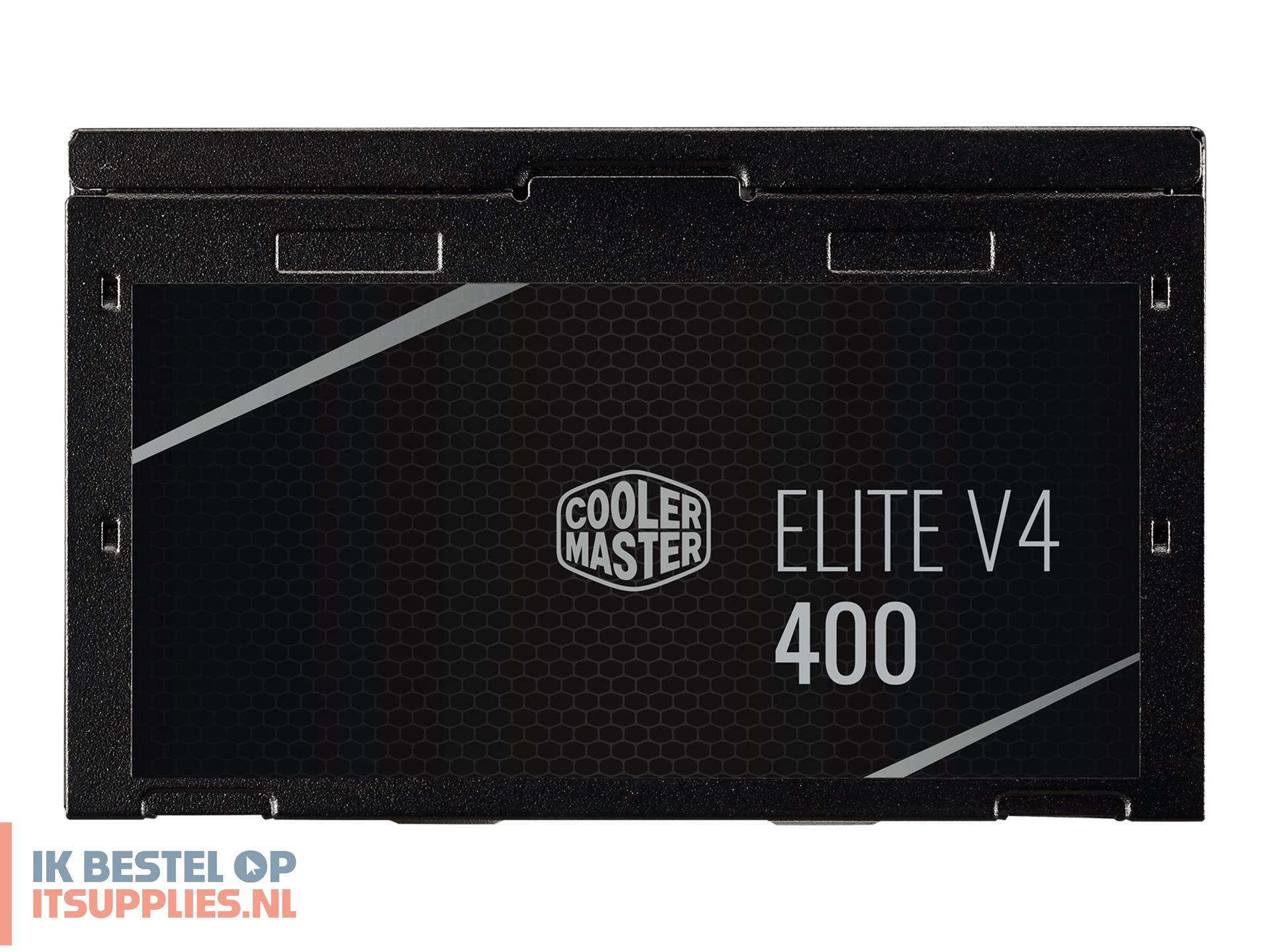

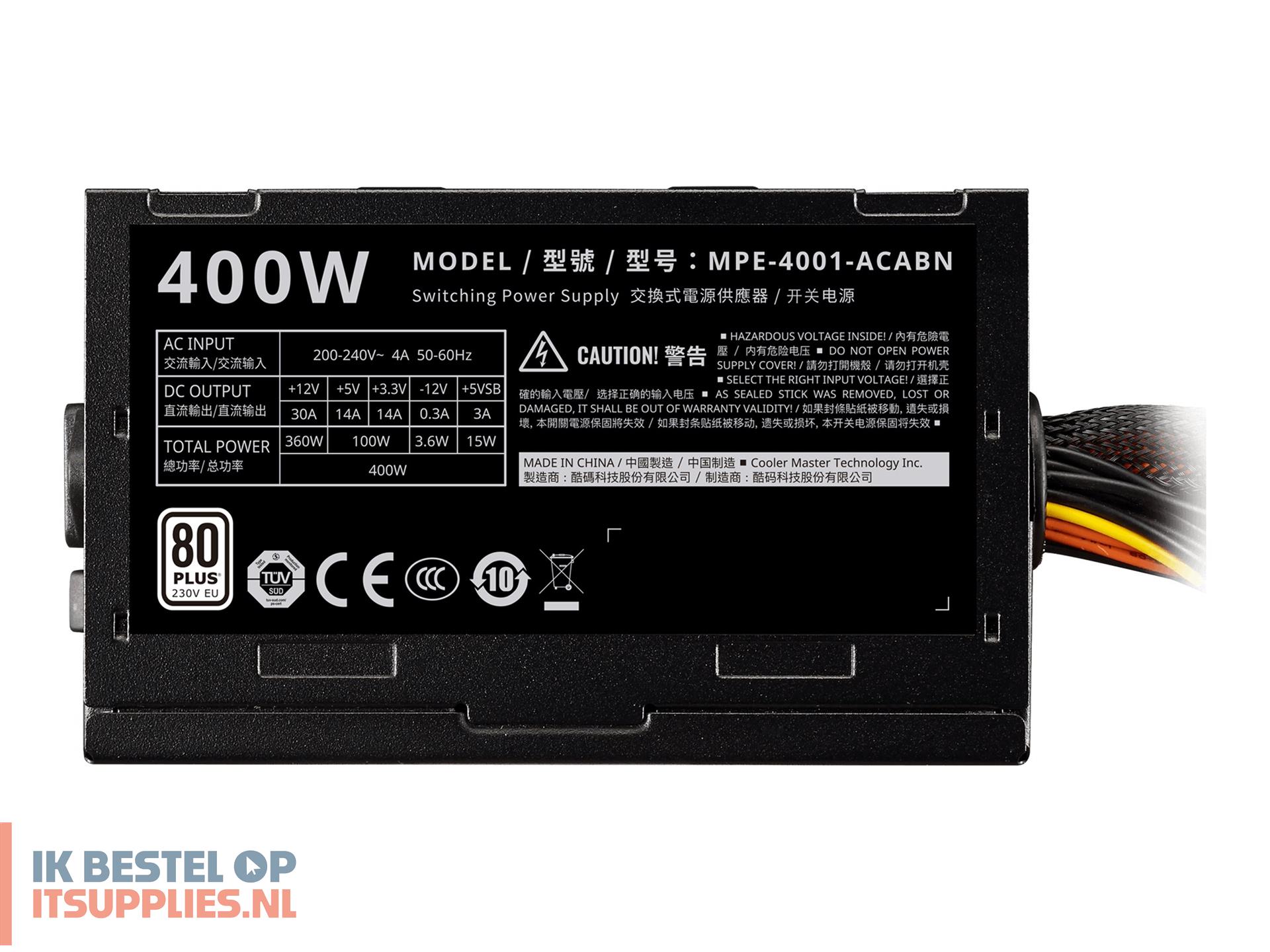

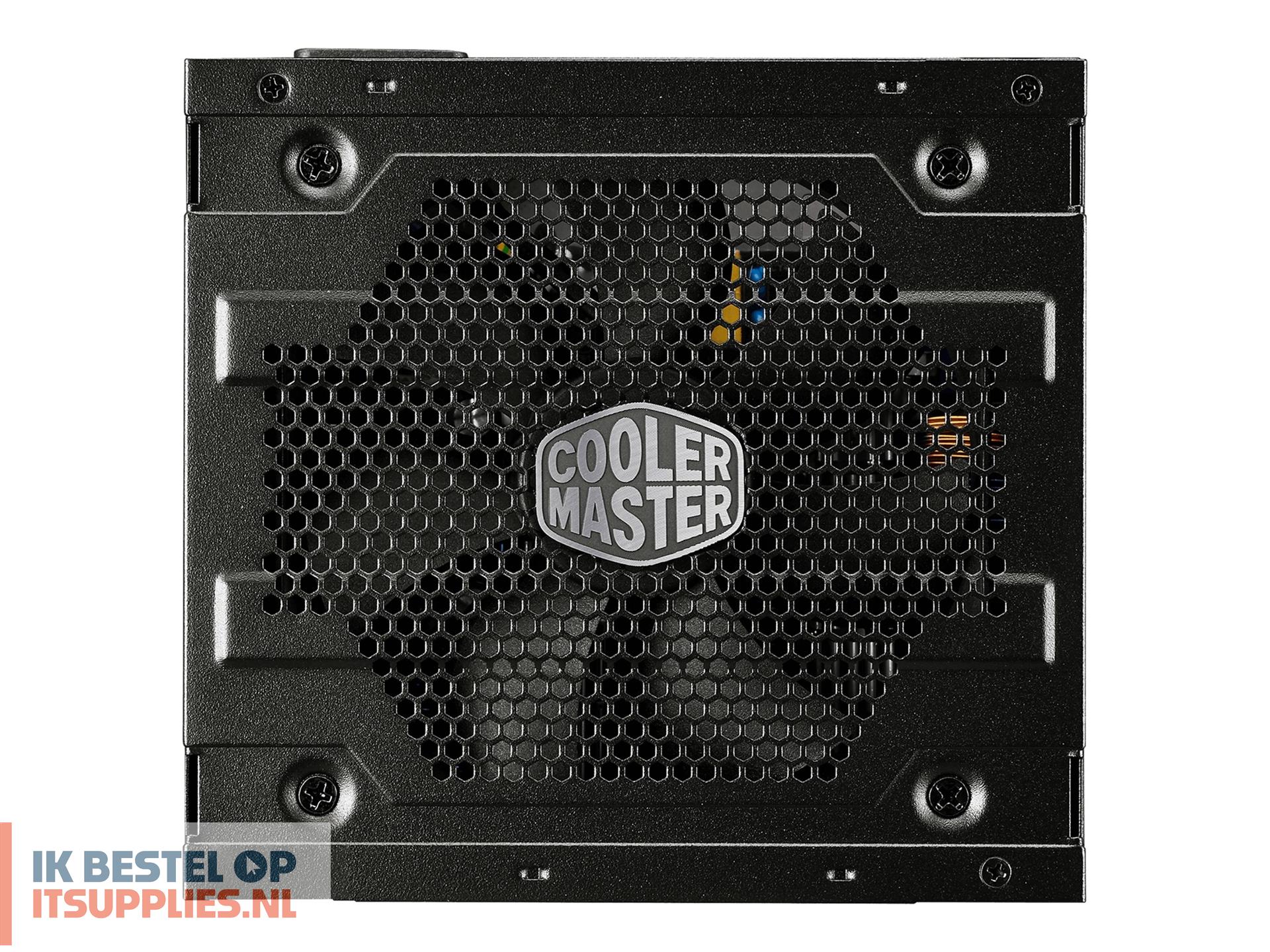

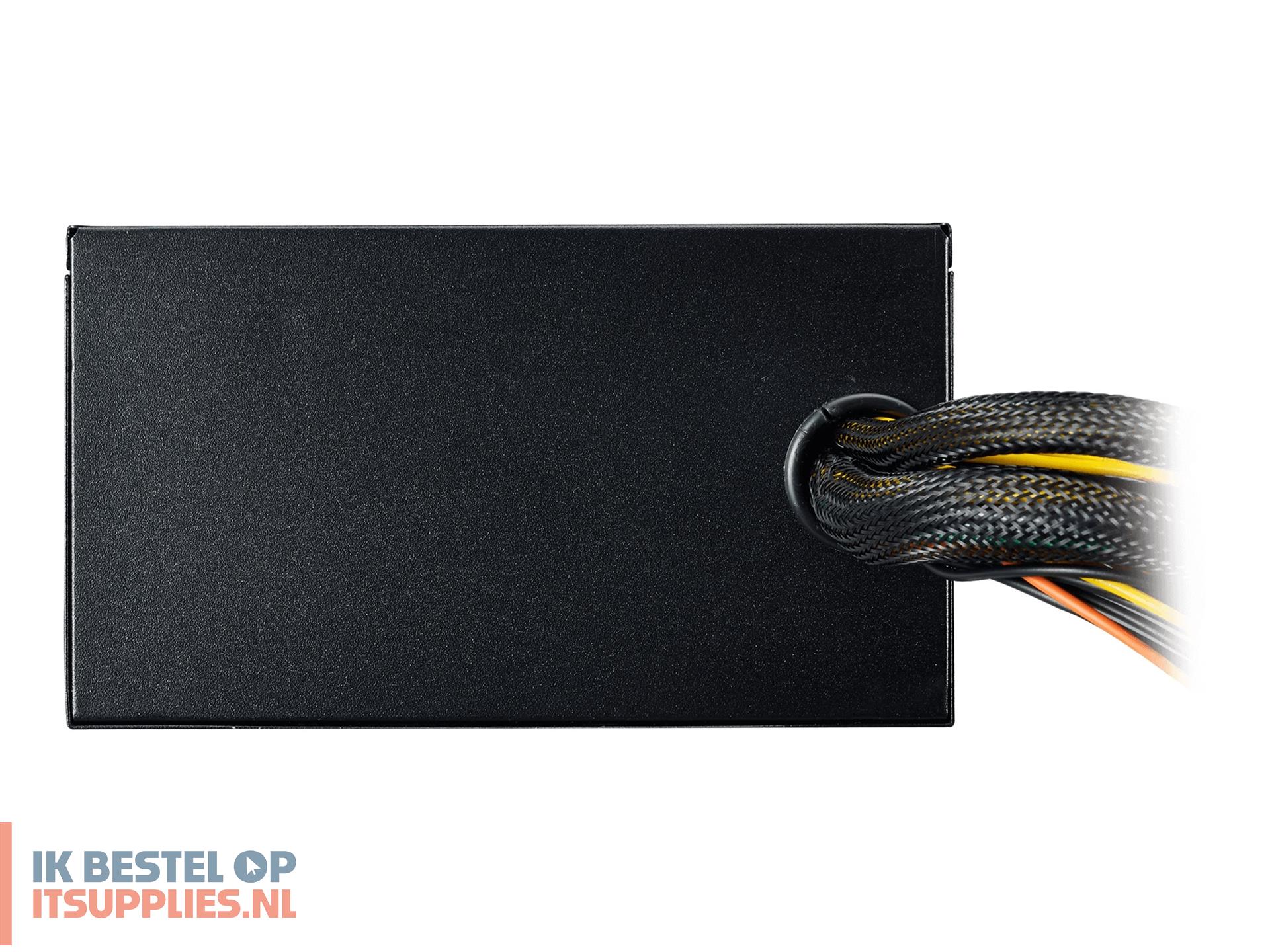

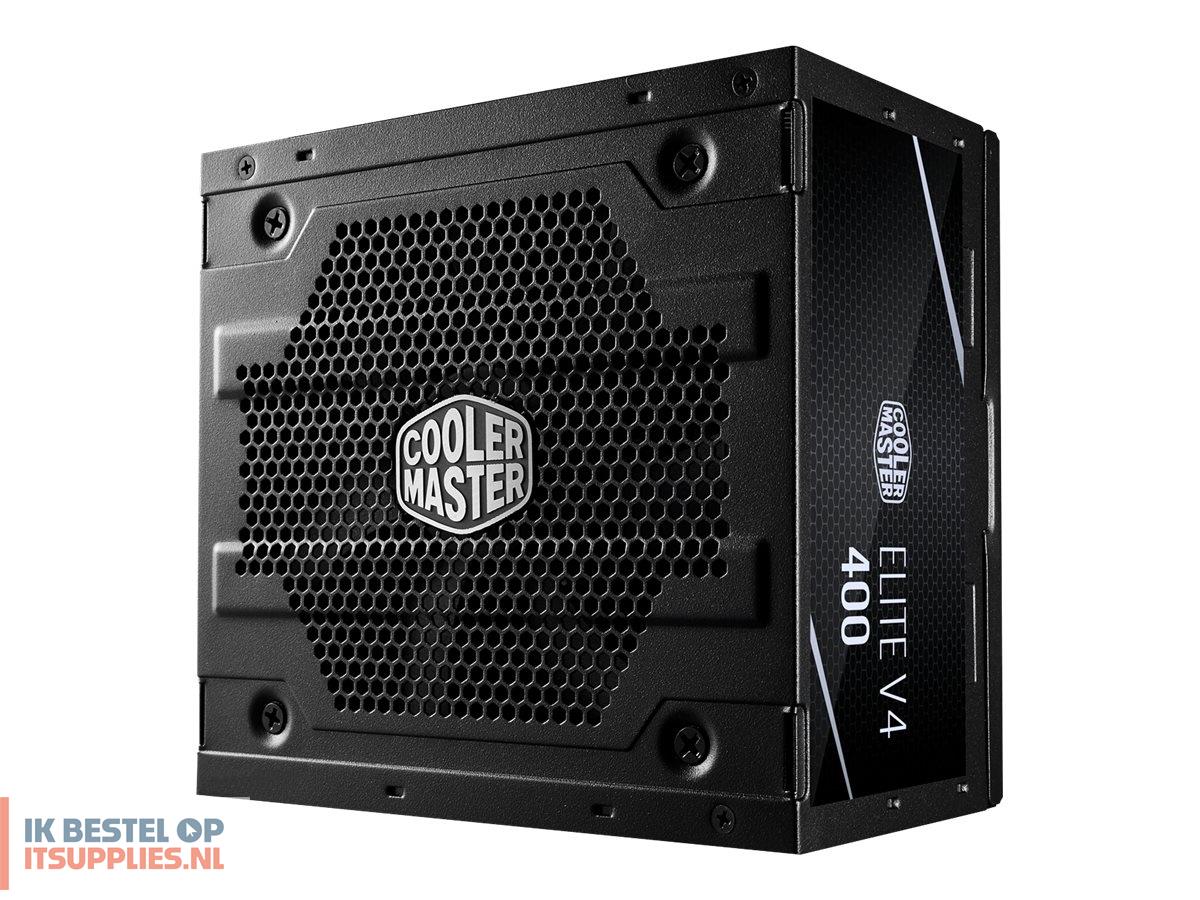

Cooler Master Elite V4 MPE-4001-ACABN

Productcode: MPE-4001-ACABN-EU | EAN/UPC: 4719512084328

€ 74,99 excl.btw

Cooler Master Elite V4 MPE-4001-ACABN - Power supply (internal) - ATX12V 2.41/ EPS12V - 80 PLUS - AC 200-240 V - 400 Watt - active PFC - Europe

Active PFC + Forward Topology design
High temperature resistance
Peak power tolerance
Durable, reliable, and safe

Op voorraad: 20 stuk(s)

Levertijd:

Product:
Cooler Master Elite V4 MPE-4001-ACABN

€ 90,74 incl. 21% btw € 74,99excl. 21% btw

Winkelwagen Offerte

Omschrijving

Cooler Master Elite V4 MPE-4001-ACABN - Power supply (internal) - ATX12V 2.41/ EPS12V - 80 PLUS - AC 200-240 V - 400 Watt - active PFC - Europe

Product features

Active PFC + Forward Topology design
A power supply unit works by taking power directly from the wall or other fixed power source, converting it to the correct output required by the connected components, and then distributing that power to said components. If any part of this process is interrupted or executed poorly, the connected system components and the PSU itself could be damaged. Active PFC uses a circuit to correct power factor leading to reduced total harmonics, corrected AC input voltage, and increased overall efficiency output.
High temperature resistance
The Elite V4 has a maximum operating temperature of 40°C. That's at the level of many 80 Plus certified power supply units on the market today. This higher operating temperature allows you to power your system safely in warmer environments without having to worry about your system overheating or shutting off unexpectedly. The higher heat resistance also reduces temperature based wear, increasing the lifespan of the unit by a noticeable amount.
Peak power tolerance
This power supply unit can push out an additional 50W above maximum load for up to 10 seconds before turning off. This will allow your system a chance to save data and complete current processes in the event of output surge or overloading. While it may not be a feature you'll actively need all the time, it can be extremely useful in an emergency scenario.
Durable, reliable, and safe
The Elite V4 will perform consistently in whatever environment you throw at it whether it's high altitudes above 5000 meters or ultra humid settings like a tropical rain-forest. This unit was designed for work systems meant to be used in extreme conditions with challenging temperatures. Do whatever you need to do wherever you need to do it without letting your hardware limit your goals.

Specificaties

General

Device Type

Power supply - active Power Factor Correction (PFC) - internal

Specification Compliance

ATX12V 2.41/ EPS12V

PSU Form Factor

ATX

Localisation

Europe

Power Device

Input Voltage

AC 200-240 V

Frequency Required

50 - 60 Hz

Power Output Connectors Details

1 x power 24 pin ATX with detachable 4 pin section
1 x power 8 pin EPS12V with detachable 4 pin ATX12V section
3 x 15 pin Serial ATA power
2 x 4 PIN internal power
1 x 8 pin PCI Express power with detachable 2 pin section

Output Voltage

+3.3, +5, ±12 V

Power Capacity

400 Watt

Output Current

+3.3V - 14 A
+5V - 14 A
+12V - 30 A
-12V - 0.3 A
+5VSB - 3 A

Efficiency

85%

80 PLUS Certification

80 PLUS

Miscellaneous

MTBF

100,000 hours

Cooling System

120 mm fan

Features

Overheat protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, sleeve bearing cooling fan, non-modular

Compliant Standards

TUV, BSMI, CB, CCC, FCC, KCC, cTUVus, EAC, RCM, ErP Lot 3 2014 Ready

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight

Width

15 cm

Depth

14 cm

Height

8.6 cm

Dimensions & Weight (Shipping)

Shipping Width

21.3 cm

Shipping Depth

19.5 cm

Shipping Height

9.6 cm

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
