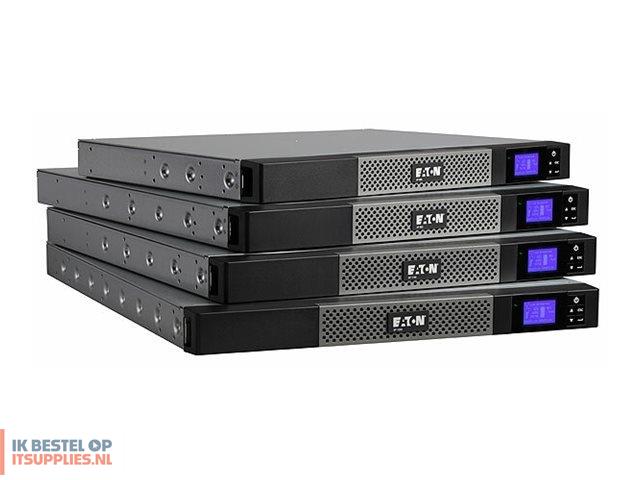

Eaton 5P 1550iR - UPS (rack-mountable)

Productcode: 5P1550IR | EAN/UPC: 0743172042934

€ 1.639,66 excl.btw

Eaton 5P 1550iR - UPS (rack-mountable) - AC 160-290 V - 1100 Watt - 1550 VA - RS-232, USB - output connectors: 6 - 1U

Energy efficient UPS with energy metering
High-density protection for networks : 1U only !
Easy to operate : next-generation multilingual LCD display
Automatic voltage regulation and sinewave output
Remote reboot and runtime optimization thanks to 3 manageable outlets
Monitoring & shutdown software for VMware, Hyper-V, Windows, Linux, …
1 USB port & 1 Serial + contact port for compatibility with existing or future hardware
1 Slot for optional com card (Network, Modbus or Relay)
Secured power connections : cable locking system
Advanced Battery Management (ABM) technology to increase battery lifetime
Hot swappable batteries from front panel
Connector for Remote power off or remote ON/OFF function

Op voorraad: 1 stuk(s)

Levertijd:

Product:
Eaton 5P 1550iR - UPS (rack-mountable)

€ 1983,99 incl. 21% btw € 1639,66excl. 21% btw

Winkelwagen Offerte

Omschrijving

Eaton 5P 1550iR - UPS (rack-mountable) - AC 160-290 V - 1100 Watt - 1550 VA - RS-232, USB - output connectors: 6 - 1U

Product features

Manageability
The graphical LCD display provides clear information on the UPS's status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.
Performance and efficiency
Energy efficient UPS: with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs.
Pure sinewave output
When operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
Adjustable tolerance and sensitivity
Users can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset).
Stronger, longer battery life
Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.

Specificaties

General

Device Type

UPS - rack-mountable

Height (Rack Units)

Power Device

UPS Technology

Line interactive

Input Voltage

AC 160-290 V

Input Voltage Range

AC 150 - 294 V

Frequency Provided

50/60 Hz

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

6 x power IEC 60320 C13

Output Voltage

230 V 50/60 Hz

Max Electric Current

10 A

Power Capacity

1100 Watt / 1550 VA

Output Waveform

Sinewave

Networking

Remote Management Interface

RS-232, USB

Miscellaneous

Features

Advance Battery Management (ABM), LCD display

Compliant Standards

TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2

Manufacturer Warranty

Service & Support

Limited warranty - 3 years
Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Sound Emission

40 dBA

Dimensions & Weight

Width

43.8 cm

Depth

55.4 cm

Height

4.32 cm

Weight

19.4 kg

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
