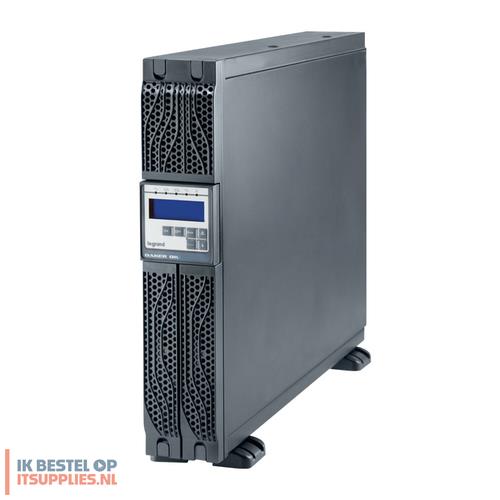

Vaddio DAKER DK Plus 10000 - UPS (rack-mountable / external)

Productcode: 310177 | EAN/UPC: 3414970826992

€ 2.555,19 excl.btw

Legrand DAKER DK Plus 10000 - UPS (rack-mountable / external) - AC 230 V - 10000 Watt - 10000 VA - no battery - RS-232, USB - 3U - 19"

View of the status, system parameters, charging status of the battery and faults
Built-in communication software to control the UPS and stop it in the event of a fault and to perform remote diagnostics of the main functions
Communication through SNMP/internet/network adapter
Optional slot for network configuration
WEB/SNMP boards and relay interface that can provide isolated contacts for applications on industrial control panels or remote alarm panels
Maintenance bypass switch (MTBS)

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Vaddio DAKER DK Plus 10000 - UPS (rack-mountable / external)

€ 3091,78 incl. 21% btw € 2555,19excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Legrand DAKER DK Plus 10000 - UPS (rack-mountable / external) - AC 230 V - 10000 Watt - 10000 VA - no battery - RS-232, USB - 3U - 19"

Specificaties

General

Device Type

UPS - rack-mountable / external

Height (Rack Units)

Rack Size

19"

Power Device

UPS Technology

On-line

Input Voltage

AC 230 V

Input Voltage Range

AC 160 - 288 V

Frequency Provided

50/60 Hz ± 0.1%

Frequency Required

50 - 60 Hz ± 5%

Output Voltage

AC 230 V ± 1% - 50/60 Hz

Power Capacity

10000 Watt / 10000 VA

Output Waveform

Sinewave

Efficiency

94%

Power Factor (PF)

0.99

Total Harmonic Distortion (THD)

3 %

Battery

Type

No battery

Networking

Remote Management Interface

RS-232, USB

Remote Management Protocol

SNMP

Expansion / Connectivity

Interfaces

1 x management (RS-232) ¦ 1 x management (USB)

Miscellaneous

Compliant Standards

IP21, EN 62040-2, EN 62040-3, EN 62040-1

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 80% (non-condensing)

Sound Emission

50 dBA

Dimensions & Weight

Width

13.2 cm

Depth

68 cm

Height

44 cm

Weight

22.8 kg

Dimensions & Weight (Shipping)

Shipping Weight

26 kg

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Manufacturer's data sheet
