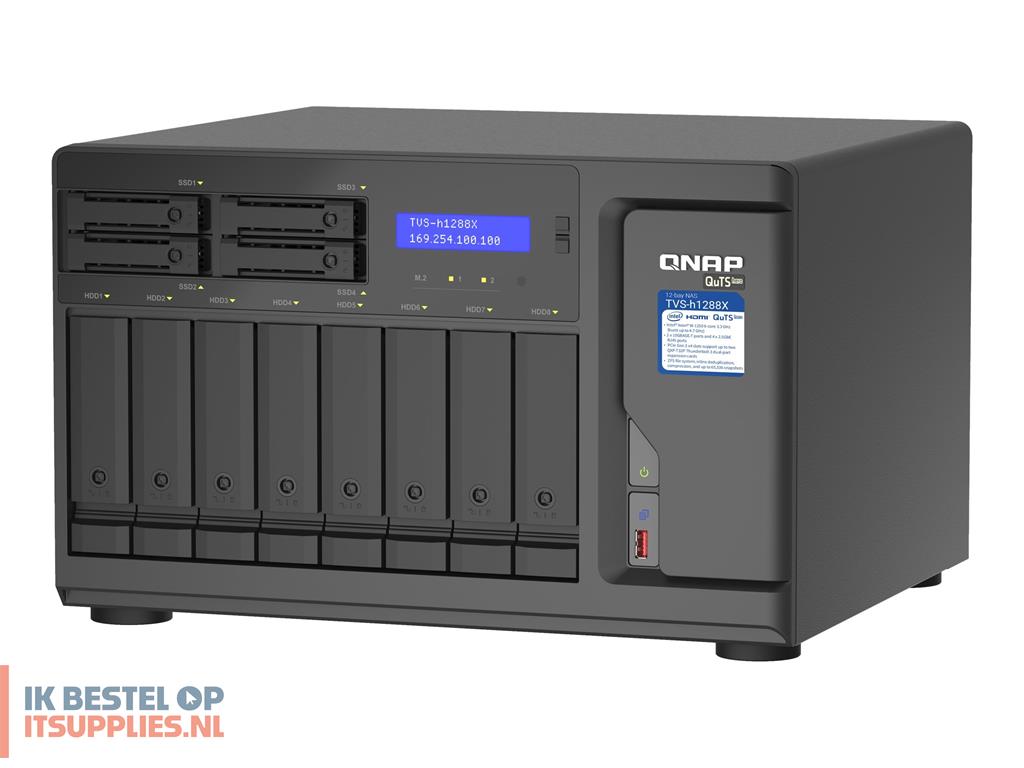

QNAP TVS-h1288X - NAS server - 12 bays

Productcode: TVS-H1288X-W1250-16G | EAN/UPC: 4713213518410

€ 2.994,27 excl.btw

QNAP TVS-h1288X - NAS server - 12 bays - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 5 hot spare, 6 hot spare, 60, 10 hot spare, RAID TP - RAM 16 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support

Two 10GBASE-T and four 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer
PCIe slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or graphics cards to increase application performance
4K media playback and real-time transcoding; directly output videos to an HDMI display (up to 4K @30Hz)
Supports virtual machines and containerized apps, centralized storage, backup, sharing, disaster recovery, and storage expansion
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud

Op voorraad: 1 stuk(s)

Levertijd:

Product:
QNAP TVS-h1288X - NAS server - 12 bays

€ 3623,07 incl. 21% btw € 2994,27excl. 21% btw

Winkelwagen Offerte

Omschrijving

Product features

Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memory
Intel Xeon W processors are designed for a wide range of creative professionals. Powered by an Intel Xeon W-1250 6 cores/12 threads 3.3GHz processor (Burst up to 4.7 GHz), the TVS-h1288X has enormous processing power to drive virtual machine performance. The integrated Intel AES-NI encryption engine boosts encryption performance while also maintaining the security of NAS data. With dual-channel modules and four Long-DIMM slots, the TVS-h1288X's DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.
Thunderbolt 3 + 10Gb Ethernet: perfect for studios and post-production houses
The TVS-h1288X can simultaneously run general Ethernet services with the built-in 10GBASE-T LAN card in addition to the Thunderbolt 3 network, completely independently and with no bandwidth interference. The media resources in the TVS-h1288X can be easily accessed by Thunderbolt and Ethernet workstations for different concurrent tasks with increased productivity.
Dual 10GbE connectivity optimizes high-speed data transfer and supports RDMA/RoCE
The TVS-h1288X comes with a pre-installed dual-port 10GBASE-T network card (supports 10GbE/1GbE), supporting failover and up to 20Gb/s bandwidth under Port Trunking, to improve bandwidth-demanding data center and virtualization applications. The 10GbE SmartNIC uses a Broadcom NetXtreme E-Series BCM57416 network controller that supports RDMA over Converged Ethernet (RoCE and RoCEv2), allowing data to bypass general network drivers, the socket layer, and directly enter the ESXi server and storage memory buffer. RoCE technology can improve NAS performance while lowering the CPU usage of applications that use Ethernet networks, ideal for low-latency and high-speed large data transfers.
Set SSD caching to boost IOPS with M.2 NVMe SSD
The TVS-h1288X comes with four 2.5-inch SATA 6Gb/s drive bays for SSDs and two M.2 NVMe Gen 3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance, reduce storage volume latency, and optimize 2.5GbE/10GbE performance. This is especially perfect for databases and virtual machine applications. With dedicated SSD bays/slots, the TVS-h1288X allows you to dedicate all of the 3.5-inch drive bays for high-capacity hard drives, ensuring both maximized storage capacity and performance.

Specificaties

General

Device Type

NAS server

Host Connectivity

Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet

Total Storage Capacity

0 GB

Installed Devices / Modules Qty

0 (installed) / 12 (max)

Width

36.99 cm

Depth

31.98 cm

Height

23.46 cm

Weight

11.27 kg ()

Processor / Memory

Processors Installed

1 x Intel Xeon W-1250 3.3 GHz

Number of Cores

6-core

Max Supported Qty

Max Turbo Speed

4.7 GHz

RAM

16 GB (installed) / 128 GB (supported) - DDR4

Features

ECC

Flash Memory Installed

5 GB

Storage Controller

Type

RAID

Interface Type

SATA 6Gb/s

RAID Level

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 60, RAID 10 hot spare, RAID TP

Networking

Data Link Protocol

10GbE, 2.5GbE, 100Mb LAN, 1GbE

Network / Transport Protocol

TCP/IP, Telnet

Remote Management Protocol

SNMP 2, SNMP 3

Network Services Compatibility

Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP)

Features

ALERT notification, LDAP support, VLAN support, wake on LAN (WOL), Syslog support, Access Control List (ACL) support, iTunes server, Jumbo Frames support, DLNA Media Server, Apple Time Machine compatible, VPN Server, Apple AirPlay, anti-virus protection, Link Aggregation, Google Drive support, Chromecast support, port trunking, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, Qsirch, deduplication (volume and LUN), snapshot (folder and LUN), compression (volume and LUN), built-in hardware transcoding

Encryption Algorithm

AES-NI

Compliant Standards

UPnP

Expansion / Connectivity

Expansion Bays

8 (total) / 8 (free) x hot-swap - 3.5"
4 (total) / 4 (free) x hot-swap - 2.5"

Expansion Slots

2 (total) / 2 (free) x PCI Express 3.0 x4
2 (total) / 2 (free) x M.2 22110/2280
4 (total) / 2 (free) x DIMM 288-pin
1 (total) / 1 (free) x PCI Express 3.0 x8

Interfaces

2 x Ethernet 10Gb - RJ-45
4 x 2.5 Gigabit Ethernet - RJ-45
2 x USB 3.2 Gen 2 - Type C
3 x USB 3.2 Gen 2 - Type A
1 x HDMI output

Miscellaneous

Cables Included

1 x 10GBase-T cable

Features

Built-in cooling fan, security lock slot (cable lock sold separately)

Security Slot Type

Kensington security slot

Included Accessories

24 x flat head screws (for 3.5" HDD), 24 x flat head screws (for 2.5" HDD), 2 x M.2 SSD heatsink, 2 x hard drive security key, power cable

Power

Power Device

Internal power supply

Installed Qty

Max Supported Qty

Voltage Required

AC 120/230 V

Power Consumption Operational

97.492 Watt

Power Provided

550 Watt

Software / System Requirements

Storage Operating System

QNAP QuTS hero 4.5.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Weight

14.95 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

5 - 95% (non-condensing)

Sound Emission

26 dBA

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Manufacturer's data sheet
