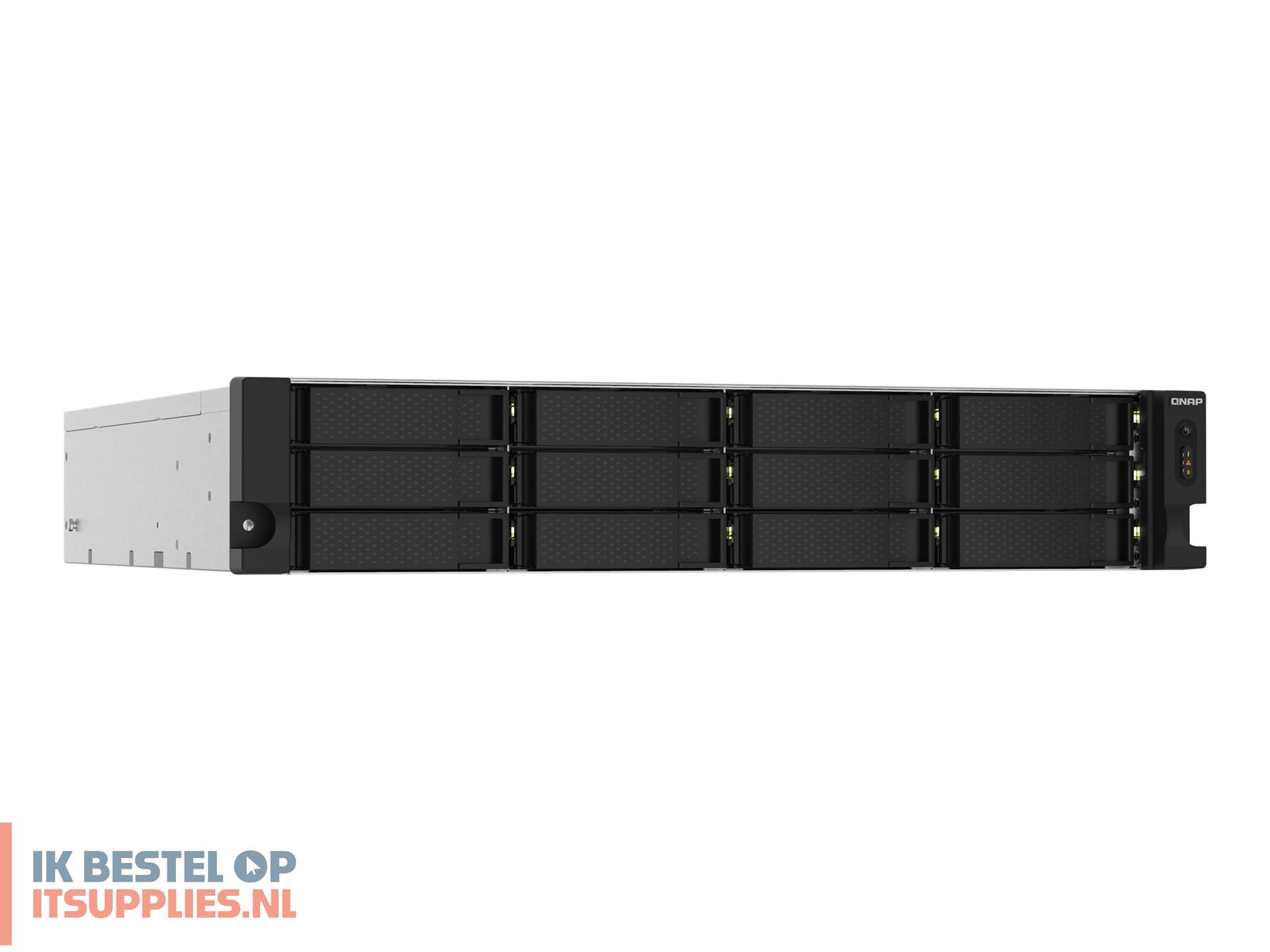

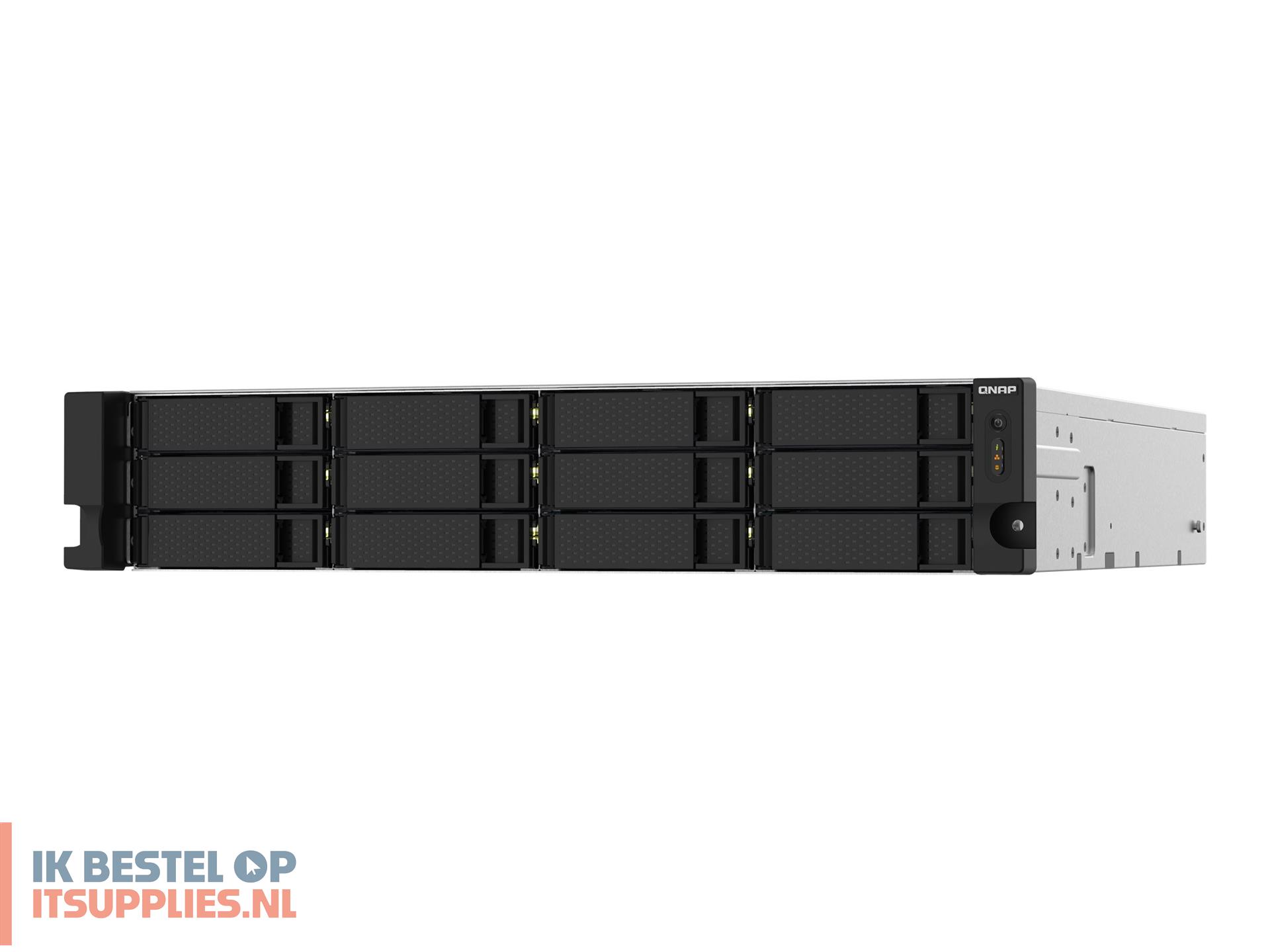

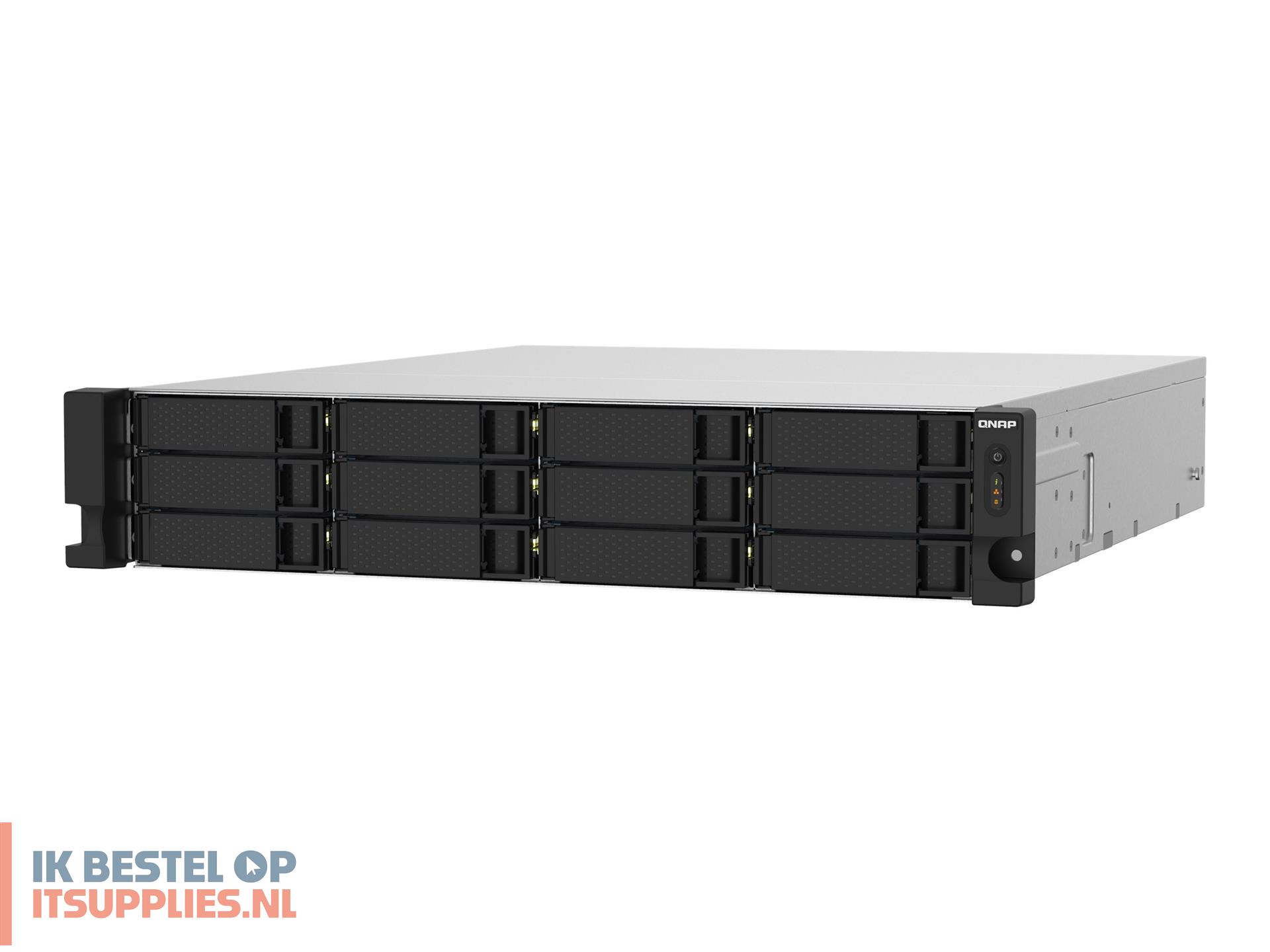

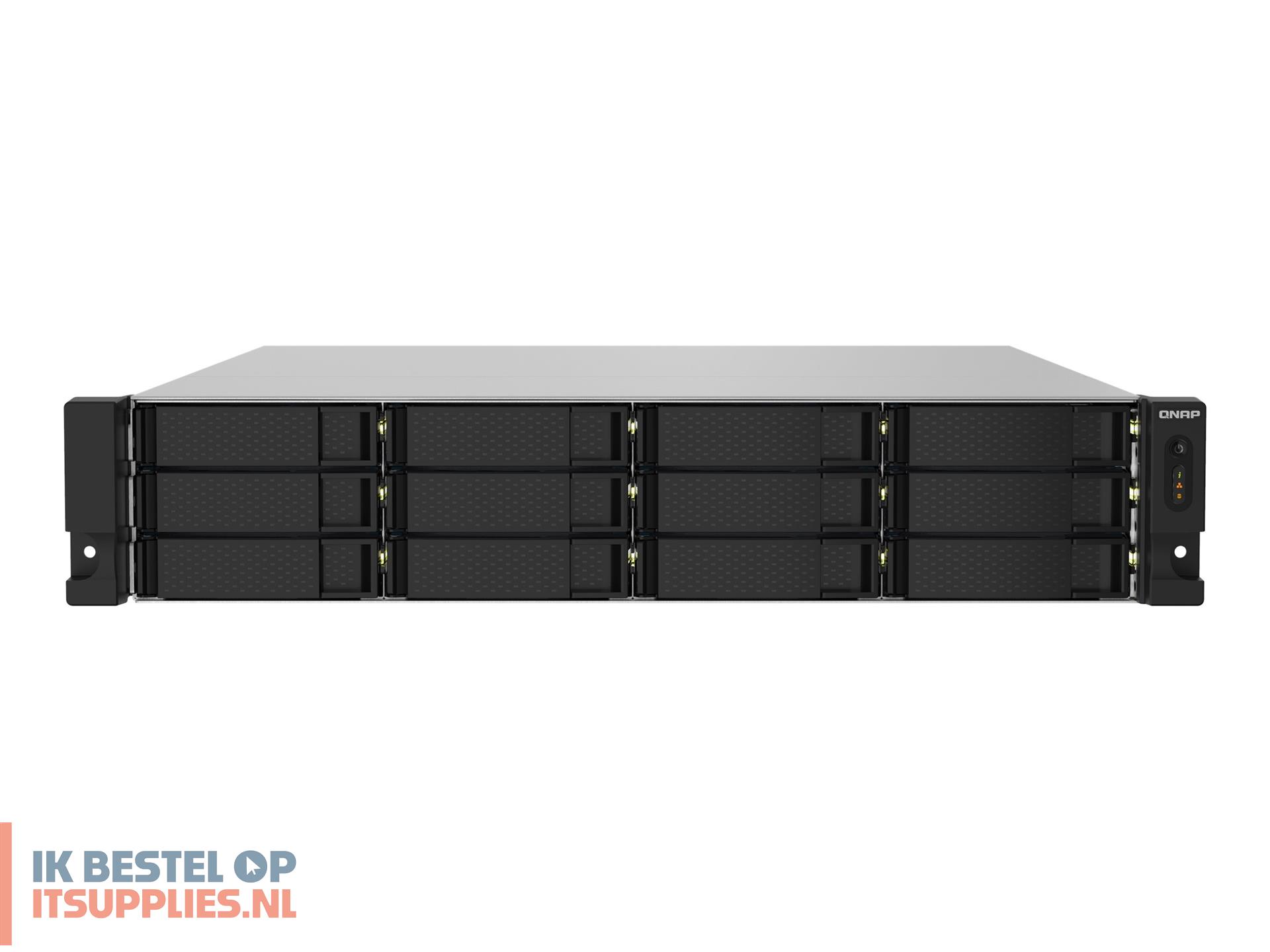

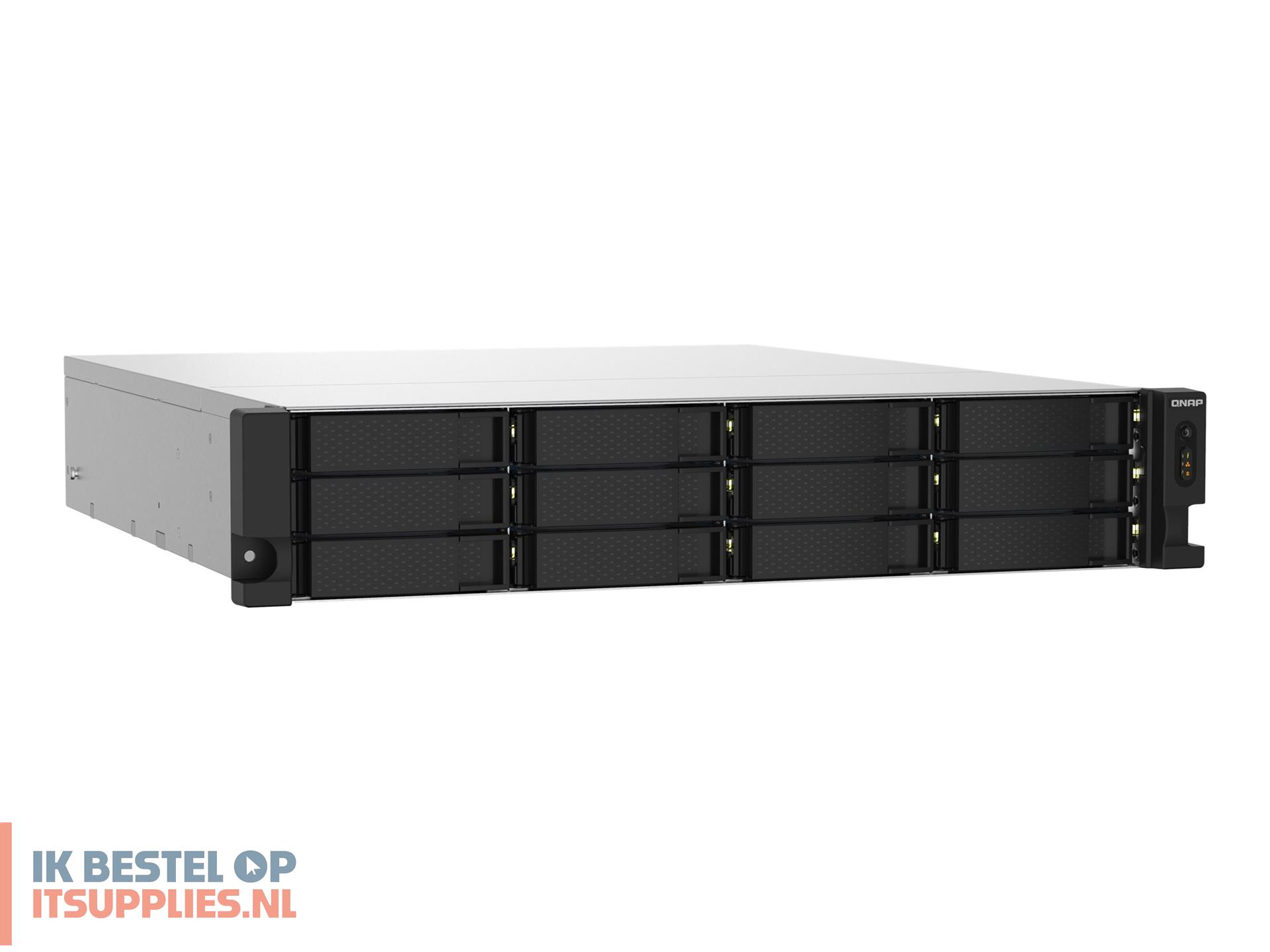

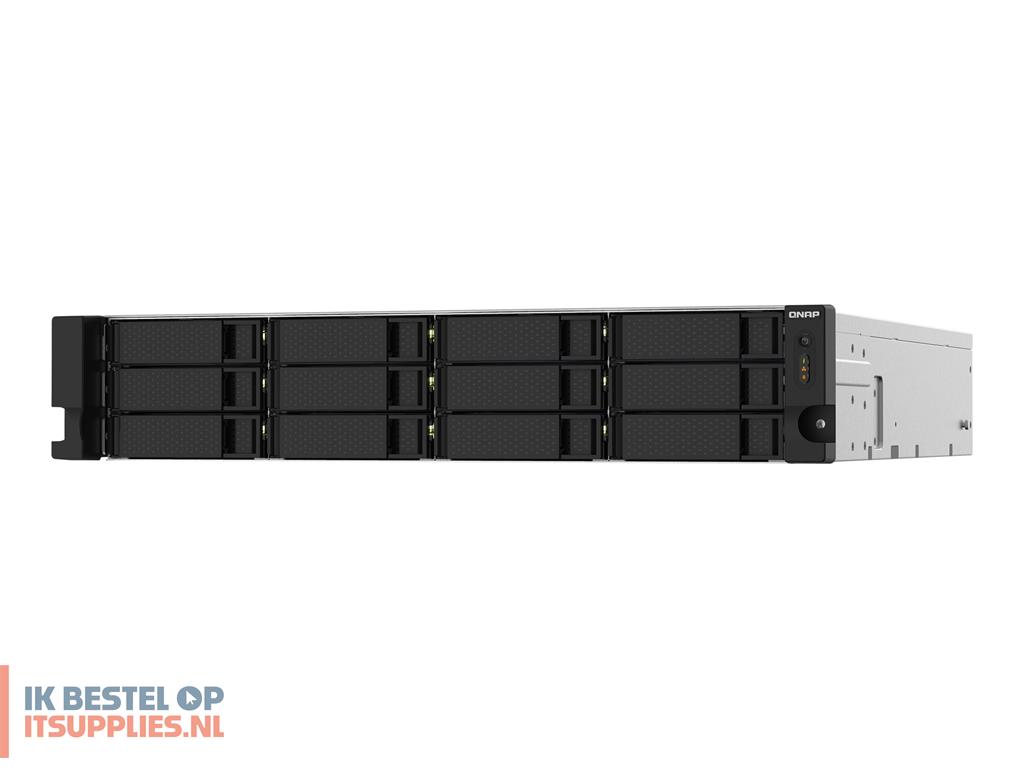

QNAP TS-1232PXU-RP - NAS server

Productcode: TS-1232PXU-RP-4G | EAN/UPC: 4713213518120

€ 1.605,98 excl.btw

QNAP TS-1232PXU-RP - NAS server - 12 bays - rack-mountable - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, 50, 60, JBOD - RAM 4 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 2U

Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing
HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning
Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google G Suite and Microsoft 365
Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
Expand the application potential of the TS-1232PXU-RP by installing a compatible PCIe card
Increase the storage capacity of the TS-1232PXU-RP with QNAP TR RAID expansion enclosures or TL JBOD

Op voorraad: 2 stuk(s)

Levertijd:

Product:
QNAP TS-1232PXU-RP - NAS server

€ 1943,24 incl. 21% btw € 1605,98excl. 21% btw

Winkelwagen Offerte

Omschrijving

Product features

Higher performance x faster throughput
The TS-1232PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM Cortex -A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-1232PXU-RP provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.
Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows / Linux devices, allowing all of your workstations to take advantage of high-speed networks.
Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-1232PXU-RP supports SSD cache technology, Qtier auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-1232PXU-RP into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-1232PXU-RP will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
Easily find and automatically organize files and photos
The TS-1232PXU-RP provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.
Secure Google G Suite and Microsoft 365 backup
The convenience of Software as a Service (SaaS) solutions such as Google G Suite and Microsoft 365 has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-1232PXU-RP includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google G Suite and Microsoft 365 to provide an extra layer of data protection for business cloud data.

Specificaties

General

Device Type

NAS server

Host Connectivity

Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet

Enclosure Type

Rack-mountable - 2U

Total Storage Capacity

0 GB

Installed Devices / Modules Qty

0 (installed) / 12 (max)

Width

48.2 cm

Depth

53.4 cm

Height

8.9 cm

Weight

11.34 kg ()

Built-in Devices

Led panel

Processor / Memory

Processors Installed

1 x Annapurna Labs Alpine AL-324 1.7 GHz

Number of Cores

Quad-Core

Max Supported Qty

RAM

4 GB (installed) / 16 GB (supported) - DDR4

Flash Memory Installed

512 MB

Storage Controller

Type

RAID

Interface Type

SATA 6Gb/s

RAID Level

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD

Networking

Data Link Protocol

100Mb LAN, 1GbE, 2.5GbE, 10GbE

Network / Transport Protocol

TCP/IP, IPv4, IPv6, DHCP, DDNS, HTTP, HTTPs, FTP, iSCSI, SMTP, SMB, NFS, PPTP, L2TP, IPSec, SFTP, RTSP

Remote Management Protocol

HTTP, HTTPS, SSH, Telnet, SMTP, SNMP 2, SNMP 3, TFTP, SFTP

Network Services Compatibility

DHCP, DDNS, HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), FTP, Server Message Block (SMB), Microsoft CIFS, Apple File Protocol (AFP), Microsoft Active Directory (AD), Network File System v3 (NFS v3), Network File System v4 (NFS v4), File Level Security (ACLs), FTPS, SFTP

Features

Hardware encryption, Jumbo Frames support, reset button, port trunking, Link Aggregation, load balancing, failover protection, DHCP client, DHCP server, Wi-Fi USB dongle support, Spanning Tree Protocol (STP) support, NAT support, static routing, web server, snapshot (folder and LUN), iSCSI LUN clone/snapshot, VJBOD Cloud, SMS alert, wake on LAN (WOL), LDAP support, myQNAPcloud, Qsync, backup server, file sharing, Access Control List (ACL) support, manageable, firmware upgradable, FTP server, FXP support, Google Drive support, Dropbox support, Microsoft OneDrive support, HiDrive support, Amazon Cloud Drive support, Yandex Disk support, Qfiling, hybrid backup sync, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, OpenStack Swift-compatible, Alibaba Cloud OSS support, Backblaze B2 support, hubiC support, RTRR server, RTRR client, IPv4 and IPv6 dual stack, Rsync compatible, scheduler, Apple Time Machine compatible, QuMagie, Photo album server, Qsirch, surveillance station, VPN Server, VPN client, OpenVPN client, OpenVPN server, PPTP server, DLNA Media Server, Q'center (NAS CMS), Qfinder Pro, Chromecast support, download client, bandwidth control, Qcontactz, IFTTT agent, Qmiix agent, cloud backup, anti-malware protection, BitTorrent Client, UPnP Media Server, Syslog support, E-mail alert, event log, push notification, Network Access Protection (NAP), ONVIF support

Encryption Algorithm

TLS 1.0, TLS 1.1, TLS 1.2, FIPS 140-2, 256-bit AES, SSL

Compliant Standards

UPnP

Security DVR

IP Cameras Supported

Expansion / Connectivity

Expansion Bays

12 (total) / 12 (free) x hot-swap - 2.5" / 3.5"

Expansion Slots

1 (total) / 1 (free) x PCI Express 2.0 x2
1 (total) / 0 (free) x DIMM 288-pin

Interfaces

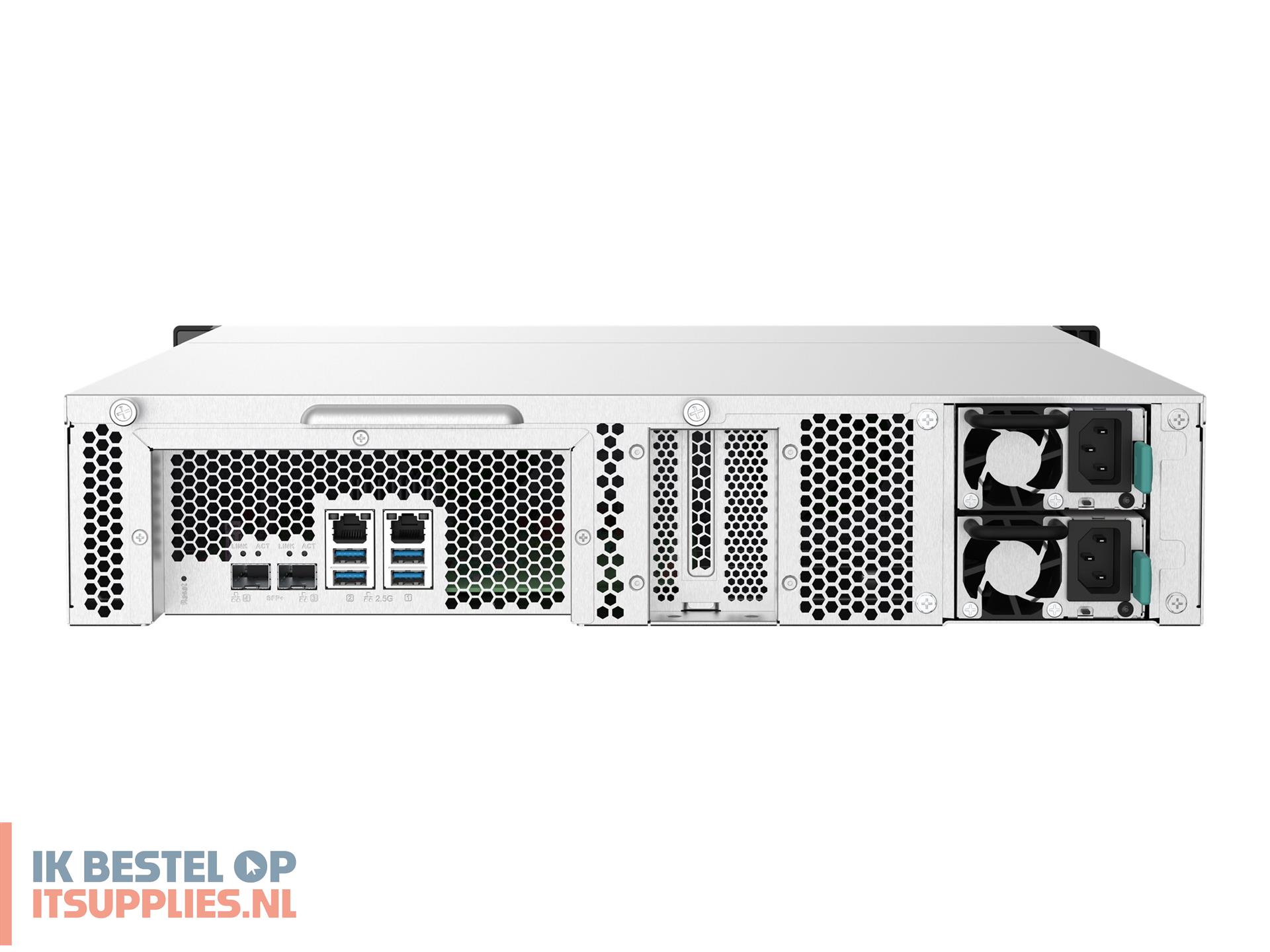

2 x 2.5 Gigabit Ethernet - RJ-45
4 x USB 3.2 Gen 1 - Type A
2 x Ethernet 10Gb - SFP+

Miscellaneous

Cables Included

1 x network cable

Features

Dual boot, built-in 2 cooling fans, audible alarm, Online RAID Level Migration (RLM), S.M.A.R.T. support, scheduled power on/off, wake on LAN

Compliant Standards

FIPS 140-2

Included Accessories

36 x flat head screws (for 2.5" HDD), 48 x flat head screws (for 3.5" HDD), 2 x power cables

Power

Power Device

Internal power supply

Installed Qty

Max Supported Qty

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Voltage Required

AC 120/230 V

Power Provided

250 Watt

Software / System Requirements

Storage Operating System

QNAP QTS 4.4.3

OS Required

Apple MacOS X 10.10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, SunSoft Solaris 10 or higher, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019

Dimensions & Weight (Shipping)

Shipping Weight

17.27 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

5 - 95% (non-condensing)

Sound Emission

32.2 dBA

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
