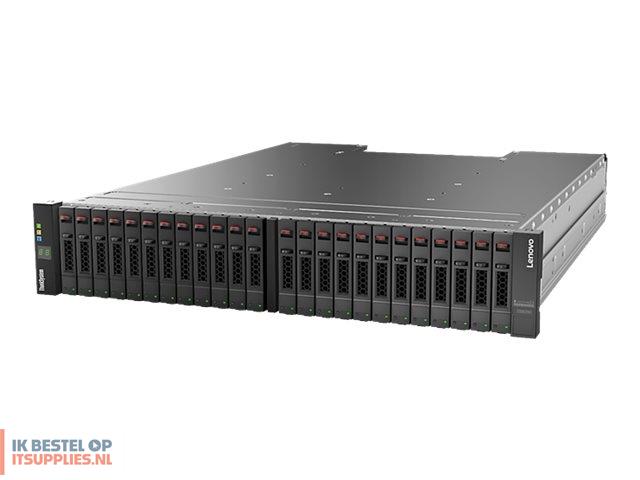

Lenovo ThinkSystem DS4200 SFF SAS Dual Controller Unit

Productcode: 4617A21 | EAN/UPC: 0889488455393

€ 7.642,24 excl.btw

Lenovo ThinkSystem DS4200 SFF SAS Dual Controller Unit - Hard drive array - 24 bays (SAS-3) - SAS 12Gb/s (external) - rack-mountable - 2U

High availability and performance
Flexible host connectivity
Rich set of functions

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Lenovo ThinkSystem DS4200 SFF SAS Dual Controller Unit

€ 9247,11 incl. 21% btw € 7642,24excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Lenovo ThinkSystem DS4200 SFF SAS Dual Controller Unit - Hard drive array - 24 bays (SAS-3) - SAS 12Gb/s (external) - rack-mountable - 2U

Specificaties

General

Device Type

Hard drive array

Enclosure Type

Rack-mountable - 2U

Localisation

English / Worldwide (excluding China, Japan)

Chassis

Supported Devices / Modules Qty

Supported Drives

SAS-3

Storage

HDD Array External Interface

SAS 12Gb/s

Host Channels

Storage Controller

Type

RAID

Installed Qty

Interface Type

SAS 12Gb/s

Cache / Buffer Size (Max)

8 GB

RAID Level

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

Storage Controller (2nd)

Installed Qty

Hard Drive

Type

No HDD

Expansion / Connectivity

Expansion Bays

24 (total) / 24 (free) x hot-swap - 2.5" SFF

Interfaces

8 x SAS 12Gb/s (output) - 36 pin 4x Mini SAS HD (SFF-8644)
2 x serial - mini-USB Type B
2 x management - RJ-45
2 x SAS 12Gb/s (input) - 36 pin 4x Mini SAS HD (SFF-8644)

Miscellaneous

Cables Included

1 x USB cable

Compliant Standards

BSMI CNS 13438 Class A, ICES-003, EN55024, CCC, RoHS, EN 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, EAC, NMB-3 Class A, GB 4943.1, RCM, MSIP, NOM-019, UL/CSA60950-1, CNS 14336-1, EN 55032 Class A

Included Accessories

Rack mounting kit

Environmental Standards

ENERGY STAR Certified

Yes

Power

Power Device

2 x internal power supply - hot-plug

Max Supported Qty

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Voltage Required

AC 120/230 V - 50/60 Hz

Power Provided

580 Watt

Dimensions & Weight

Width

44.3 cm

Depth

63 cm

Height

8.8 cm

Weight

30 kg

Manufacturer Warranty

Service & Support

Limited warranty - 3 years - on-site

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

35 °C

Humidity Range Operating

20 - 80% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
