General
Device Type

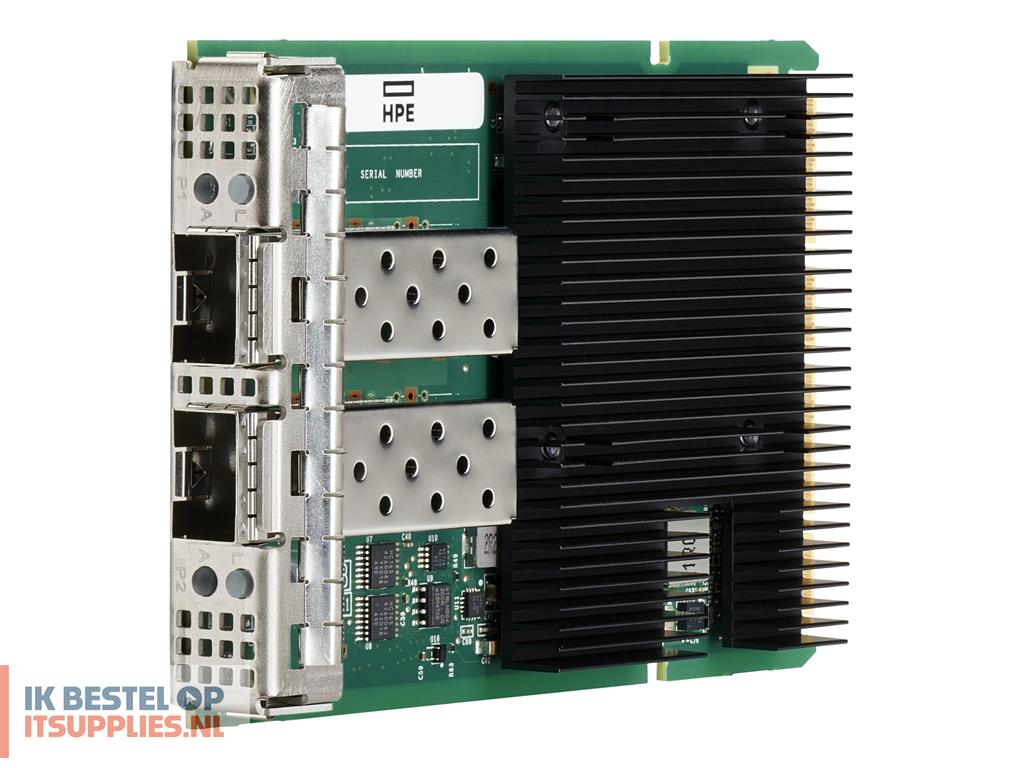

Network adapter
Interface (Bus) Type
Open Compute Project mezzanine (OCP) 3.0
Networking
Connectivity Technology
Wired
Data Link Protocol
Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate
10 Gbps
Network / Transport Protocol
TCP/IP, UDP/IP, iSCSI, SMB
Status Indicators
Port transmission speed, link/activity
Features
Flow control, wake on LAN (WOL), packet filtering, IPv6 support, TCP/IP offloading, IPv4 support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), checksum offload support, UDP/IP offloading, iSCSI boot, Network Virtualization using Generic Routing Encapsulation (NVGRE), Data Plane Development Kit (DPDK), tunnel offload, GENEVE support, VMQueue
Processor / Memory
Processor
1 x Intel X710-BM2
Expansion / Connectivity
Interfaces
2 x 1Gb Ethernet/10Gb Ethernet - SFP+
Power
Power Consumption Operational
2.9 Watt
Compatibility Information
Designed For
HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus ¦ HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka BAse Tracking, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL365 Gen10 Plus, DL385 Gen10 Plus, DL385 Gen10 Plus Entry, DX360 Gen10 Plus, XL645d Gen10 Plus
