General
Product Form Factor

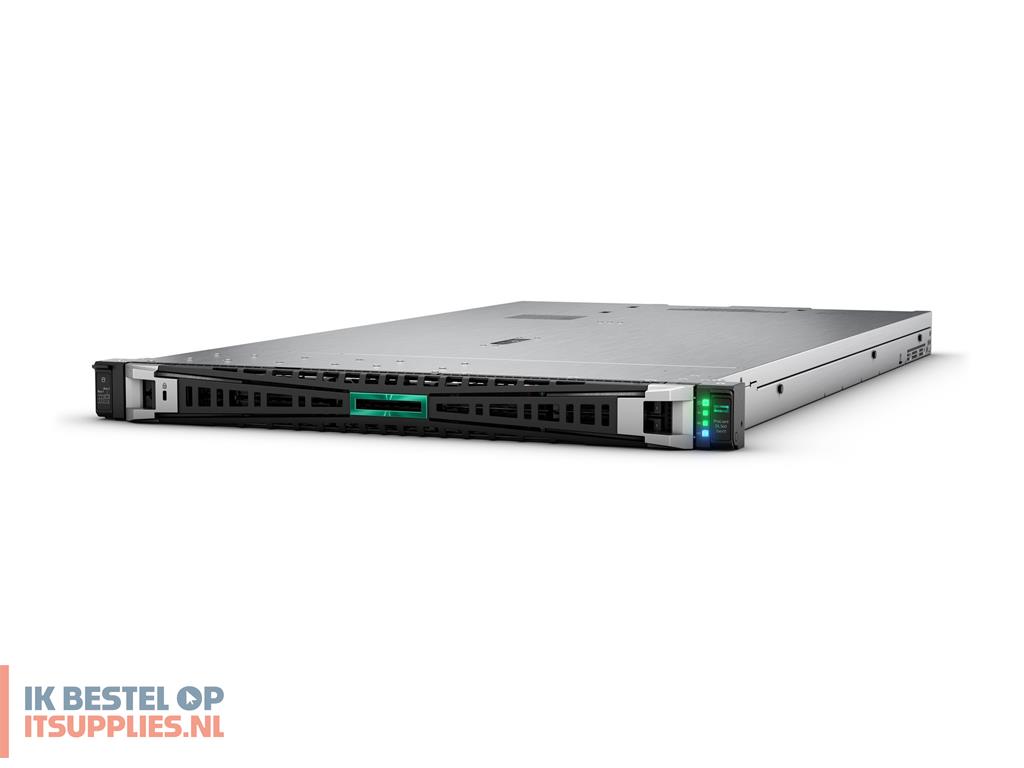

Rack-mountable - 1U
Built-in Devices
Led panel
Embedded Security
Trusted Platform Module (TPM) Security Chip
Processor / Chipset
CPU
Intel Xeon Silver 4509Y
CPU Upgradability
Upgradable
Cache Memory
Cache Per Processor
22.5 MB
RAM
Installed Size
32 GB (installed) / 4 TB (max)
Technology
DDR5 SDRAM - Advanced ECC
Effective Memory Speed
4400 MHz
Rated Memory Speed
5600 MHz
Slots
32 (Total) / 31 (empty)
Features
Registered, slots 17 - 32 are available in two-processor configuration only, HPE SmartMemory
Configuration Features
1 x 32 GB
Hard Drive
Storage Controller
Controller Interface Type
Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)
Storage Controller Name
HPE MR408i-o Gen11 SPDM
Optical Storage
Monitor
Graphics Controller
Networking
Interface (Bus) Type
Open Compute Project mezzanine (OCP) 3.0
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
Broadcom BCM5719
Data Link Protocol
Gigabit Ethernet, Ethernet, Fast Ethernet
Remote Management Protocol
SNMP 3, SMASH CLP, IPMI 2.0
Remote Management Controller
Integrated Lights-Out 6
Features
PXE support, Wake on LAN (WoL)
Expansion / Connectivity
Bays
1 (total) / 1 (free) x external Universal Media Bay
8 (total) / 8 (free) x hot-swap 2.5"
Slots
2 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)
Interfaces
1 x HPE iLO - Type A (1 in front)
1 x HPE iLO - RJ-45
4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal)
1 x VGA
4 x LAN (Gigabit Ethernet)
1 x USB 2.0
Miscellaneous
Included Accessories
5 x standard fans, HPE Easy Install Rails
Compliant Standards
ASHRAE Class A3, ASHRAE Class A4, TLS v1.2, AES, FIPS 140-2, IPv6 Ready, PCI DSS, WEEE 2002/95/EC, ACPI 6.4, ErP Lot 9
Power
Device Type
Power supply - hot-plug
Power Redundancy Scheme
1+1 (with optional power supply)
Voltage Required
AC 100-240 V
80 PLUS Certification
80 PLUS Titanium
Operating System / Software
OS Provided
No operating system
Sustainability Information
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% RH (non-condensing)
