General
Product Form Factor

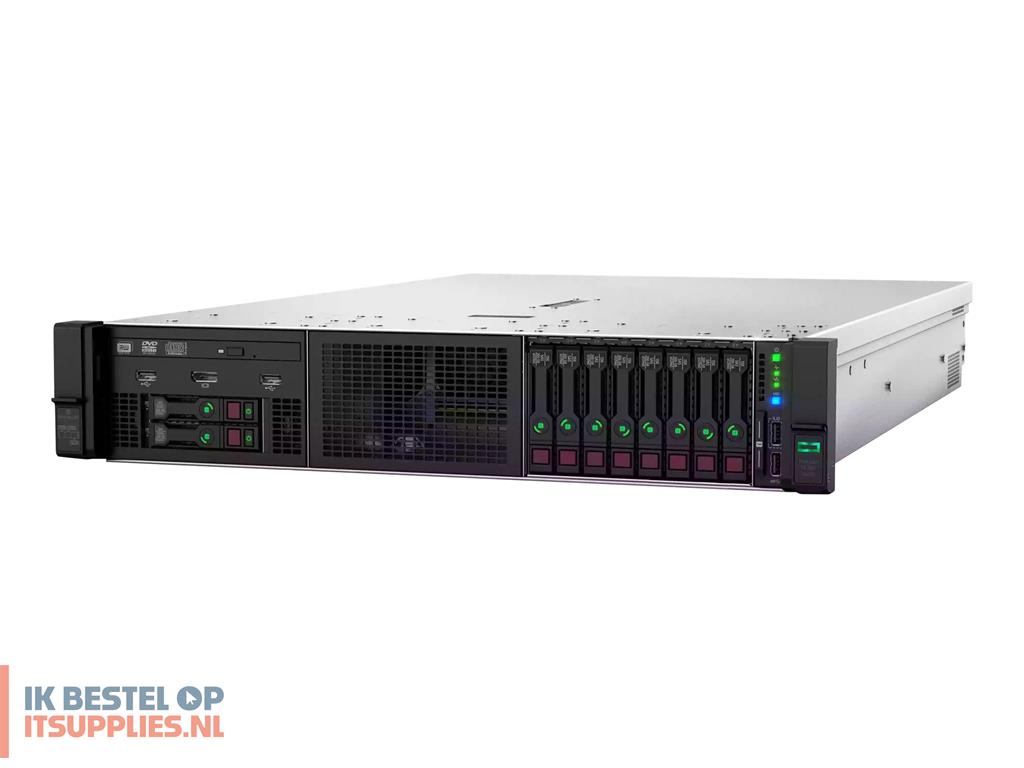

Rack-mountable - 2U
Built-in Devices
Led panel
Embedded Security
Trusted Platform Module (TPM) Security Chip
Localisation
Region: Europe, Middle East, Africa
Processor / Chipset
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory
Installed Size
L3 Cache - 35.75 MB
Cache Per Processor
35.75 MB
RAM
Installed Size
32 GB (installed) / 1.54 TB (max)
Technology
DDR4 SDRAM - Advanced ECC
Effective Memory Speed
2666 MHz
Rated Memory Speed
2933 MHz
Slots
24 (Total) / 23 (empty)
Features
Dual rank, HPE SmartMemory, slots 13 - 24 are available in two-processor configuration only, registered
Configuration Features
1 x 32 GB
RAM Supported
3 TB Load-Reduced - ECC
1.54 TB registered - ECC
192 GB Non-Volatile - ECC
6 TB - HPE Persistent Memory - Optane DC Persistent
Hard Drive
Storage Controller
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
Broadcom MegaRAID MR416i-p
Optical Storage
Monitor
Graphics Controller
Networking
Ethernet Ports
2 x 10 Gigabit Ethernet
Ethernet Controller
Broadcom BCM57416
Data Link Protocol
10 Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Expansion / Connectivity
Bays
1 (total) / 1 (free) x external Universal Media Bay
8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 0 (free) x FlexibleLOM
1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height
2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height
1 (total) / 1 (free) x microSD Card (internal)
Interfaces
1 x HPE iLO - Type A (1 in front)
5 x USB 3.0 (1 front, 2 rear, 2 internal)
1 x HPE iLO - RJ-45 (1 rear)
1 x VGA (1 rear)
2 x LAN (10Gigabit Ethernet) - SFP28 (2 rear)
Miscellaneous
Included Accessories
4 standard fans, CPU standard heatsink, HPE Easy Install Rails with CMA
Compliant Standards
AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2
Power
Device Type
Power supply - hot-plug
Power Redundancy Scheme
1+1 (with optional power supply)
Voltage Required
AC 100-240 V (50/60 Hz)
80 PLUS Certification
80 PLUS Titanium
Sustainability Information
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% RH (non-condensing)
