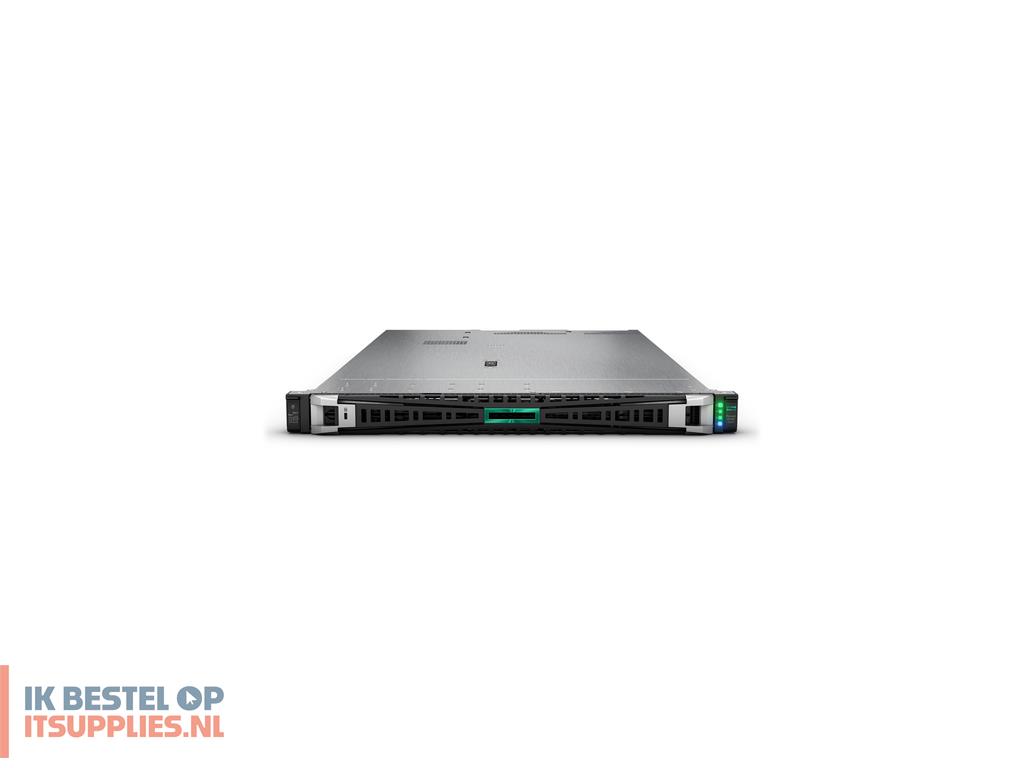

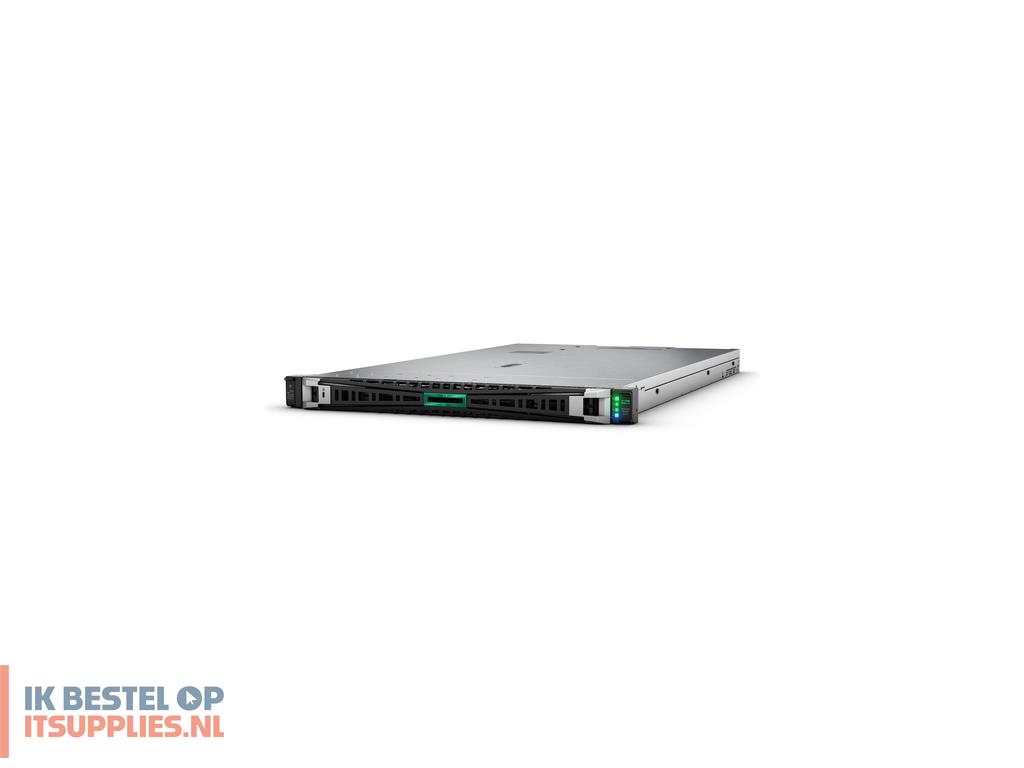

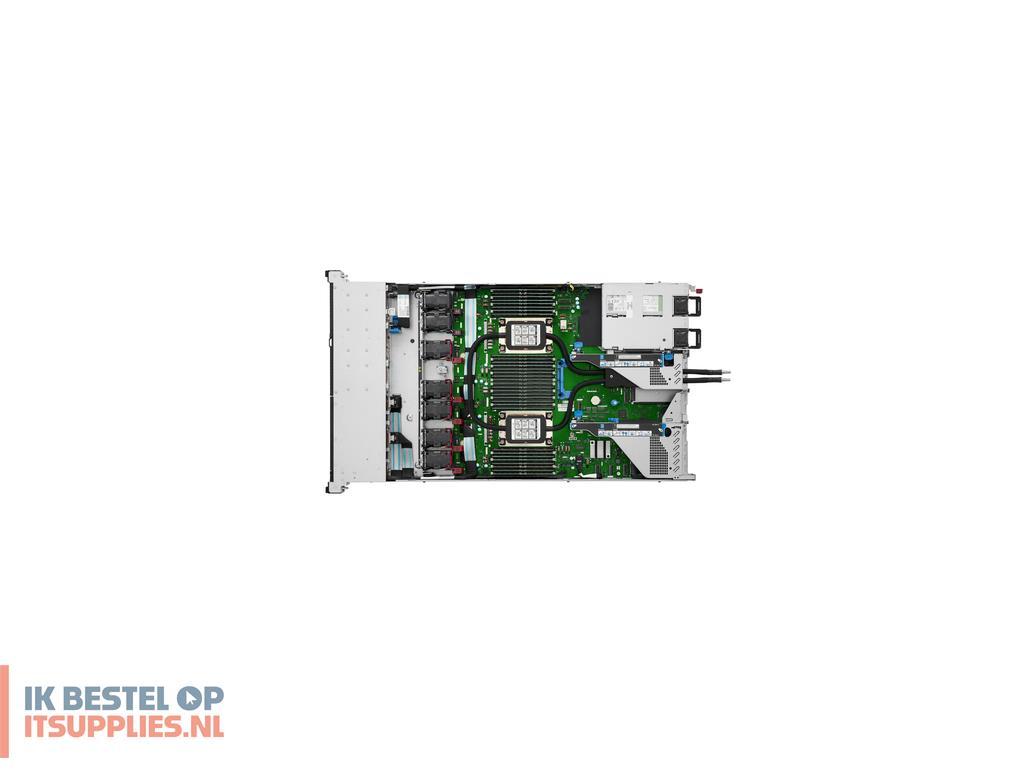

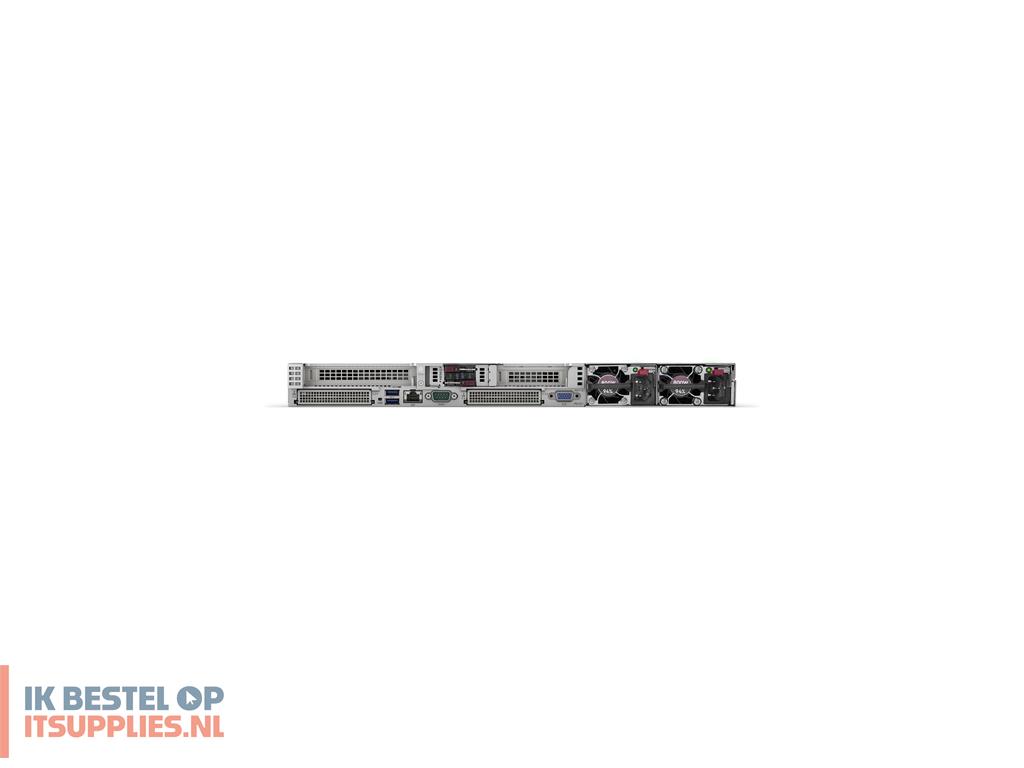

HPE ProLiant DL360 Gen11 8SFF NC Configure-to-order Server. Processorfamilie: Intel® Xeon® Scalable. Intern geheugentype: DDR5-SDRAM. Ethernet LAN. Netvoeding: 800 W. Type behuizing: Rack (1U)
Processor
Processorfamilie
Intel® Xeon® Scalable
Chipset moederbord
Intel C741
Processor socket
LGA 4677 (Socket E)
Geheugen
Intern geheugentype
DDR5-SDRAM
Opslagmedia
Ondersteunde RAID-controllers
Included - Embedded SATA controller (AHCI or Intel SATA Hybrid RAID controller) Optional - HPE Smart Array Gen11 Storage Controller in Variety of protocols -including NVMe-, port count, array utilities, and form factors (PCIe stand-up adapter and OCP3.0). Please see QuickSpecs for storage controllers selection.
Ondersteunde opslagstationinterfaces
SATA
Netwerk
LAN controller
Broadcom BCM5719
Ethernet interface type
Gigabit Ethernet
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
3
Uitbreidingsslots
Maximum 3 PCIe Gen5 slots and maximum 2 OCP 3.0 PCIe5 slots, for detail descriptions please see QuickSpecs.
Prestatie
Beheerplatform
Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, HPE OneView Advanced and HPE Compute Ops Management Refer to the iLO 6 User Guide
Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
2.0
Energie
Soort voeding
HPE 500W Flex Slot Platinum Hot Plug Power Supply (available only in 4LFF CTO server), HPE 800W Flex Slot Platinum Hot Plug Power Supply, HPE 800W Flex Slot Titanium Hot Plug Power Supply, HPE 1000W Flex Slot Titanium Power Supply, HPE 1600W Flex slot Platinum Hot Plug Power Supply, HPE 1600W DC Power supply, HPE 1600W Flex Slot -48VDC Hot Plug Power Supply, HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply.
Technische details
Aantal storage drives ondersteund
8
Overige specificaties
Beveiligingseigenschappen
UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits. For full security features refer to the QuickSpecs.
Aantal ondersteunde processoren
2
Ondersteunde geheugen types
DDR5-SDRAM
Afmetingen (B x D x H) (Brits)
599,9 x 990,1 x 241 mm (23.6 x 39 x 9.49")
Gewicht (imperiaal)
31,4 kg (69.2 lbs)
