General

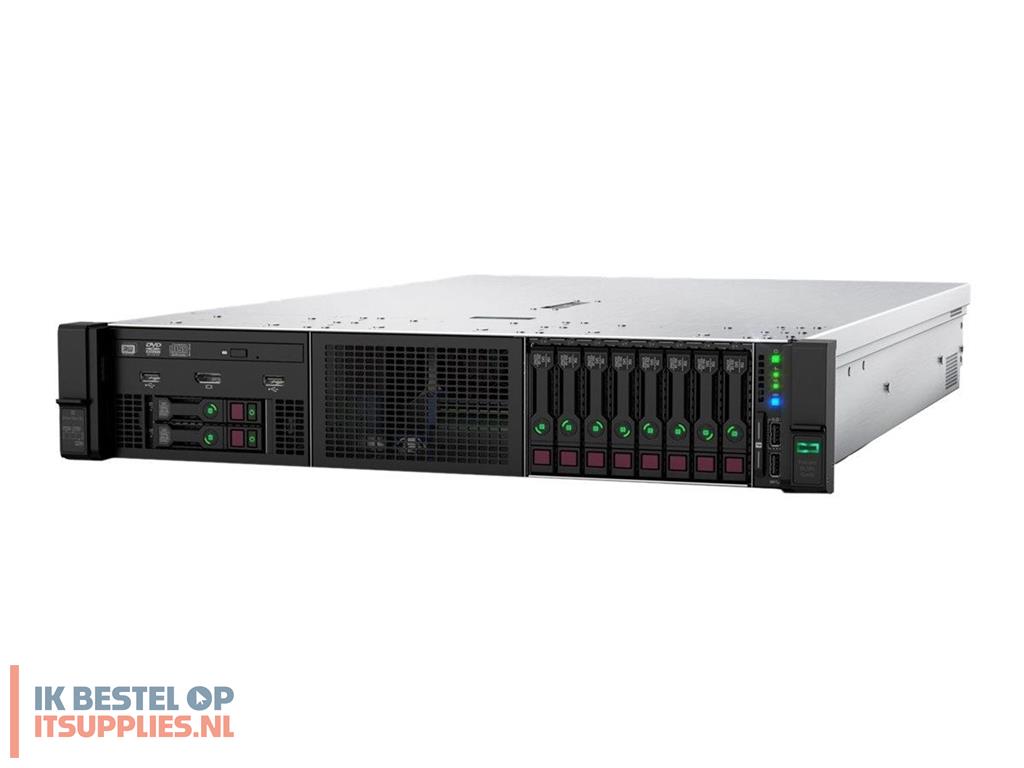

Product Form Factor
Rack-mountable - 2U
Localisation
Region: Worldwide (excluding China, Japan)
Processor / Chipset
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket
FCLGA3647 Socket
Cache Memory
Installed Size
L3 Cache - 22 MB
RAM
Installed Size
32 GB (installed) / 1.5 TB (max)
Technology
DDR4 SDRAM - Advanced ECC
Effective Memory Speed
2933 MHz
Rated Memory Speed
2933 MHz
Memory Specification Compliance
PC4-23466
Slots
24 (Total) / 23 (empty)
Features
Registered, Online Spare Memory, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, 6-channel memory architecture
Configuration Features
1 x 32 GB
RAM Supported
3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC ¦ 6 TB - HPE Persistent Memory - Optane DC Persistent
Hard Drive
Storage Controller
Type
1 x RAID - PCIe 3.0 x4
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
HPE Smart Array S100i SR Software RAID
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10
Optical Storage
Monitor
Graphics Controller
Networking
Ethernet Ports
2 x 10 Gigabit Ethernet
Ethernet Controller
HPE 562FLR-SFP+
Data Link Protocol
10 Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Expansion / Connectivity
Bays
8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 0 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces
1 x VGA ¦ 2 x LAN (10Gigabit Ethernet) (SFP+) ¦ 1 x HPE iLO - RJ-45 ¦ 3 x USB 3.0 (1 front, 2 rear)
Miscellaneous
Included Accessories
Cable management arm, 4 standard fans, SFF Easy install rails
Compliant Standards
AES, TLS v1.2, low halogen, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Power
Device Type
Power supply - hot-plug
Power Redundancy Scheme
1+1 (with optional power supply)
Voltage Required
AC 120/230 V (50/60 Hz)
80 PLUS Certification
80 PLUS Platinum
Operating System / Software
OS Certified
CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS
Sustainability Information
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 3 years - on-site
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
