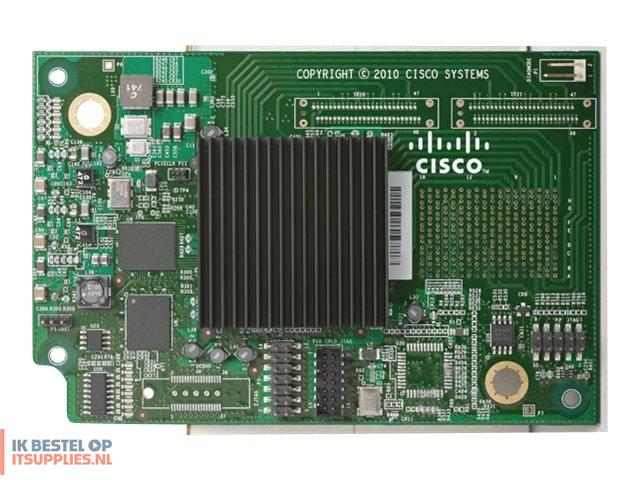

Cisco UCS Virtual Interface Card 1280

Productcode: UCS-VIC-M82-8P= | EAN/UPC: 0882658410086
692,43 excl.btw
Cisco UCS Virtual Interface Card 1280 - Network adapter - 10GbE, 10Gb FCoE - 8 ports - for UCS B200 M2, B200 M3, B230 M2, B440 M2
  • Delivers greater throughput
  • Allows these virtual interfaces and adapters to be configured and operated independently, just like physical interfaces and adapters
  • Creates a highly flexible I/O environment needing only one card for all I/O configurations
  • Unifies virtual and physical networking into a single infrastructure
  • Provides virtual machine visibility from the physical network and a consistent network operations model for physical and virtual servers
  • Enables configurations and policies to follow the virtual machine during virtual machine migration
  • Provides a prestandard implementation of the IEEE 802.1Qbh port extender standard
  • Enables the mezzanine card to be centrally managed and configured by Cisco UCS manager
  • Provides a redundant path to the fabric interconnect using hardware-based fabric failover
  • Provides high I/O performance for demanding applications
  • Uses Priority Flow Control (PFC) to enable FCoE as part of the Cisco unified fabric
Op voorraad: 0 stuk(s)
Levertijd:
Product:
Cisco UCS Virtual Interface Card 1280
837,84 incl. 21% btw 692,43excl. 21% btw
Voorraad: 0
Stuur mij een notificatie bij voorraad

Omschrijving

Cisco UCS Virtual Interface Card 1280 - Network adapter - 10GbE, 10Gb FCoE - 8 ports - for UCS B200 M2, B200 M3, B230 M2, B440 M2
Product features
  • Stateless and agile
    The personality of the card is determined dynamically at boot time using the service profile associated with the server. The number, type (NIC or HBA), identity, failover policy, bandwidth, and quality-of-service (QoS) policies of the PCIe interfaces are all determined using the service profile. The capability to define, create, and use interfaces on demand provides a stateless and agile server infrastructure.
  • Network interface virtualization
    Each PCIe interface created on the VIC is associated with an interface on the Cisco UCS Fabric Interconnect, providing complete network separation for each virtual cable between a PCIe device on the VIC and the interface on the Cisco UCS fabric interconnect.
  • Cisco VM-FEX technology
    Cisco VM-FEX technology extends fabric interconnect ports directly to virtual machines, eliminating software-based switching in the hypervisor. Cisco VM-FEX technology collapses virtual and physical networking infrastructure into a single infrastructure that is fully aware of the virtual machines' locations and networking policies. Cisco FEX-VM technology is implemented by Cisco VICs with a pre-standard implementation of IEEE 802.1Qbh port extender.

Specificaties

General
Device Type
Network adapter - 8 ports
Form Factor
Plug-in module
Networking
Data Link Protocol
10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE)
Performance
Throughput: 80 Gbps
Features
VLAN support, priority-based flow control, Jumbo Frames support
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.1Qbb, IEEE 802.1Qaz
Expansion / Connectivity
Compatible Slots
1 x Expansion Slot
Dimensions & Weight
Width
9.3 cm
Height
18.4 cm
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Compatibility Information
Designed For
Cisco UCS B200 M2 Blade Server, B200 M3 Blade Server, B230 M2 Blade Server, B440 M2 High-Performance Blade Server

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
