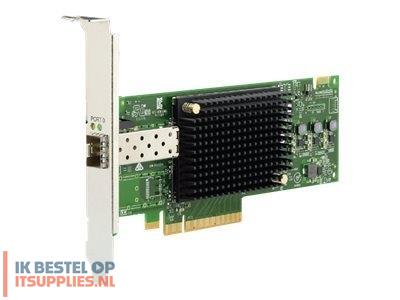

Lenovo Emulex 16Gb (Gen 6) FC Single-port HBA

Host bus adapter

Plug-in card - low profile

PCI Express 3.0 x8

16Gb Fibre Channel

Wired

4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel

FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-HBA, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SBC-2, SPC-3, FC-PI-6, SBC-3, SPC-4, SSC-4

14.025 Gbps

Maximum IOPS: 1600000

Quality of Service (QoS), Single Root I/O Virtualization (SR-IOV), Forward Error Correction (FEC), Extended Message-Signaled Interrupts (MSI-X)

1 x Emulex

1 x 16Gb Fibre Channel - SFP+

Low-profile bracket, full-height bracket, 16 Gb shortwave Fibre Channel SFP+ LC transceiver

10,000,000 hour(s)

ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, FCC Part 15 A, BSMI Class A, VCCI Class A, MSIP Class A, China RoHS, EN55024:2010, RCM, RoHS 2011/65/EU, EN55022:2010 Class A, AS/NZS CISPR22:2009+A1 Class A, EN 55032:2012, EN60950-1+A11+A1+A12+A2

Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12, VMware vSphere 5.5 update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5.5 update 3, VMware vSphere 6.0 update 1, VMware vSphere 6.0 update 2, Red Hat Enterprise Linux 7 Update 2, Red Hat Enterprise Linux 7 Update 1, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition

16.8 cm

6.9 cm

Limited warranty - 1 year

0 °C

55 °C

5 - 95% (non-condensing)

Lenovo NeXtScale nx360 M5 5465 ¦ Lenovo System x3500 M5 5464 ¦ Lenovo System x3550 M5 5463, 8869 ¦ Lenovo System x3650 M5 5462, 8871 ¦ Lenovo System x3750 M4 8753 ¦ Lenovo System x3850 X6 6241 ¦ Lenovo System x3950 X6 6241 ¦ Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem ST250
