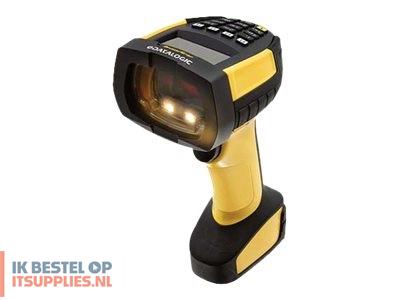

Datalogic PowerScan PM9600 - RS-232 Kit

Productcode: PM9600-SR433RBK20 | EAN/UPC: 5715063661321

€ 777,41 excl.btw

Datalogic PowerScan PM9600 - RS-232 Kit - barcode scanner - portable - SR - 2D imager - decoded - RF(433 MHz)

Bullet proof your traceability targets
Future proof your connectivity
Putting power into your hands
Taking wireless to the next level
Ensuring even better cost of ownership

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Datalogic PowerScan PM9600 - RS-232 Kit

€ 940,67 incl. 21% btw € 777,41excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Datalogic PowerScan PM9600 - RS-232 Kit - barcode scanner - portable - SR - 2D imager - decoded - RF(433 MHz)

Product features

Bullet proof your traceability targets
The 9600 is the range-topping handheld industrial scanner in the PowerScan series from Datalogic, helping you smash your traceability targets. Achieving full traceability in manufacturing, intralogistics and retail environments is the number one priority faced by businesses when faced with fulfilling consumer delivery demands. You need a tough device for handling the toughest jobs. This IP65 and IP67 rated scanner will withstand 2.5 m drops onto hard concrete, and the trigger is tested to resist up to 10 million hits. Even though it is impervious to dirt and water, it is wirelessly charged in its cradle. No more device failure due to grimy or corroded charging contacts.
Future proof your connectivity
The PowerScan 9600 series of 2D barcode scanner features all the standard benefits associated with Datalogic industrial handheld scanners, but with embedded industrial connectivity, allowing simple interfacing with a PC, industrial PC, tablet, or PLCs. There is no need for third part devices as the communication modules are exchangeable in the cradle, and inline for the wired version. The Plug-and-Play architecture helps to maintain network integrity, and is easily configurable between RS-232, USB, USB-C, Ethernet, Ethernet I/P or Profinet.
Putting power into your hands
The PowerScan 9600 rugged barcode scanner range offers three different performance levels, depending on your application, with read rates 20% faster than competitive products. The Standard Range model is equipped with a single camera for capturing low density 1D and 2D codes within normal reading ranges. For longer distance reading, choose the High Performance reader with a dual camera. Finally, and unique to Datalogic, is the Document Capture model which will take color images for quality control or signatory confirmation. As with all Datalogic scanners, the 9600 series provides gentle white light illumination and outputs a successful "Green Spot" for a successful read, even on damaged or dirty barcodes.
Taking wireless to the next level
The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The PowerScan 9600 scanner features Datalogic's wireless charging system. Based on inductive-charging technology, Datalogic's wireless charging system eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions. Operators can freely walk around large working areas with an industrial wireless barcode scanner, scanning items, inputting data from the built-in keypad, and gaining immediate feedback from the host on the large, bright OLED display.
Ensuring even better cost of ownership
With growing emphasis on long term device performance, Datalogic has equipped several cost-saving features in the PowerScan 9600 series. Smart battery technology maximizes and optimizes charging efficiency, providing an indication of battery health. The cradle also includes wireless charging capability, eliminating the possibility of poor or no charging due to damaged or dirty contacts, which is the number one failure in traditional cradle setups. These cradles even provide information on device health, enabling you to schedule predictive maintenance, thus avoiding any unplanned downtime because of unexpected failure. Your total cost of ownership is reduced significantly thanks to these simple but powerful additions, with wireless charging providing a 15% increase. The PowerScan 9600 series is the easy choice when it comes to top flexibility and extreme reliability regarding handheld scanners.

Specificaties

General

Type

Barcode scanner - portable

Colour

Black, yellow

Barcode

Interface Type

RF(433 MHz)

Scan Engine Focus Range

Standard Range (SR)

Scan Element Type

2D imager - white LED

Sensor Resolution

1280 x 800

Light Source Wave Length

630-680 nm

Skew (Degrees)

Pitch (Degrees)

Print Contrast Signal (PCS)

15%

Decode Capability

EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post, Intelligent Mail Barcode, UPC A Composite, UPC E Composite, DotCode

TTL Decoding

Decoded

Connectivity Technology

Wireless

OK Notification

Beeper, LED indicator, vibration

Features

ESD (electrostatic discharge) safe, Datalogic Three Green Lights (3GL)

Expansion / Connectivity

Interfaces

1 x RS-232

Miscellaneous

Included Accessories

Cradle

Cables Included

RS-232 cable - external

Compliant Standards

REACH, IP67, IP65, China RoHS, EU RoHS

Power

Power Device

Power adapter

Dimensions & Weight

Width

7.9 cm

Depth

14 cm

Height

19.8 cm

Weight

425 g

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

-20 °C

Max Operating Temperature

50 °C

Humidity Range Operating

0 - 95% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
