General
Type

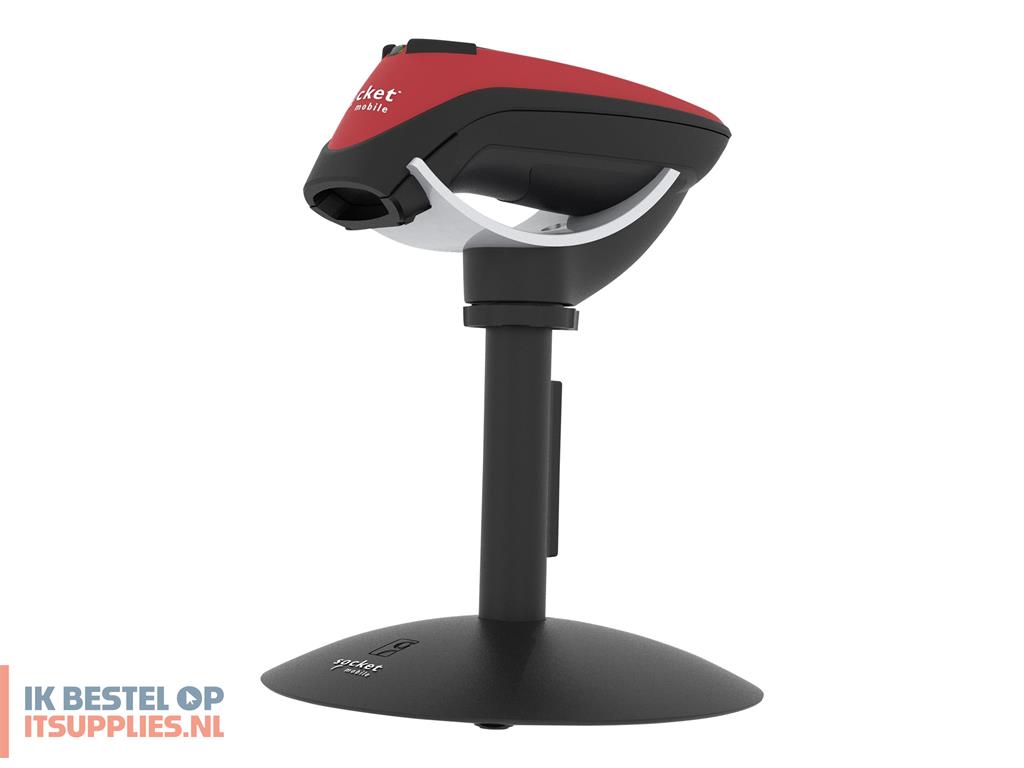

Barcode scanner - portable
Barcode
Interface Type
Bluetooth 2.1 EDR
Scan Element Type
2D imager
Sensor Resolution
640 x 400
Light Source Wave Length
660 nm
Max Working Distance
76.2 cm
Print Contrast Signal (PCS)
20%
Decode Capability
Code 93, Matrix 2 of 5, Code 39, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, Bookland, EAN/JAN-8, EAN/JAN-13, UPC-A, Discrete 2 of 5, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, PDF417, Data Matrix, Australian Post, Japanese Post, Kix (Netherlands) Post, UPC-E0, ISSN, OCR-A, OCR-B, MICR E-13B, Micro QR code, CC-A, CC-B, CC-C, GS1 DataBar Expanded, GS1 DataBar Limited, Intelligent Mail Barcode, MSI, GS1-128, Chinese 2 of 5, UPU FICS, DotCode, US Planet, US Postnet, USPS 4-state (US4CB), Han Xin, UPC/EAN/JAN Composites, Composite TLC, US currency serial number
Connectivity Technology
Wireless
OK Notification
Beeper, LED indicator, vibration
Features
Waterproof, dustproof, rugged, removable battery, red LEDs illumination, OMNI-directional reading, Human Interface Device Profile (HID), Serial Port Profile (SPP), MFi-Serial Port Profile (MFi-SPP), passport reader
Networking
Wireless Connectivity
Bluetooth 2.1 EDR
Miscellaneous
Included Accessories
Wrist strap
Compliant Standards
C-Tick, EN55022, ICES-003, EN55024, CISPR 22, RSS-210, IC, RoHS, UL 60950-1, IEC 60950-1, WEEE, IEC 60068-2-32, TELEC, cTUVus, IP54, IEC 60068-2-31, MFI, EN 50581, EN 60529, CAN/CSA C22.2, IEC/EN 62471, FCC Part 15 Class C, SIG
Power
System Requirements
OS Required
Apple MacOS, Linux, Microsoft Windows, Android, Apple iOS
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
0 - 95% (non-condensing)
Drop Specification
1 m to concrete
