General
Type

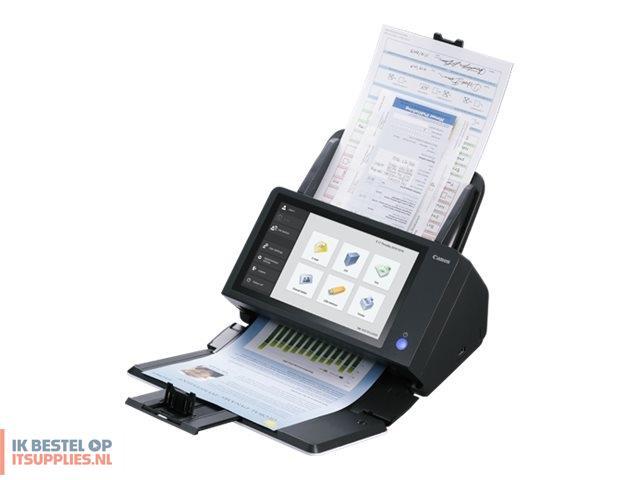

Document scanner - desktop
Interface Type
USB 2.0, LAN
Additional Functions
Scan to print, scan to USB, scan to FTP, scan to folder, scan to fax
Max Supported Document Size
216 x 3048 mm
Scanner
Grayscale Depth (External)
8-bit (256 grey levels)
Colour Depth (External)
24-bit (16.7 million colours)
Optical Resolution
600 dpi x 600 dpi
Scanning Sensor Type
CMOS / CIS
Bulb / Light Source Type
RGB LED array
Max Document Scan Speed B/W
45 ppm
Max Document Scan Speed Colour
45 ppm
Duty Cycle
6000 scans per day
Scanner Speed Details
45 ppm - black & white
45 ppm - colour
Scanner Features
Color Dropout, Ultrasonic Double Feed Detection, Bleed-through reduction, Shadow Removal, Error Diffusion, automatic colour detection, blank page skipping, Text Enhancement, Text Orientation Recognition, Smooth Background, Double Feed Release (DFR), Deskew, Color Enhancement, Long Document Scanning, Folio Mode, 10.1" touch screen TFT display
Scan File Formats
JPEG, PNG, TIFF, PDF
Media Handling
Max Document Size
216 mm x 3048 mm
Supported Document Type
Plain paper, business card, embossed card
Document Feeder Type
Automatic
Document Storage Capacity
60 sheets
Expansion / Connectivity
Interfaces
3 x USB 2.0
LAN
Miscellaneous
Included Accessories
Roller cleaning kit, Exchange Roller Kit
Environmental Standards
Power
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational (Standby)
40 Watt
Power Consumption Sleep
2 Watt
Software / System Requirements
Software Included
Drivers & Utilities, Canon ScanFront Administration Tool, Web Application Toolkit
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
32.5 °C
Humidity Range Operating
20 - 80%
