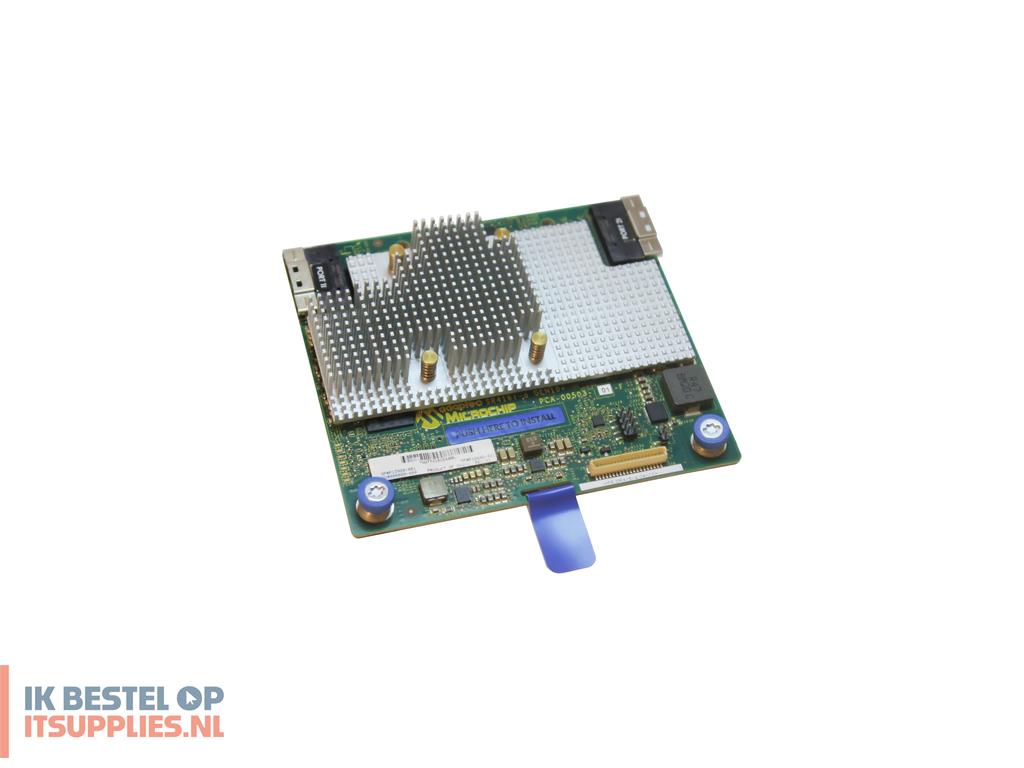

HPE Microchip SmartRAID SR416i-a x16 Lanes 4GB Cache NVMe/SAS 24G Controller for Gen10 Plus. Ondersteunde opslagstationinterfaces: SAS, SATA III, Hostinterface: PCI Express x16, PCI Express slots versie: 3.0, 4.0. Soorten RAID: 0, 1, 5, 10, 6, 50, 60, 1 ADM, 10 ADM, Overdrachtssnelheid: 24 Gbit/s, Intern geheugen: 4098 MB. Breedte: 99,1 mm, Diepte: 111,8 mm, Hoogte: 99,1 mm. Type behuizing: Full-height, half-length PCIe stand up card (SR932i-p) or Type-a Modular (SR416i-a), Aansluitingen: 16 onternal tri-mode ports (SlimSAS SFF-9402 connectors supporting U.2 and U.3) supporting up to..., Extra functies: See HPE SR Gen10 Plus Controllers QuickSpecs for additional detail.
Poorten & interfaces
Ondersteunde opslagstationinterfaces
SAS, SATA III
Hostinterface
PCI Express x16
PCI Express slots versie
3.0, 4.0
Prestatie
Soorten RAID
0, 1, 5, 10, 6, 50, 60, 1 ADM, 10 ADM
Overdrachtssnelheid
24 Gbit/s
Kloksnelheid geheugen
3200 MHz
Beheerprotocollen
6 G SATA, 6 G/12 G/24 G SAS, Gen 3/Gen4 NVMe
Certificering
EMC, CE, CNS, CT, FC, IC, KC, VC, EMC Doc, CE, C-tick, FCC, KCC, VCCI, BSMI, UL, EN 60950 and 62368, AU_NZ LoA and SDoC, RoHs, TW and EU
Compatibele producten
HPE Gen10 Plus
Overige specificaties
Type behuizing
Full-height, half-length PCIe stand up card (SR932i-p) or Type-a Modular (SR416i-a)
Aansluitingen
16 onternal tri-mode ports (SlimSAS SFF-9402 connectors supporting U.2 and U.3) supporting up to 16 direct-connected SAS/SATA/NVMe devices
Extra functies
See HPE SR Gen10 Plus Controllers QuickSpecs for additional detail.
