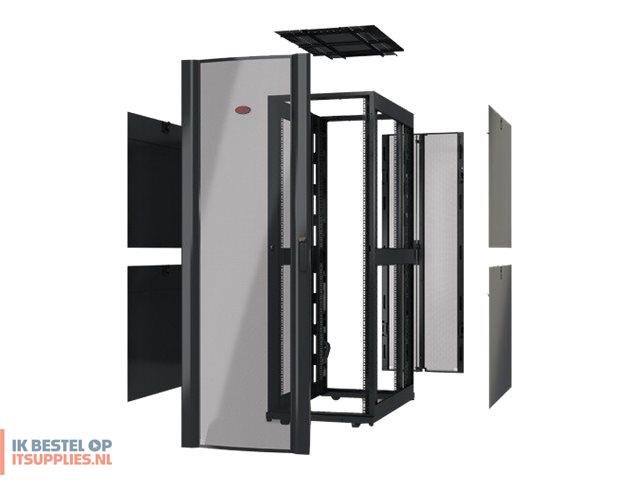

APC NetShelter SX - Rack open frame

Productcode: AR3300X617 | EAN/UPC: 0731304293675

€ 1.355,73 excl.btw

APC NetShelter SX - Rack open frame - black - 42U - 19"

Simple Selection
Integrated electrical grounding
Integrated with InfraStruxure products
Optimized for high capacity cable management systems
Cable access openings with pre-installed brushes
Enclosure adjustment tools and hardware provided
Easily removable cable access roof
Equipment mounting rails integrate with patch cabling systems
Pre-installed full-enclosure height rear accessory channels
Adjustable mounting rails with captive hardware and rapid alignment
Low-profile castors and adjustable leveling feet from underneath or above
Integrated joining hardware with multiple width enclosure alignment
Special packaging options for shipping rack with equipment mounted
Enclosure assemble-to-order (ATO) options capable
Designed for enhanced structural stability

Op voorraad: 0 stuk(s)

Levertijd:

Product:
APC NetShelter SX - Rack open frame

€ 1640,43 incl. 21% btw € 1355,73excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

APC NetShelter SX - Rack open frame - black - 42U - 19"

Product features

Simple selection
No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. Schneider Electric has made it easy by handling the details and providing complete enclosures with single part numbers.
Integrated electrical grounding
The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.
Integrated with InfraStruxure products
Schneider Electric cooling, power distribution, and cable management products work seamlessly with IT enclosures to provide a complete infrastructure support system.
Optimized for high capacity cable management systems
NetShelter SX enclosures are optimized for use with high capacity cable management systems that attach to equipment mounting rails inside enclosures aligning with equipment mounting u-spaces and provide channels for routing and managing cabling.
Cable access openings with pre-installed brushes
Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. Roof includes openings with brush strips pre-installed in locations biased towards the front of the enclosure to allow for data cable passthrough and provisions for air containment.
Enclosure adjustment tools and hardware provided
All enclosures are provided standard with hardware bag that includes hardware for mounting IT equipment and tools for simple enclosure adjustment.
Easily removable cable access roof
Roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.
Eyebolt support integrated into enclosure frame
Integrated eyebolt holes at the top of the enclosure frame allow the enclosure to be lifted for movement and enclosure placement using eyebolt lifting mechanisms. Refer to enclosure user documentation for detailed specifications on eyebolt requirements and enclosure weight limits.
Adjustable mounting rails with captive hardware and rapid alignment
The vertical mounting rails can be adjusted in 1/4 in (6.4 mm) increments covering virtually any mounting requirement for IT equipment. Easy alignment feature integrated into the enclosure mounting rail and side brace for quick alignment verification without the use of tools to verify alignment. U positions are numbered front and back for rapid installation of equipment.
Low-profile castors and adjustable leveling feet from underneath or above
Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench.
Integrated joining hardware with multiple width enclosure alignment
Enclosures include pre-installed joining hardware to join enclosures in a row and provide additional stability to the enclosure. The pre-installed joining hardware includes holes for joining to an adjacent enclosure at 600 mm centers or 24 in centers depending upon the floor layout.

Specificaties

General

Product Type

Rack

Rack Type

Open frame

Product Material

Steel

Package Content

Rack levelling feet

Rack Size

19"

Height (Rack Units)

42U

Width

60 cm

Depth

107 cm

Height

211.8 cm

Weight

134.09 kg

Colour

Black

Miscellaneous

Weight Limit

1364 kg

Mounting Kit

Included

Compliant Standards

EIA-310-E, RoHS, UL 60950-1

Manufacturer Warranty

Service & Support

Limited warranty: replacement - 5 years

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
