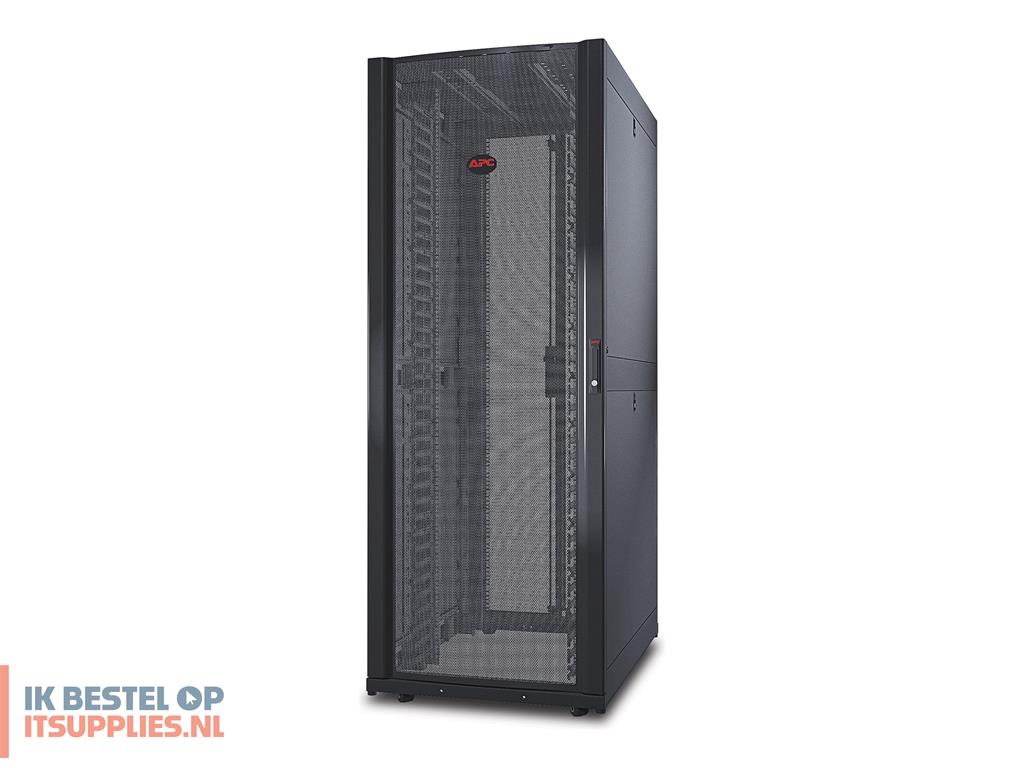

APC NetShelter SX Networking Enclosure with Sides

Productcode: AR3140 | EAN/UPC: 0731304275572

€ 2.592,85 excl.btw

APC NetShelter SX Networking Enclosure with Sides - Rack - black - 42U - for P/N: SUA1000RMI2U, SUA2200RMXLI3U, SUA5000RMI5U

Integrated high density cable management
Cable protection and pass-through
Optimized enclosure design for side-to-side airflow
Improved cable access
High density cable management

Op voorraad: 0 stuk(s)

Levertijd:

Product:
APC NetShelter SX Networking Enclosure with Sides

€ 3137,35 incl. 21% btw € 2592,85excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

APC NetShelter SX Networking Enclosure with Sides - Rack - black - 42U - for P/N: SUA1000RMI2U, SUA2200RMXLI3U, SUA5000RMI5U

Product features

Integrated high density cable management
Decrease installation time while supporting the cabling needs of large networking switches.
Cable protection and pass-through
Smooth plastic fingers provide proper bend radius.
Optimized enclosure design for side-to-side airflow
Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches.
Improved cable access
Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.
High density cable management
The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure.

Specificaties

General

Product Type

Rack

Height (Rack Units)

42U

Width

75 cm

Depth

107 cm

Height

199 cm

Weight

156 kg

Colour

Black

Miscellaneous

Weight Limit

1363 kg

Mounting Kit

Included

Compliant Standards

EIA-310-E, RoHS, UL 60950-1

Manufacturer Warranty

Service & Support

Limited warranty: - 5 years

Compatibility Information

Designed For

P/N: SUA1000RMI2U, SUA2200RMXLI3U, SUA5000RMI5U

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
