General
Device Type

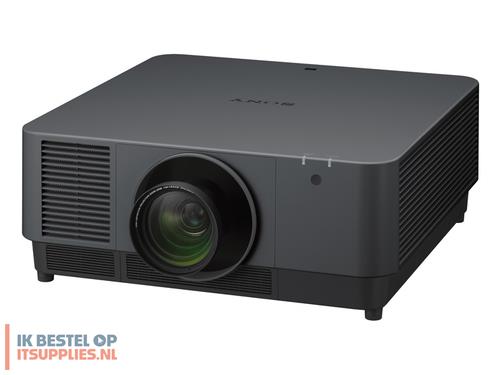

3LCD projector - 1080p
Projector
Brightness (Colour)
10000 lumens
Brightness (Reduced)
8800 lumens
Resolution
WUXGA - WUXGA (1920 x 1200)
Display Format
6,912,000 pixels (1920 x 1200) x 3
Max Sync Rate (V x H)
92 Hz x 92 kHz
Bulb life cycle
Up to 20000 hour(s)
Controls & Adjustments
Keystone correction
Features
BrightEra, Reality Creation
Lens
Keystone Correction Direction
Horizontal, vertical
Vertical Keystone Correction
-30 / +30
Horizontal Keystone Correction
-30 / +30
Lens Shift Direction
Horizontal, vertical
Video Input
Video Interfaces
VGA, HDMI, DVI, RGB, HDBaseT
Video Modes
1080/24p, 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i
LAN and Wireless Image Transferring Protocols
Wired LAN
Expansion / Connectivity
Interfaces

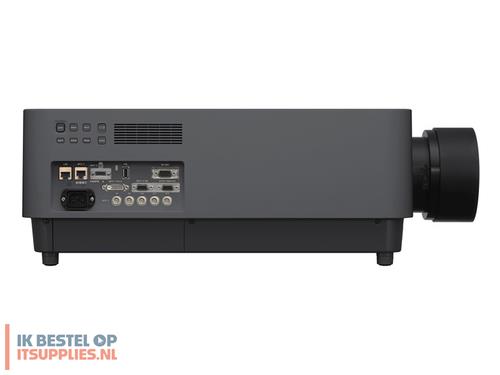

1 x RGB input - BNC x 5 ¦ 1 x RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x DVI input - DVI-D ¦ 1 x HDMI input - 19 pin HDMI Type A ¦ 1 x HDBaseT - RJ-45 x 3 ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) (management) ¦ 1 x network - RJ-45 (management)
Miscellaneous
Included Accessories
Remote control
Power
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Stand by
0.5 Watt
Dimensions & Weight
Dimensions & Weight (Shipping)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
20 - 80% (non-condensing)
