General
Device Type

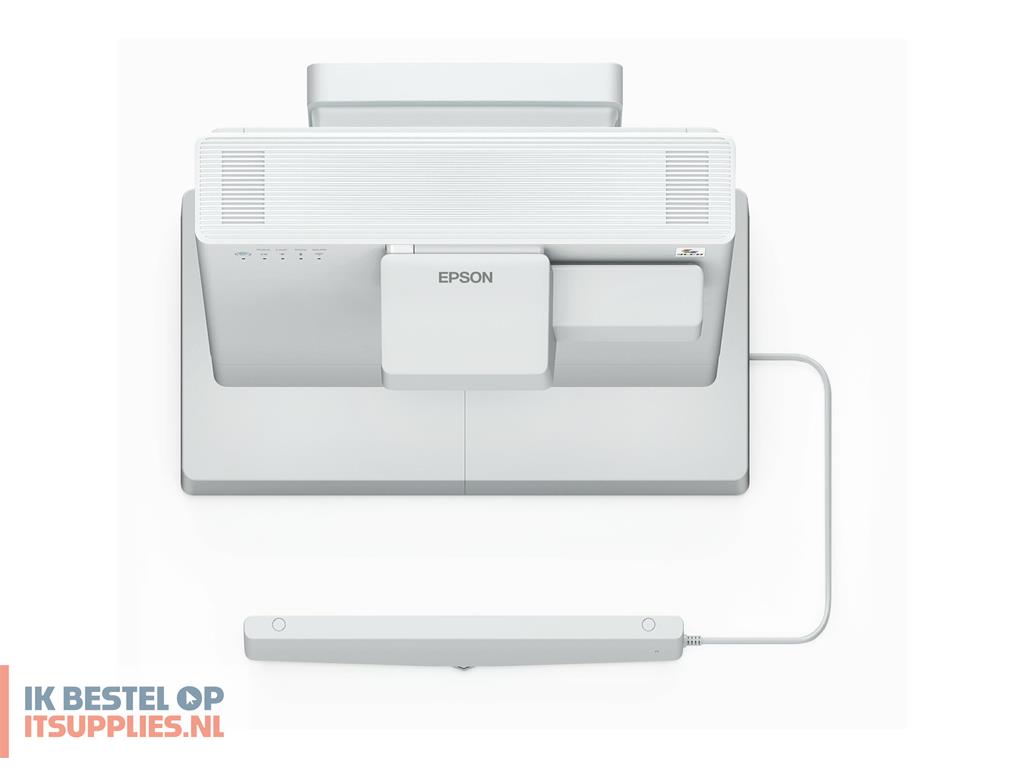

3LCD projector - 1080p
Built-in Devices
Stereo speakers
Networking
802.11a/b/g/n/ac, Ethernet
Projector
Brightness (White)
5000 lumens
Brightness (Colour)
5000 lumens
Brightness (Reduced)
3500 lumens
Contrast Ratio
2500000:1 (dynamic)
Image Size
165.1 cm - 254 cm
Projection Distance
0.4 m - 0.81 m
Resolution
Full HD - Full HD (1920 x 1080)
Colour Support
1.07 billion colours
Max Sync Rate (V x H)
240 Hz
Bulb life cycle
Up to 20000 hour(s) - normal mode
Up to 30000 hour(s) - economic mode
Features
sRGB colour profile, freeze frame, Blackboard Mode, Edge blending, EPSON 3LCD technology, Split Screen, DICOM Simulation Mode, Direct Power On, Direct Power Off, Dynamic Mode, auto power on, Auto Calibration, Eco Mode, instant on/off, Presentation Mode, Cinema Mode
Lens
Type
Ultra short-throw lens
Keystone Correction Direction
Horizontal, vertical
Vertical Keystone Correction
-3 / +3
Horizontal Keystone Correction
-3 / +3
Video Input
Video Interfaces
VGA, HDMI, component video, HDBaseT
LAN and Wireless Image Transferring Protocols
IEEE 802.11b, IEEE 802.11g, wired LAN, IEEE 802.11a, IEEE 802.11n, Miracast, IEEE 802.11ac
Speakers
Output Power / Channel
8 Watt
Speakers
2 x right / left channel
Expansion / Connectivity
Interfaces
2 x VGA input - 15 pin HD D-Sub (HD-15)
1 x HDMI output - 19 pin HDMI Type A
3 x HDMI input - 19 pin HDMI Type A
2 x USB 2.0 - 4 pin USB Type A
1 x component video input
1 x HDBaseT - RJ-45
3 x audio line-in - mini-phone stereo 3.5 mm
1 x audio line-out - mini-phone stereo 3.5 mm
1 x microphone - mini-phone 3.5 mm
1 x serial RS-232C
1 x network - RJ-45
1 x VGA output - 15 pin HD D-Sub (HD-15)
1 x Sync in
1 x Sync out
1 x USB 2.0 - 4 pin USB Type B
Miscellaneous
Included Accessories
Lens cover, wall mounting kit, cable cover, wireless remote control, finger touch unit, interactive pens, pen tips, pen stand
Cables Included
1 x USB cable
Security Features
Security lock slot (cable lock sold separately), password protection, control panel lock
Security Slot Type
Kensington security slot
Power
Voltage Required
AC 230V (50 - 60 Hz)
Power Consumption Operational
366 Watt
Power Consumption Stand by
0.5 Watt
Software / System Requirements
Software Included
Epson Easy Interactive Tools, Epson Projector Management Software
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 5 years / 12000 hours
Environmental Parameters
Sound Emission (Economic Mode)
28 dBA
