General
Device Type

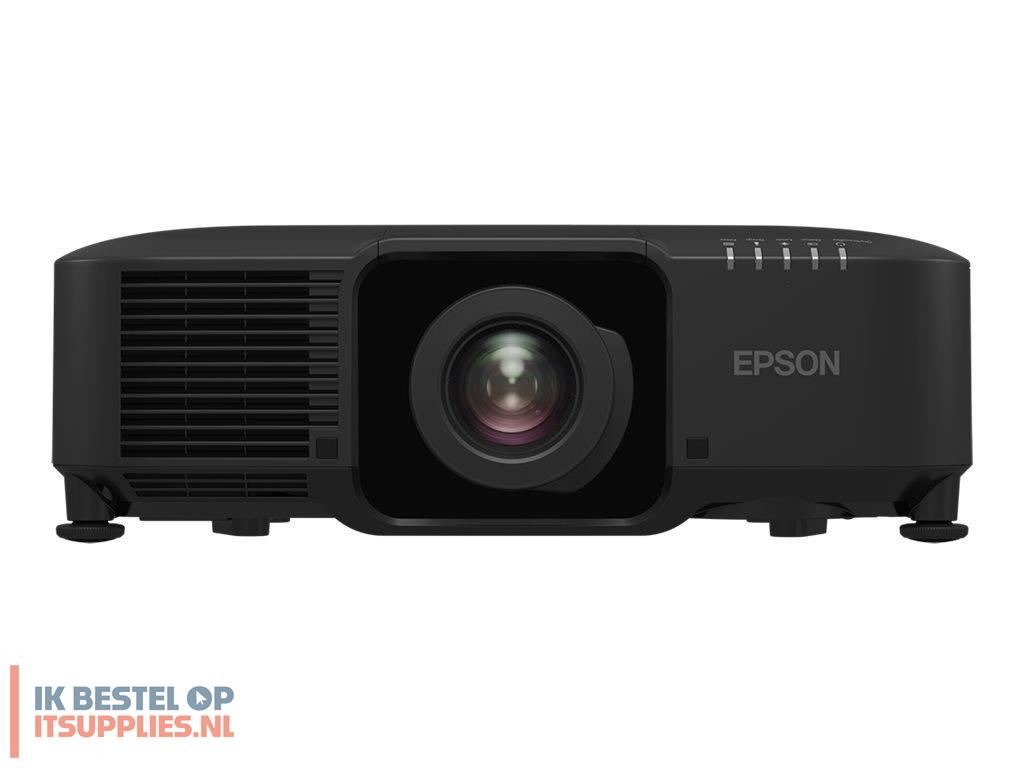

3LCD projector - 1080p
Built-in Devices
0.76-inch LCD
Projector
Brightness (White)
8500 lumens
Brightness (Colour)
8500 lumens
Brightness (Reduced)
5950 lumens
Contrast Ratio
2000:1 / 2500000:1 (dynamic)
Throw Ratio
0.35 - 10.11:1
Resolution
WUXGA - WUXGA (1920 x 1200)
Colour Support
1.07 billion colours
Bulb life cycle
Up to 20000 hour(s) - normal mode ¦ Up to 30000 hour(s) - economic mode
Features
EPSON Quick Corner, Edge blending, EPSON 3LCD technology, PJlink, Web Remote Control, DICOM Simulation Mode, AMX Device Discovery, Direct Power On, Direct Power Off, Dynamic Mode, full 10-bit image processing, auto power on, SNMP support, Extron XTP certified, 4K Enhancement, Presentation Mode, Extron IPLink certified, Cinema Mode, RGB liquid crystal shutter
Lens
Keystone Correction Direction
Horizontal, vertical
Vertical Keystone Correction
-45 / +45
Horizontal Keystone Correction
-30 / +30
Video Input
Video Interfaces
VGA, HDMI, DVI, HDBaseT
LAN and Wireless Image Transferring Protocols
Wired LAN
Expansion / Connectivity
Interfaces
2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type B (management) ¦ 1 x serial RS-232C ¦ 1 x network - RJ-45 ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x DVI input ¦ 1 x HDBaseT - RJ-45 ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ HDMI - 19 pin HDMI Type A
Miscellaneous
Included Accessories
Cable cover, remote control, battery for remote control
Security Features
Security lock slot (cable lock sold separately), password protection, control panel lock, Wireless LAN Lock, padlock, security cable hole
Security Slot Type
Kensington security slot
Compliant Standards
HDCP 2.3, IPv6
Power
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Consumption Operational
535 Watt
Power Consumption Stand by
0.5 Watt
Software / System Requirements
Software Included
Epson Projector Management Software, Epson iProjection, Epson Projector Content Manager, Epson Projector Professional Tool
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 3 years - carry-in
Environmental Parameters
Humidity Range Operating
20 - 80%
Sound Emission (Economic Mode)
30 dBA
