General
Printer Type

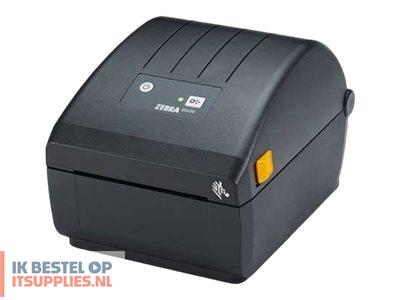

Label printer - thermal transfer - monochrome
Localisation
United Kingdom, European Union
Printer
Print Speed
Up to 152 ppm - B/W - 203 dpi
Connectivity Technology
Wired
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, EPL2, Extensible Mark-up Language (XML)
Features
Black Mark sensor, gap sensor
Fonts Included
16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI
RAM
RAM Installed (Max)
128 MB
Technology / Form Factor
SDRAM
Flash Memory
Media Handling
Media Type
Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels
Max Media Size
Roll (11.2 cm)
Media Sizes
Roll (11.2 cm)
Max Printing Length
991 mm
Media Thickness Range
0.08 mm - 0.1905 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm
Media Feeders
1 x manual - 1 roll - Roll (11.2 cm)
Networking
Expansion / Connectivity
Connections
1 x USB 2.0 ¦ 1 x LAN
Miscellaneous
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, EN 301 893
Power
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Software / System Requirements
Environmental Standards
Environmental Parameters
Min Operating Temperature
4.4 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90% (non-condensing)
Dimensions & Weight
