General
Device Type

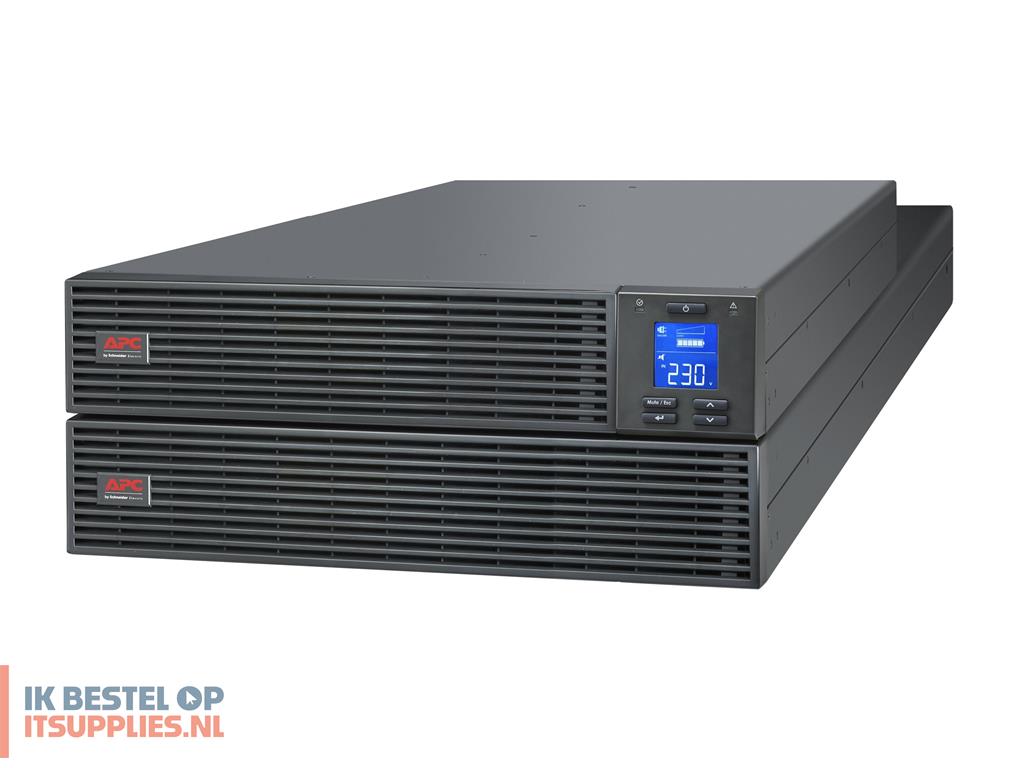

UPS - rack-mountable
Power Device
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 110 - 300 V
Frequency Provided
50/60 Hz ± 0.1%
Frequency Required
50/60 Hz
Input Connectors
Hardwire 3-wire
Power Output Connectors Details
Hardwire
Output Voltage
AC 220/230/240 V ± 1% - 50/60 Hz
Power Capacity
6000 Watt / 6000 VA
Surge Energy Rating
600 Joules
Circuit Protection
Circuit breaker
Battery
Features
Maintenance free, sealed, leak-proof
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (USB) - 4 pin USB Type B
1 x management (RS-232) - 9 pin D-Sub (DB-9)
EPO (emergency power off)
Expansion Slots
1 (total) / 1 (free) x Intelligent Slot
Miscellaneous
Cables Included
USB cable - external
Features
Audible alarm, LCD display, internal bypass, LED indicators, automatic self-test, Eco-Mode, Green Function, generator compatible
Compliant Standards
IEC 62040-1-1, RoHS, REACH, IEC 62040-1-2
Software / System Requirements
Software Included
APC Easy Ups Online SNMP Shutdown Wizard
OS Required
UNIX, Linux, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows 2000/XP/Vista/7/8
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
Dimensions & Weight
Dimensions & Weight (Shipping)
