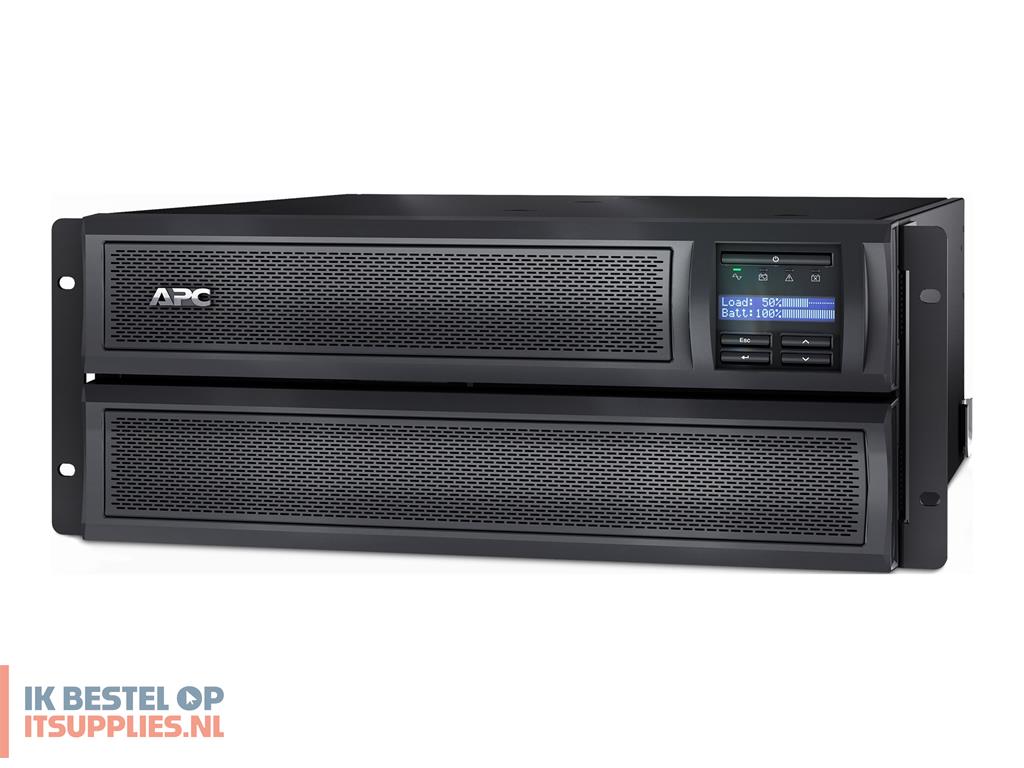

APC Smart-UPS X 2200 Rack/Tower LCD

Productcode: SMX2200HVNC | EAN/UPC: 0731304327158
2.163,79 excl.btw
APC Smart-UPS X 2200 Rack/Tower LCD - UPS (rack-mountable / external) - AC 230 V - 1980 Watt - 2200 VA - Ethernet 10/100, RS-232, USB - output connectors: 10 - 4U - black - with APC UPS Network Management Card - for P/N: AR106SH6, AR109SH6, AR112SH6, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP
  • Intuitive LCD interface
  • High frequency design
  • Auto recognition of external batteries
  • Predictive replace battery date
  • Green mode
  • Energy meter
  • Outlet group control
  • Sequenced shutdown and restart
  • Load shedding
  • Audible alarms
  • Pure sine wave output on battery
  • Multiple switched outlet groups
  • Wide input voltage range
  • Battery failure notification
  • High online efficiency
  • LED indicators
  • Overload protection
  • Cold-start capable
  • Hot-swappable batteries
  • Disconnected battery notification
  • Automatic self-test
  • Automatic restart of loads after UPS shutdown
  • Adjustable voltage-transfer points
  • Adjustable voltage sensitivity
  • Audible alarms
  • User-replaceable batteries
  • USB connectivity
  • Serial connectivity
  • Temperature-compensated battery charging
  • Scalable runtime
  • Intelligent battery management
  • Safety-agency approved
  • Rack/tower convertible
  • Power conditioning
  • Network manageable
  • Frequency and voltage regulation
  • Adjustable voltage sensitivity
  • Predictive failure notification
Op voorraad: 2 stuk(s)
Levertijd:
Product:
APC Smart-UPS X 2200 Rack/Tower LCD
2618,19 incl. 21% btw 2163,79excl. 21% btw
Voorraad: 2

Omschrijving

APC Smart-UPS X 2200 Rack/Tower LCD - UPS (rack-mountable / external) - AC 230 V - 1980 Watt - 2200 VA - Ethernet 10/100, RS-232, USB - output connectors: 10 - 4U - black - with APC UPS Network Management Card - for P/N: AR106SH6, AR109SH6, AR112SH6, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP
Product features
  • Intuitive LCD interface
    It provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • High frequency design
    It reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
  • Auto recognition of external batteries
    UPS recognizes when external battery packs are attached and automatically adjusts runtime.
  • Predictive replace battery date
    It dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Green mode
    Patent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Energy meter
    It provides actual kilowatt hours of usage for energy conscious users.
  • Audible alarms
    Audible alarms provide notification of changing flywheel conditions
  • Pure sine wave output on battery
    It simulates utility power to provide the highest degree of compatibility for active PFC servers and sensitive electronics.
  • Multiple switched outlet groups
    Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • Wide input voltage range
    Wide input voltage range is designed for harsh electrical environments to save battery life.
  • Battery failure notification
    It provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • High online efficiency
    It reduces utility costs, generates less heat.
  • LED indicators
    LED indicators provide easy-to-read status of your utility power conditions, UPS and battery.
  • Overload protection
    It safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
  • Cold-start capable
    It provides temporary battery power when the utility power is out.
  • Hot-swappable batteries
    It ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Automatic restart of loads after UPS shutdown
    It automatically starts up the connected equipment upon the return of utility power.
  • Adjustable voltage-transfer points
    It maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Adjustable voltage sensitivity
    It provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Audible alarms
    It provides notification of changing utility power and UPS conditions.
  • Serial connectivity
    It provides management of the UPS via a serial port.
  • Scalable runtime
    It allows additional run time to be quickly added as needed.
  • Intelligent battery management
    It maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Power conditioning
    It protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Network manageable
    It provides remote management of the UPS over the network.
  • Adjustable voltage sensitivity
    It provides the ability to adapt the power conditioner for optimal performance in specific power environments or generator applications.

Specificaties

General
Device Type
UPS - rack-mountable / external
Height (Rack Units)
4U
Colour
Black
Bundled with
APC UPS Network Management Card
Power Device
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 140 - 280 V
Frequency Provided
47 - 53 / 57 - 63 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C20
Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage
AC 230 V 47 - 53 / 57 - 63 Hz
Power Capacity
1980 Watt / 2200 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
645 Joules
Circuit Protection
Circuit breaker
Efficiency
98.1%
Battery
Quantity
1
Technology
Lead Acid
Run Time (Up To)
9.8 min at full load ¦ 25.3 min at half load
Recharge Time
3 hours
Networking
Remote Management Interface
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP
Expansion / Connectivity
Interfaces
1 x USB ¦ 1 x RS-232 ¦ 1 x EPO (emergency power off)
Expansion Slots
1 (total) / 0 (free) x SmartSlot
Miscellaneous
Cables Included
Serial cable ¦ USB cable ¦ Power cable 1.83 m
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, cold-start function
Compliant Standards
CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH
Software / System Requirements
Software Included
APC PowerChute Business Edition
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
55 dBA
Dimensions & Weight
Width
43.2 cm
Depth
48.3 cm
Height
17.8 cm
Weight
38.64 kg
Dimensions & Weight (Shipping)
Shipping Width
58.6 cm
Shipping Depth
63.3 cm
Shipping Height
33 cm
Shipping Weight
47.73 kg
Compatibility Information
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR106SH6, AR109SH6, AR112SH6, AR201, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR3810, AR3812, AR3814, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
