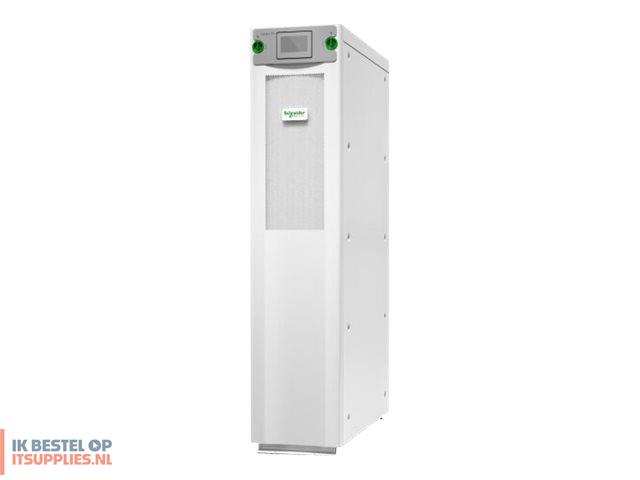

APC Schneider Electric Galaxy VS GVSUPS10KB2HS

Productcode: GVSUPS10KB2HS | EAN/UPC: -

€ 8.668,30 excl.btw

UPS - AC 380/400/415 V - 10 kW - 10000 VA - 3-phase - 7 Ah - Ethernet - white - RAL 9003 - with Start-Up Service 5X8

Op voorraad: 0 stuk(s)

Levertijd:

Product:
APC Schneider Electric Galaxy VS GVSUPS10KB2HS

€ 10488,64 incl. 21% btw € 8668,30excl. 21% btw

Winkelwagen

Stuur mij een notificatie bij voorraad

Omschrijving

Schneider Electric Galaxy VS GVSUPS10KB2HS - UPS - AC 380/400/415 V - 10 kW - 10000 VA - 3-phase - 7 Ah - Ethernet - white, RAL 9003 - with Start-Up Service 5X8

Specificaties

General

Device Type

UPS - external

Bundled Services

Start-Up Service 5X8

Colour

White, RAL 9003

Power Device

UPS Technology

On-line

Input Voltage

AC 380/400/415 V

Input Voltage Range

AC 340 - 460 V

Frequency Provided

50/60 Hz

Input Voltage Margin

± 15%

Input Wiring

3-phase

Frequency Required

40 - 70 Hz

Input Connectors

Hardwire 4-wire (3PH + G), hardwire 5-wire (3PH + N + G)

Output Voltage

AC 380/400/415 V ± 1% - 50/60 Hz

Max Electric Current

18 A

Power Capacity

10 kW / 10000 VA

Output Waveform

Sinewave

Efficiency

99% Eco mode, 96.2% at 75% Load, 99% ECOnversion mode, 97% double conversion mode, 92.8% at 25% Load, 95.4% at 50% Load, 96.5% at 100% Load

Power Factor (PF)

0.99

Total Harmonic Distortion (THD)

1 %

Battery

Type

Expandable

Technology

Lead Acid

Voltage Provided

480 V

Capacity

7 Ah

Networking

Remote Management Interface

Ethernet

Expansion / Connectivity

Interfaces

Management (Ethernet) - RJ-45

Expansion Slots

1 (free) x SmartSlot

Miscellaneous

Included Accessories

Dust filter

Features

Audible alarm, Parallel Capability, built-in static bypass, 4.3" touch screen LCD display

Compliant Standards

IEC 62040-3, IEC 62040-2, EN 62040-2, CSA C22.2 No. 107.3, IP20, EN 62040-3, IEC 62040-1, EN 62040-1, IEC 60721-4-2, UL 1778 5th edition

Manufacturer Warranty

Service & Support

Limited warranty - 1 year - on-site

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

55 dB

Dimensions & Weight

Width

33.3 cm

Depth

84.7 cm

Height

148.5 cm

Weight

245 kg

Dimensions & Weight (Shipping)

Shipping Width

64 cm

Shipping Depth

99 cm

Shipping Height

169 cm

Shipping Weight

270 kg

This data is supplied by 1WorldSync and matched through an automatic process. Truedata is not responsible for errors in this data.
