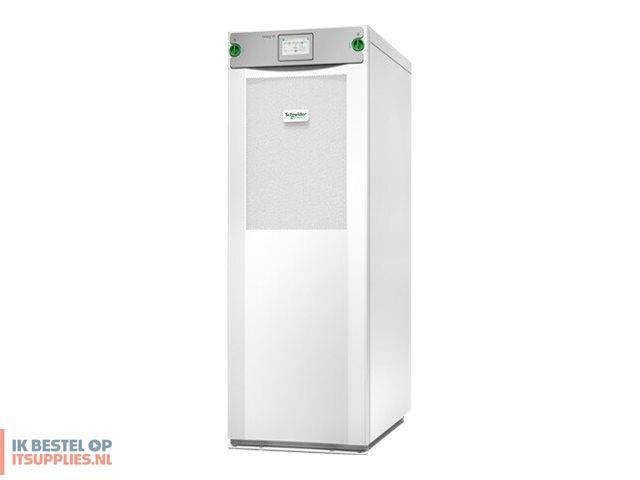

APC Schneider Electric Galaxy VS GVSUPS100KHS

Productcode: GVSUPS100KHS | EAN/UPC: 0731304342625

€ 17.479,84 excl.btw

Schneider Electric Galaxy VS GVSUPS100KHS - UPS - AC 400 V - 100 kW - 100000 VA - 3-phase - no battery - USB - RAL 9003 - with Start-Up Service 5X8

Front-access servicing
Modular UPS design
High efficiency in double conversion mode
ECOnversion mode
Input power factor correction
Parallel-redundant capable
Parallel-capacity capable
Compatible with Schneider Electric's lithium ion battery solution
Built-in backfeed protection
Flexible DC bus

Op voorraad: 0 stuk(s)

Levertijd:

Product:
APC Schneider Electric Galaxy VS GVSUPS100KHS

€ 21150,61 incl. 21% btw € 17479,84excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Schneider Electric Galaxy VS GVSUPS100KHS - UPS - AC 400 V - 100 kW - 100000 VA - 3-phase - no battery - USB - RAL 9003 - with Start-Up Service 5X8

Product features

Front-access servicing
Front-access servicing simplifies installation and UPS maintenance while minimizing space requirements.
Modular UPS design
Modular UPS design provides design redundancy and fast serviceability with improved mean time to repair, via self-diagnosing, field-replaceable modules.
High efficiency in double conversion mode
It provides consistently high power quality at high efficiency, even at low load levels. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
ECOnversion mode
This operating mode ensures ultra-high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.
Input power factor correction
Input power factor correction minimizes installation costs by enabling the use of smaller generators and cabling.
Parallel-redundant capable
Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy.
Parallel-capacity capable
It increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Compatible with Schneider Electric's lithium ion battery solution
It reduces system footprint and weight, cooling and maintenance requirements, and total cost of ownership. It also offers double the life of VRLA batteries, and improves backup storage predictability and manageability.
Built-in backfeed protection
Full built-in backfeed contactor ensures that no electricity is sent back to the grid.
Flexible DC bus
Flexible DC bus optimizes battery sizing and supports a wide range of energy storage technologies, including VRLA, li-ion, and NiCd batteries.

Specificaties

General

Device Type

UPS - external

Bundled Services

Start-Up Service 5X8

Colour

RAL 9003

Power Device

UPS Technology

On-line

Input Voltage

AC 400 V

Input Voltage Range

AC 380 - 415 V

Input Voltage Range (Adjustable)

AC 340 - 460 V

Frequency Provided

50/60 Hz

Input Wiring

3-phase

Frequency Required

40 - 70 Hz

Input Connectors

2 x hardwire 4-wire (3PH + G), hardwire 5-wire (3PH + N + G)

Output Voltage

AC 380/400/415 V 50/60 Hz

Power Capacity

100 kW / 100000 VA

Output Waveform

Sinewave

Power Factor (PF)

0.99

Battery

Type

No battery

Networking

Remote Management Interface

USB

Remote Management Protocol

SNMP, Modbus

Expansion / Connectivity

Interfaces

1 x management (USB)
1 x management
1 x LAN

Expansion Slots

1 SmartSlot

Miscellaneous

Included Accessories

Dust filter

Features

Touch screen interface, audible alarm, Parallel Capability, built-in static bypass, touch screen LCD display

Compliant Standards

IEC 62040-3, IEC 62040-2, FCC Part 15 A, IP21, EN 62040-2, CSA C22.2 No. 107.3, EN 62040-3, IEC 62040-1, EN 62040-1, IEC 60721-4-2, UL 1778 5th edition

Manufacturer Warranty

Service & Support

Limited warranty - 1 year - on-site

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

65 dBA

Dimensions & Weight

Width

52.1 cm

Depth

84.7 cm

Height

148.5 cm

Weight

250 kg

Dimensions & Weight (Shipping)

Shipping Width

64 cm

Shipping Depth

99 cm

Shipping Height

168 cm

Shipping Weight

275 kg

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Manufacturer's data sheet
