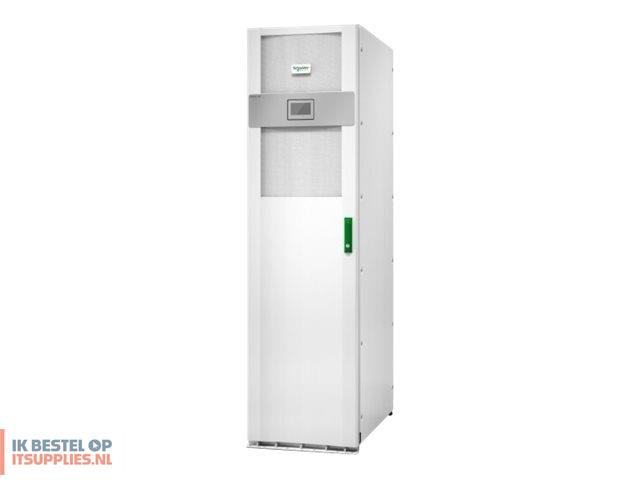

APC Schneider Electric Galaxy VS GVSUPS100KB5HS

Productcode: GVSUPS100KB5HS | EAN/UPC: -

€ 22.657,73 excl.btw

UPS - AC 380/400/415 V - 100 kW - 100000 VA - 3-phase - 9 Ah - Ethernet - white - with Start-Up Service 5X8

Op voorraad: 0 stuk(s)

Levertijd:

Product:
APC Schneider Electric Galaxy VS GVSUPS100KB5HS

€ 27415,85 incl. 21% btw € 22657,73excl. 21% btw

Winkelwagen

Stuur mij een notificatie bij voorraad

Omschrijving

Schneider Electric Galaxy VS GVSUPS100KB5HS - UPS - AC 380/400/415 V - 100 kW - 100000 VA - 3-phase - 9 Ah - Ethernet - white - with Start-Up Service 5X8

Specificaties

General

Device Type

UPS - external

Bundled Services

Start-Up Service 5X8

Colour

White

Power Device

UPS Technology

On-line

Input Voltage

AC 380/400/415 V

Input Voltage Range

AC 340 - 460 V

Frequency Provided

50/60 Hz

Input Voltage Margin

± 15%

Input Wiring

3-phase

Frequency Required

40 - 70 Hz

Output Voltage

AC 380/400/415 V ± 1% - 50/60 Hz

Power Capacity

100 kW / 100000 VA

Output Waveform

Sinewave

Efficiency

99% Eco mode, 99% ECOnversion mode, 97% double conversion mode

Power Factor (PF)

0.99

Battery

Type

Expandable

Voltage Provided

480 V

Capacity

9 Ah

Networking

Remote Management Interface

Ethernet

Remote Management Protocol

SNMP

Expansion / Connectivity

Interfaces

Management (Ethernet) - RJ-45

Miscellaneous

Included Accessories

Dust filter

Features

Audible alarm, Parallel Capability, built-in static bypass, touch screen LCD display

Compliant Standards

FCC Part 15, IEC 62040-1-1, RoHS, REACH, IP20, EN 62040-1, OSHPD

Manufacturer Warranty

Service & Support

Limited warranty - 1 year - on-site

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

65 dBA

Dimensions & Weight

Width

55 cm

Depth

84.7 cm

Height

197 cm

Weight

245 kg

Dimensions & Weight (Shipping)

Shipping Width

75.5 cm

Shipping Depth

101 cm

Shipping Height

208.2 cm

Shipping Weight

270 kg

This data is supplied by 1WorldSync and matched through an automatic process. Truedata is not responsible for errors in this data.
