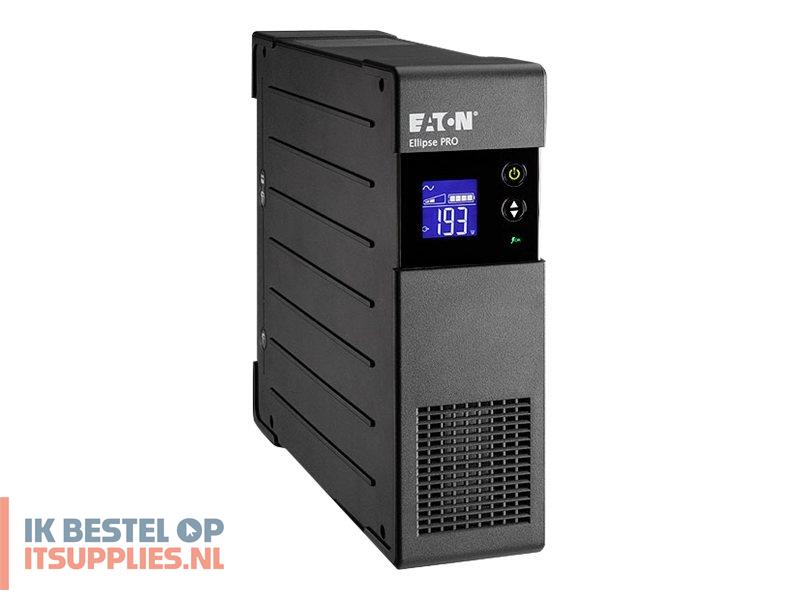

Eaton Ellipse PRO 1600 - UPS - AC 230 V

Productcode: ELP1600IEC | EAN/UPC: 0743172438256

€ 347,94 excl.btw

Eaton Ellipse PRO 1600 - UPS - AC 230 V - 1000 Watt - 1600 VA - 9 Ah - USB - output connectors: 8 - 2U - 19"

Op voorraad: 1 stuk(s)

Levertijd:

Product:
Eaton Ellipse PRO 1600 - UPS - AC 230 V

€ 421,01 incl. 21% btw € 347,94excl. 21% btw

Winkelwagen Offerte

Omschrijving

Eaton Ellipse PRO 1600 - UPS - AC 230 V - 1000 Watt - 1600 VA - 9 Ah - USB - output connectors: 8 - 2U - 19"

Specificaties

General

Device Type

UPS - external

Height (Rack Units)

Rack Size

19"

Power Device

UPS Technology

Line interactive

Input Voltage

AC 230 V

Input Voltage Range

AC 165 - 285 V

Input Voltage Range (Adjustable)

AC 150 - 285 V

Frequency Provided

50/60 Hz

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

4 x power IEC 60320 C13 (UPS and surge)
4 x power IEC 60320 C13 (surge)

Output Voltage

AC 220/230/240 V + 15% / - 20% - 50/60 Hz

Power Capacity

1000 Watt / 1600 VA

Dataline Surge Protection

Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line

Surge Suppression

Yes

Circuit Protection

Circuit breaker

Battery

Quantity

Technology

Lead Acid

Capacity

9 Ah

Run Time (Up To)

9 min at half load
5 min at 70% load

Networking

Remote Management Interface

USB

Expansion / Connectivity

Interfaces

1 x management (USB) - 4 pin USB Type B

Miscellaneous

Cables Included

USB cable - external

Rack Mounting Kit

Optional

Features

Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets

Compliant Standards

CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2

Software / System Requirements

Software Included

Eaton UPS Companion

Manufacturer Warranty

Service & Support

Limited warranty - 3 years
Limited warranty - batteries - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

35 °C

Humidity Range Operating

0 - 85%

Dimensions & Weight

Width

8.2 cm

Depth

39 cm

Height

27.5 cm

Weight

11.3 kg

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
