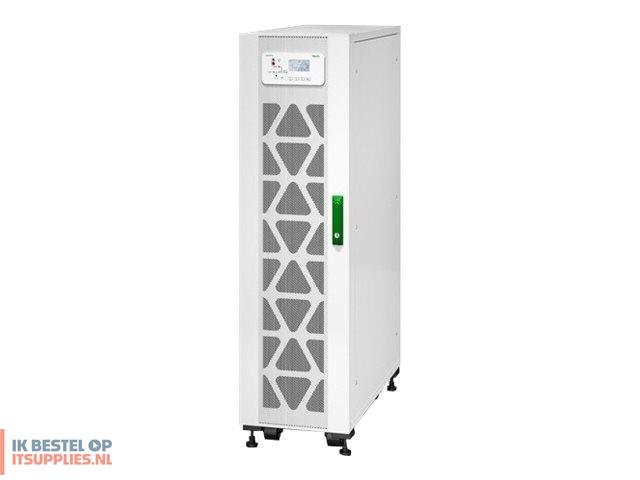

APC Schneider Electric Easy UPS 3S E3SUPS20KHB

Productcode: E3SUPS20KHB | EAN/UPC: 0731304340782

€ 5.696,74 excl.btw

Schneider Electric Easy UPS 3S E3SUPS20KHB - UPS - AC 400 V - 20 kW - 20000 VA - 3-phase - white

Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Replaceable dust filters protect the UPS in harsh environment
Saves your battery power for when you really need it - during power cuts

Op voorraad: 0 stuk(s)

Levertijd:

Product:
APC Schneider Electric Easy UPS 3S E3SUPS20KHB

€ 6893,06 incl. 21% btw € 5696,74excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Schneider Electric Easy UPS 3S E3SUPS20KHB - UPS - AC 400 V - 20 kW - 20000 VA - 3-phase - white

Product features

Robust power protection
The Schneider Electric Easy UPS 3S offers a reliable power capacity of 20,000 VA / 20 kW, ensuring your operations remain uninterrupted and efficient, even under fluctuating power conditions.
Wide input voltage range
Designed to handle a broad input voltage range of AC 304 - 477 V, this UPS adapts to varying power supplies, maintaining stability and protection.
Efficient temperature control
With an operating temperature range from 0°C to 40°C and a non-condensing humidity range of 0 - 95%, the UPS is built to perform in diverse environmental conditions without compromise.
Comprehensive compliance
Meeting global standards, including IEC 62040-1-1, IEC 62040-2, and more, the UPS demonstrates a commitment to safety, reliability, and environmental consciousness.

Specificaties

General

Device Type

UPS - external

Colour

White

Power Device

Input Voltage

AC 400 V

Input Voltage Range

AC 304 - 477 V

Frequency Provided

50/60 Hz

Input Wiring

3-phase

Frequency Required

45 - 65 Hz

Output Voltage

AC 400 V ± 3% - 50/60 Hz

Power Capacity

20 kW / 20000 VA

Miscellaneous

Included Accessories

Dust filter

Compliant Standards

IEC 62040-3, IEC 62040-1-1, IEC 62040-2, WEEE, IP20, EAC, RCM, ISTA 2B, IEC 62040-4

Manufacturer Warranty

Service & Support

Limited warranty - 1 year - on-site

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

60 dBA

Dimensions & Weight

Width

38 cm

Depth

92.8 cm

Height

140 cm

Weight

122 kg

Dimensions & Weight (Shipping)

Shipping Width

56.3 cm

Shipping Depth

101.4 cm

Shipping Height

164 cm

Shipping Weight

158 kg

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
