General
Device Type

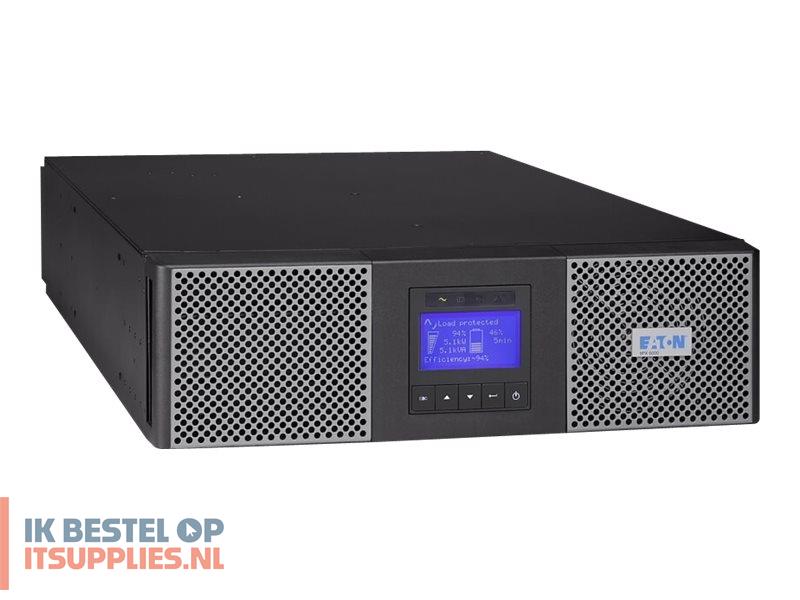

UPS - Power Factor Correction (PFC) - rack-mountable / external
Battery Enclosure Type
Plug-in module
Power Device
Supported Power Modules Qty
12
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 176 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Power Output Connectors Details
8 x power IEC 60320 C13
2 x power IEC 60320 C19
1 x hardwire
Output Voltage
AC 200/208/220/230/240 V ± 1% - 50/60 Hz
Power Capacity
5400 Watt / 6000 VA
Battery
Networking
Remote Management Interface
RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Expansion / Connectivity
Interfaces
1 x RS-232 - 9 pin D-Sub (DB-9)
1 x USB - 4 pin USB Type B
1 x EPO (emergency power off)
1 x management (Gigabit Ethernet) - RJ-45
Expansion Slots
1 (total) / 0 (free) x Expansion Slot
Miscellaneous
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), LCD display, LED indicators, deep discharge protection, automatic self-test
Compliant Standards
FCC Class A certified, UL, TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, CSA 22.2, EN 62040-1-1, EN 62040-2
Software / System Requirements
Software Included
Intelligent Power Software Suite
OS Required
Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Sustainability Information
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Dimensions & Weight
