General
Device Type

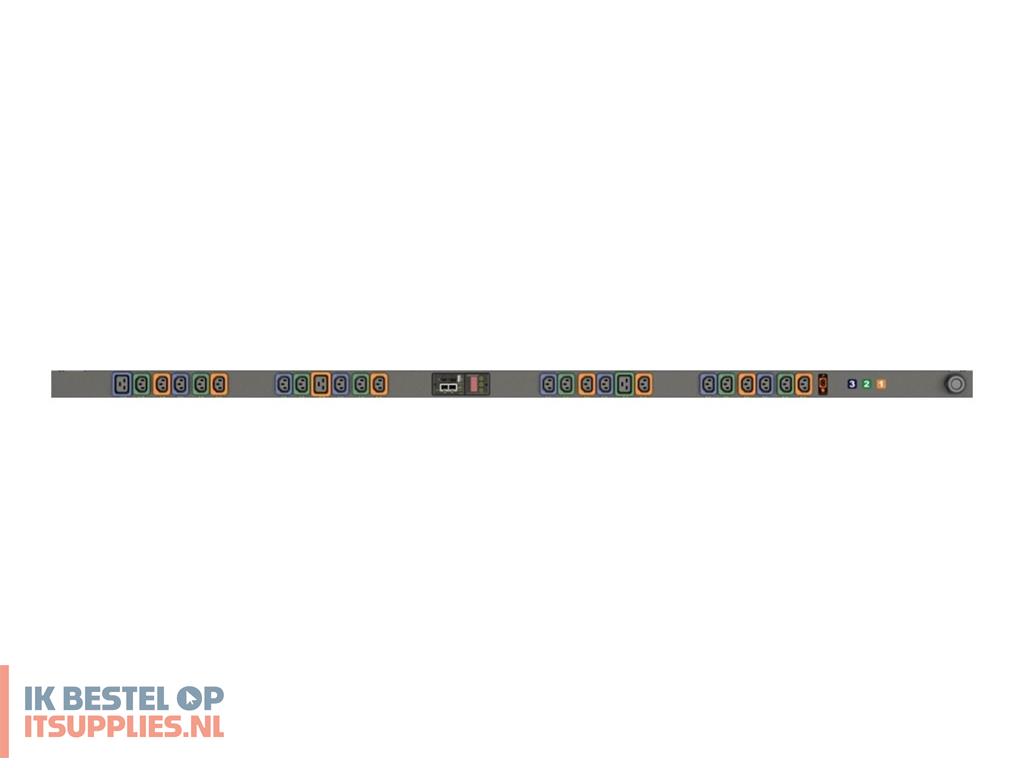

Power distribution unit - rack-mountable
Power Device
Input Voltage
AC 230/400 V
Input Voltage Range
AC 200 - 240 / 346 - 415 V
Input Wiring
3-phase WYE (star)
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60309 3P+N+E
Power Output Connectors Details
21 x power IEC 60320 C13
3 x power IEC 60320 C19
Networking
Remote Management Interface
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6, RSTP, TACACS+, LDAP, RADIUS
Expansion / Connectivity
Interfaces
2 x management (Fast Ethernet) - RJ-45
1 x sensor
1 x USB
1 x RS-232 - RJ-45
Miscellaneous
Cables Included
Power cable 3 m
Features
Vertical orientation, LED display, monitored
Compliant Standards
EN55024, RoHS, IEC 60950-1, China RoHS, RCM, EN 55032
Manufacturer Warranty
Service & Support
Limited warranty - 5 years with product registration (within 120 days of purchase)
Limited warranty - 3 years
Environmental Parameters
Max Operating Temperature
50 °C
Dimensions & Weight
Dimensions & Weight (Shipping)
