General
Product Form Factor

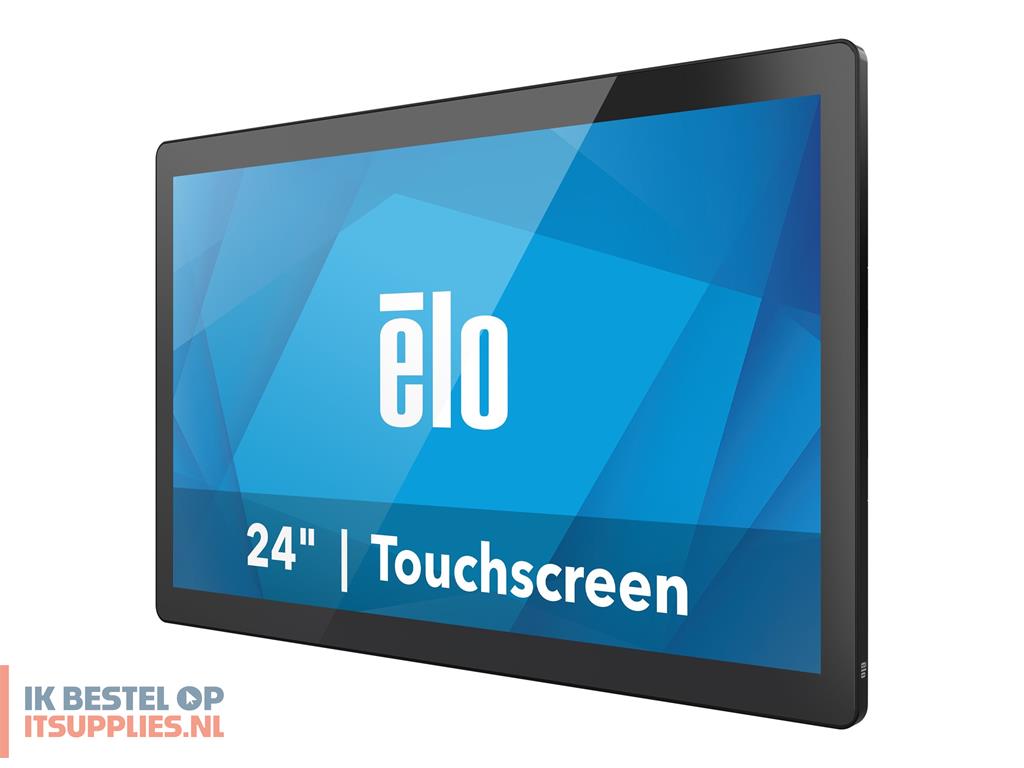

All-in-one
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Localisation
Region: Worldwide
Processor / Chipset
CPU
Intel Core i5 (12th Gen) i5-1245UL
Max Turbo Speed
4.4 GHz (P-core) / 2.5 GHz (E-core)
Processor Main Features
Intel Turbo Boost Technology 2
Cache Memory
RAM
Installed Size
8 GB (installed) / 32 GB (max)
Effective Memory Speed
4800 MHz
Rated Memory Speed
4800 MHz
Form Factor
SO-DIMM 262-pin
Slots
2 (Total) / 1 (empty)
Configuration Features
1 x 8 GB
Hard Drive
Interface Type
PCI Express
Features
NVM Express (NVMe)
Optical Storage
Monitor
Touchscreen
Yes (10-point multi-touch)
Native Resolution
1920 x 1080 (Full HD)
V-Sync Rate at Max Res.
60 Hz
Horizontal Viewing Angle
+89 / -89
Vertical Viewing Angle
+89 / -89
Image Brightness
250 cd/m²
Image Contrast Ratio
1000:1
Monitor Features
TouchPro Pro Projected Capacitive (PCAP) technology, 16.7 million colour depth
Graphics Controller
Graphics Processor
Intel Iris Xe Graphics
Audio Output
Speakers Included
2 x right / left channel
Networking
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
Expansion / Connectivity
Interfaces
1 x headphones/microphone
1 x LAN (Gigabit Ethernet)
4 x USB 3.0
4 x USB 2.0 - micro-USB
1 x PoweredUSB (24 V)
2 x PoweredUSB (12 V)
1 x serial - RJ-50 (powered)
1 x cash drawer (12V/24 V)
1 x DisplayPort/USB-C 3.0 (27 Watt charging)
Miscellaneous
Included Accessories
Mount screw, cable tie
Cables Included
RJ-50 to DB-9 cable
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot
VESA Mounting Interface
100 x 100 mm, VESA
Compliant Standards
UL, TUV, VCCI, cUL, CB, MIC, ANATEL, RCM, CoC, Mexico NOM, UKCA, Argentina S-Mark
Power
Voltage Required
AC 100/240 V (50/60 Hz)
Power Consumption Operational
46 Watt
Operating System / Software
OS Provided
Windows 10 IoT Enterprise 2021 LTSC
Sustainability Information
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80% (non-condensing)
