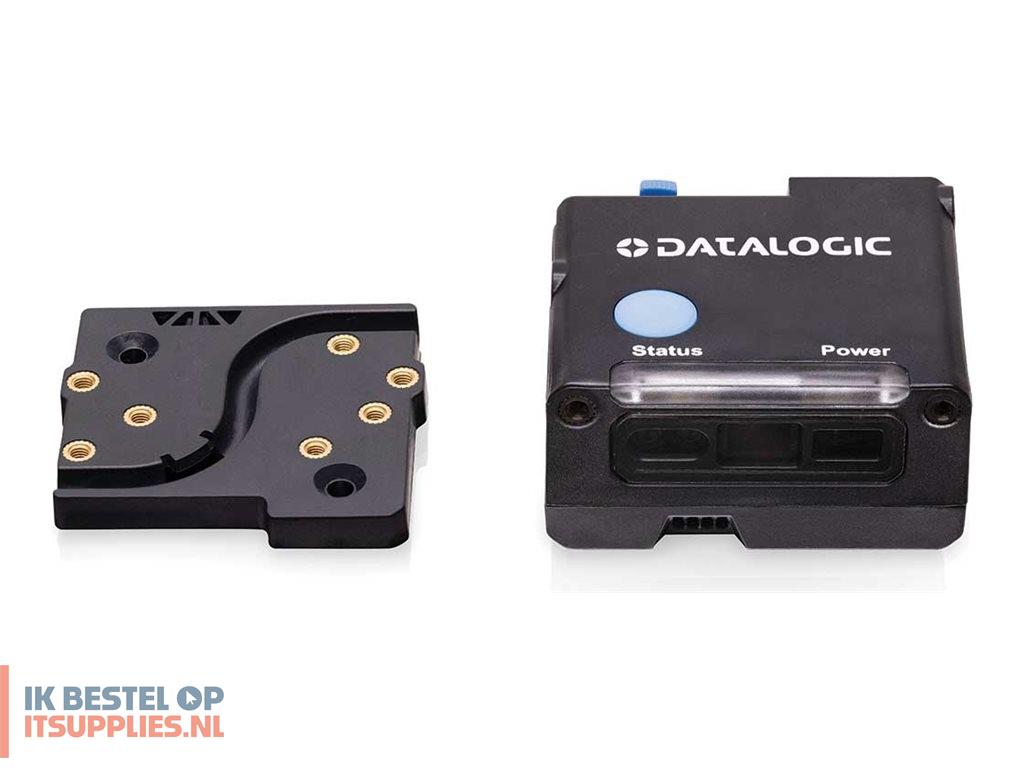

Datalogic Gryphon GFS4550 - Barcode scanner

Productcode: GFS4550-BKK2-RED | EAN/UPC: -

€ 272,65 excl.btw

Datalogic Gryphon GFS4550 - Barcode scanner - desktop - 2D imager - 60 frames / sec - decoded - RS-232

Reads a wide range of barcodes including Aztec code, QR code, and Data Matrix
Drop protection up to 1.5 m to concrete and IP54 rating for durability
60 frames/sec frame rate for high-speed, accurate scanning
Includes a 2 m serial cable for easy integration
LED indicators and beepers for immediate scan feedback

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Datalogic Gryphon GFS4550 - Barcode scanner

€ 329,91 incl. 21% btw € 272,65excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Datalogic Gryphon GFS4550 - Barcode scanner - desktop - 2D imager - 60 frames / sec - decoded - RS-232

Product features

Versatile scanning
Equipped with the ability to read a wide array of barcode types, from Australian Post to QR codes and beyond, this Datalogic Gryphon model ensures comprehensive scanning capabilities. Its advanced 2D imager technology facilitates the decoding of both traditional and modern barcode formats, making it a fit for diverse operational needs.
Durable design
Designed to withstand the rigors of daily use, the GFS4550 features drop protection up to 1.5 m onto concrete and an IP54 rating, ensuring it remains operational in challenging environments. This resilience against drops and environmental conditions makes it a reliable choice for busy workspaces.
High performance
With a frame rate of 60 frames/sec and a sensor resolution of 1280 x 800, this barcode scanner delivers high-speed, accurate scanning. The combination of red LEDs illumination and a wide scan field ranging from 15 mm to 82 cm supports efficient and flexible scanning tasks.
Efficient connectivity
The GFS4550 model offers seamless integration into existing systems with its RS-232 interface and includes a 2 m serial cable for immediate setup. Its wired connectivity ensures consistent, uninterrupted data transmission, essential for high-volume scanning operations.
User-friendly feedback
Operators receive immediate feedback through LED indicators and beepers, confirming successful scans. This feature enhances the user experience by providing clear, instant notifications, which is crucial in fast-paced environments.

Specificaties

General

Type

Barcode scanner - desktop

Colour

Black

Barcode

Interface Type

RS-232

Minimum Bar Width

3 mil

Scan Field Width

15 mm - 82 cm

Scan Element Type

2D imager - LED

Sensor Resolution

1280 x 800

Frame Rate

60 frames / sec

Skew (Degrees)

Pitch (Degrees)

Print Contrast Signal (PCS)

15%

Decode Capability

GS1 DataBar, Aztec code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR code, QR code, DotCode, Dotted DataMatrix, Australian Post, British Post, China Post, Japanese Post, IMB, Kix (Netherlands) Post, PLANET, Royal Mail, Postnet, EAN/JAN, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF417, PDF417, UPC-A, UPC-E, Digimarc Barcode, MicroPDF417

TTL Decoding

Decoded

Connectivity Technology

Wired

OK Notification

Beeper, LED indicator

Features

Red LEDs illumination, drop protection

Expansion / Connectivity

Interfaces

1 x digital input
1 x RS-232 - DB-9
1 x digital output

Miscellaneous

Cables Included

1 x serial cable - external - 2 m

Compliant Standards

IP54, China RoHS, EU RoHS, IEC 62471

Power

Voltage

DC 5 - 14 V

Electric Current Required

225 mA (operating)

Software

Software Included

Datalogic Aladdin, OPOS/JavaPOS Drivers

Dimensions & Weight

Width

5.5 cm

Depth

4.8 cm

Height

2.8 cm

Weight

152 g

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature

-20 °C

Max Operating Temperature

50 °C

Drop Specification

1.5 m to concrete

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
