General
Device Type

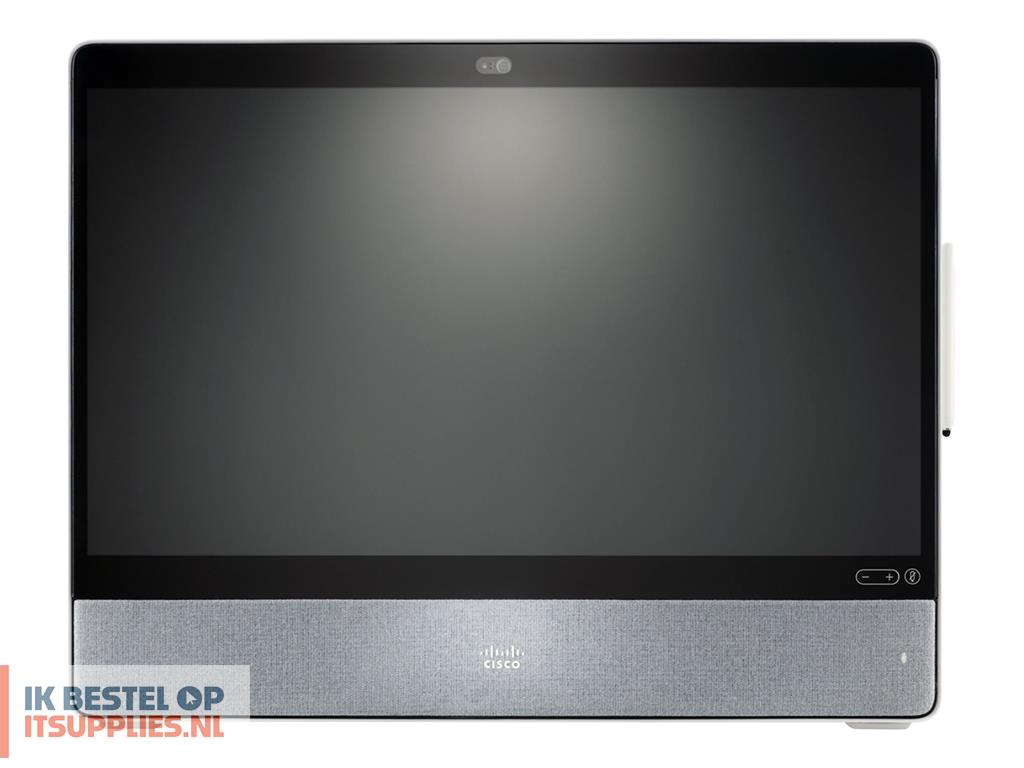

Video conferencing device
Quality of Service
IEEE 802.1Q (VLAN)
Display
Native Resolution
3840 x 2160
Image Brightness
300 cd/m²
Image Contrast Ratio
1000:1
Monitor Features
±89° horizontal viewing angle
Modem
Digital Signaling Protocol
H.323, SIP
Video Input
Type
Digital video camera (colour) - integrated
Digital Video Capture Resolution
3840 x 2160
Features
White balance, automatic brightness adjustment, Dual Pixel CMOS AF technology, privacy shutter, Auto Focus, 59° field of view (vertical), 71° field of view (horizontal)
Video Output
Supported Display Graphics
UHD (3840 x 2160)
Digital Video Standard
High-Definition Multimedia Interface (HDMI)
Audio Input
Type
8-microphone array - integrated
Audio Output
Frequency Response
60 - 20000 Hz
Input Device
Type
Stylus, 27" touchscreen
Networking
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Network / Transport Protocol
HTTP
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, G.711, G.722, G.729
Expansion / Connectivity
Interfaces
1 x display / video - HDMI input - 19 pin HDMI Type A
1 x USB-C - DisplayPort input - 24 pin USB-C
1 x display / video - HDMI output - 19 pin HDMI Type A
1 x audio - output - mini-phone 3.5 mm
2 x network - Ethernet 1000Base-T - RJ-45
3 x USB 2.0 - 4 pin USB Type A
1 x USB 2.0 - 5 pin Micro-USB Type A
Miscellaneous
Cables Included
1 x HDMI cable - 1.5 m
1 x USB-C cable - 1.8 m
1 x network cable - 3 m
Compliant Standards
FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, NRTL, Directive 2011/65/EU, Directive 2002/96/EU, Directive 2014/35/EU, Directive 2014/30/EU, FCC CFR47 Part 15 E, Directive 2014/53/EU
Power
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
200 Watt
Software / System Requirements
Software Included
Cisco Webex Room OS
Manufacturer Warranty
Service & Support
Limited warranty - 90 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 90% (non-condensing)
