General
Product Type

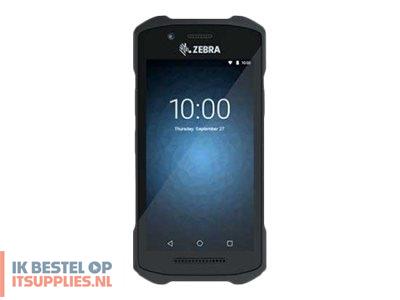

Data collection terminal - rugged
Operating System
Android 10
Display
Type
5" colour - LED backlight
Features
Corning Gorilla glass, capacitive touch screen
Processor
Processor
Qualcomm Snapdragon 660 660
Processor Clock Speed
1.8 GHz
Memory
Supported Flash Memory Cards
microSD
Max Supported Capacity
128 GB
Communications
Cellular Technology
3G, 4G
Cellular Protocols
GSM, UMTS, FDD LTE, TDD LTE
Band
GSM 850/900/1800/1900 / UMTS / LTE B1/B19/B2/B20/B28/B3/B38/B4/B40/B41/B5/B7/B8
Wireless Connectivity
802.11a/b/g/n/ac, NFC, Bluetooth 5.0 LE
Security Protocols & Features
LEAP, WEP, WPA, WPA2, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, MS-CHAPv2, PEAPv0, PEAPv1, EAP-GTC, EAP-MSCHAPv2, EAP-MSCHAP, EAP-PWD
Rear Camera
Sensor Resolution
13 Megapixel
Front Camera
Sensor Resolution
5 Megapixel
Navigation System
Receiver
A-GPS/GPS/GLONASS/Gallileo/Beidou
Multimedia
Audio
Two microphones, speaker
Input Device
Barcodes
Scan Element Type
2D imager
RFID
RFID Specification
ISO 15693, Mifare, Felica, ISO 14443A, ISO 14443B
Software
Preloaded Software
Google Mobile Services, Mobility DNA solutions
Expansion and Connectivity
Expansion Slots
1 x microSD ¦ 1 x Nano-SIM card
Interfaces
1 x USB-C/USB 2.0
Battery
Miscellaneous
Sensors
Ambient light sensor, proximity sensor, 3-axis accelerometer with MEMS gyro
Features
LED indicator, capacitive touch screen, SecureBoot, MU-MIMO technology, push-to-talk speaker, Drop Protection, SE4100 imager, 1.2 m drop to concrete resistant, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air), back alert button
Included Accessories
Power adapter
Compliant Standards
MIL-STD 810G, IP67, RoHS 2011/65/EU, GMS, REACH SvHC, REACH 2006/1907, Directive 2015/863
Localisation
Rest of World
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
-10 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-30 °C
Max Storage Temperature
70 °C
