General
Product Type

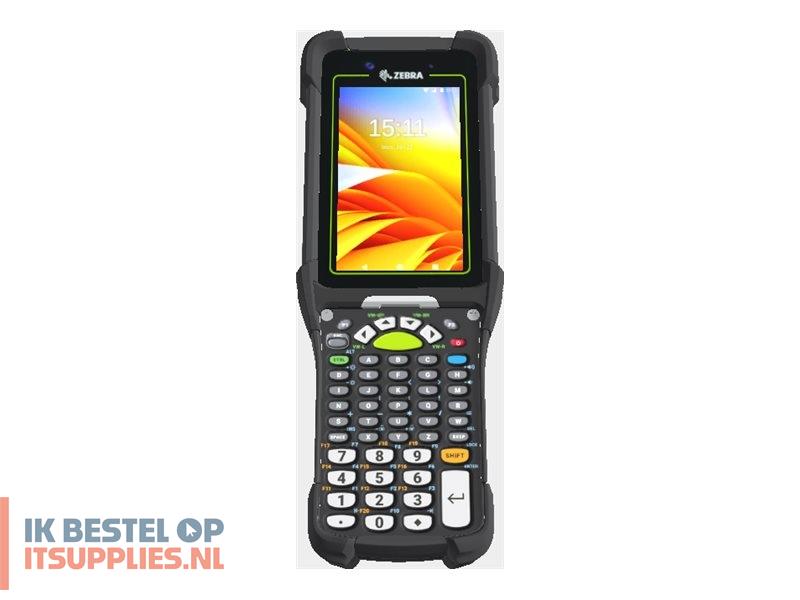

Data collection terminal - rugged
Display
Features
Corning Gorilla glass, Capacitive Dual Touch Display Technology, glove touch mode, stylus touch mode, scan trigger key
Processor
Processor
Qualcomm Snapdragon 4490
Processor Clock Speed
2.4 GHz
Memory
Supported Flash Memory Cards
microSD, microSDHC, microSDXC
Max Supported Capacity
2 TB
Communications
Wireless Connectivity
802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, NFC
Security Protocols & Features
WEP, WPA, WPA2, TKIP, AES, WPA3-Personal, WPA3-SAE, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, EAP-TTLS, PAP, MS-CHAP, MS-CHAPv2, EAP-TLS, PEAPv0, PEAPv1, EAP-GTC, LEAP, EAP-PWD, GCMP, WPA3-OWE
Rear Camera
Sensor Resolution
16 Megapixel
Focus Adjustment
Automatic
Front Camera
Sensor Resolution
8 Megapixel
Multimedia
Input Device
Type
Touch-screen, backlit keypad, VT Emulator keypad
Barcodes
Scan Element Type
2D imager
RFID
RFID Specification
ISO 14443A, ISO 14443B, Felica, ISO 15693
Software
Preloaded Software
Google Mobile Services
Expansion and Connectivity
Expansion Slots
1 x microSD
Battery
Technology
PowerPrecision+ - Lithium Ion
Miscellaneous
Sensors
3-axis accelerometer with MEMS gyro, light sensor, eCompass
Features
2x2 MU-MIMO technology, SE4770MR Imager, upgradable to Android 17, Gun Form Factor, ESD protection up to 15 kV (air), ESD protection up to 8 kV (direct), Interactive Sensor Technology (IST), push-to-talk speaker, biometric facial recognition, ESD protection up to 8 kV (indirect), vibration
Compliant Standards
IP65, IP68, Bluetooth Class 2, MIL-STD-810H, EN/IEC 63000:2018, RoHS, ROHS Directive 2011/65/EU
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
