General
Product Type

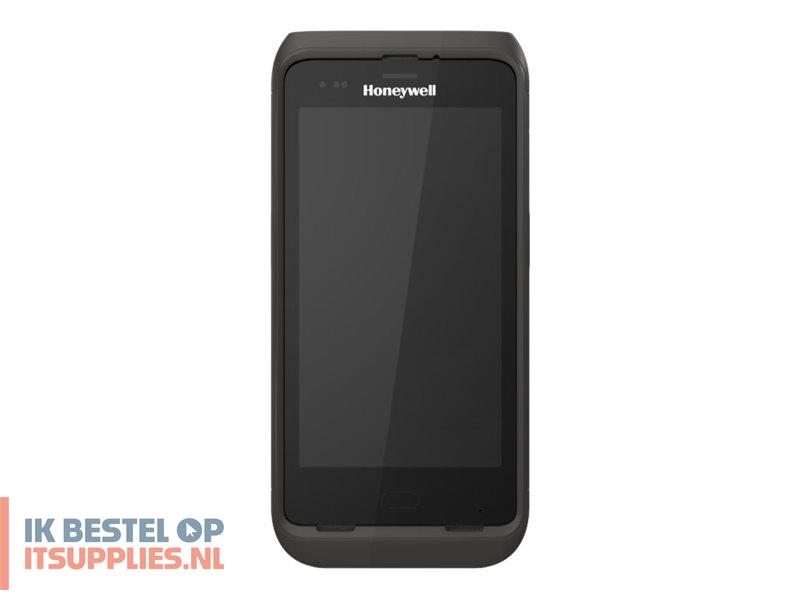

Data collection terminal - rugged
Operating System
Android 11
Display
Type
5" colour - LED backlight
Features
Glove touch mode, rain sensing touch mode, optical bonding, Corning Gorilla glass 5, capacitive touch screen
Processor
Processor
Qualcomm QCS4290/QCM4290
Processor Clock Speed
2 GHz
Memory
Supported Flash Memory Cards
microSD, microSDHC, microSDXC
Max Supported Capacity
512 GB
Communications
Cellular Protocols
GSM, UMTS, HSPA+, LTE Advanced
Max Transfer Rate
390 Mbps
Wireless Connectivity
NFC, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Security Protocols & Features
LEAP, WEP, WPA, WPA2, EAP-TTLS, EAP-TLS, WPA2-Enterprise, OPEN, EAP-PWD, WPA-Enterprise, WPA3, WPA3-Enterprise, EAP-PEAP
Bluetooth Profiles
Hands-Free Profile (HFP), Object Push Profile (OPP), Serial Port Profile (SPP), Advanced Audio Distribution Profile (A2DP), Audio/Video Remote Control Profile (AVRCP), Phonebook Access Profile (PBAP), Generic Attribute Profile (GATT)
Rear Camera
Sensor Resolution
13 Megapixel
Focus Adjustment
Automatic
Front Camera
Sensor Resolution
8 Megapixel
Navigation System
Receiver
A-GPS/GPS/GLONASS/Gallileo/Beidou
Multimedia
Audio
Three microphones, speaker
Barcodes
Scan Element Type
2D imager
RFID
RFID Specification
ISO 15693, Mifare, Felica, DESFire, ISO 14443A, ISO 14443B, ISO/IEC 18092 Type F
Software
Preloaded Software
Honeywell SDK, Google Mobile Services, Honeywell Mobility Edge Utilities and Demos
Expansion and Connectivity
Expansion Slots
1 x microSDXC ¦ 2 x Nano-SIM card
Interfaces
Headphones mini jack (3.5mm) ¦ USB-C
Battery
Miscellaneous
Sensors
Accelerometer, ambient light sensor, proximity sensor, magnetometer, hall sensor, gravity sensor, gyroscope
Features
Moisture resistant, drop-resistant, microphone with noise-cancellation, warm swap, QC3.0 Quick Charge, 2x2 MiMo function, ESD protection, Voice over Internet Protocol (VoIP), Honeywell S0703 imager
Compliant Standards
IP68, IP65, HAC (Hearing Aid Compatible), MIL-STD 810H
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-30 °C
Max Storage Temperature
70 °C
