General
Product Type

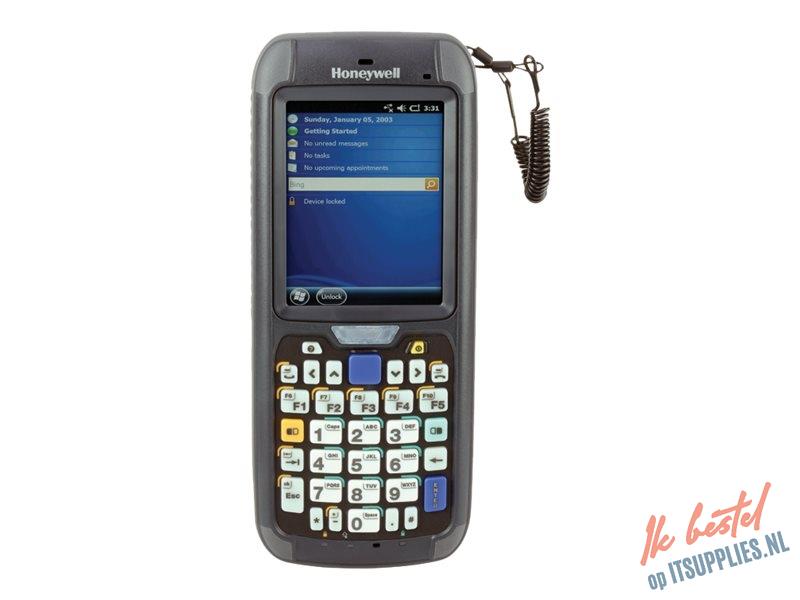

Data collection terminal - rugged
Operating System
Microsoft Windows Embedded Handheld 6.5
Display
Type
3.5" colour (transmissive) - LED backlight
Colour Depth
64K colours (16-bit)
Features
Corning Gorilla glass
Processor
Processor
Texas Instruments OMAP4470
Processor Clock Speed
1.5 GHz
Memory
Supported Flash Memory Cards
microSD, microSDHC
Max Supported Capacity
32 GB
Communications
Cellular Technology
3G, 4G
Cellular Protocols
GSM, CDMA, GPRS, UMTS, EDGE, HSPA+
Band
GSM 850/900/1800/1900 / UMTS 800/850/900/1900/2100 / CDMA 800/1900
Max Transfer Rate
14.4 Mbps
Wireless Connectivity
802.11a/b/g/n, Bluetooth 4.0
Security Protocols & Features
WEP, WPA, WPA2, AES-CCMP, TKIP
Rear Camera
Sensor Resolution
5 Megapixel
Focus Adjustment
Automatic
Navigation System
Receiver
GPS/GLONASS - 12-channel
Multimedia
Input Device
Barcodes
Scan Element Type
2D imager
Software
Preloaded Software
ScanNGo, CloneNGo
Expansion and Connectivity
Expansion Slots
1 x microSDHC
Battery
Miscellaneous
Sensors
Accelerometer, ambient light sensor
Compliant Standards
FCC Class B certified, C-Tick, BSMI, DEMKO, RoHS, ICES Class B, MIL-STD 810G, WEEE, A-Tick, ANATEL, cULus, GOST-R, IP67, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
60 °C
Humidity Range Operating
0 - 95% (non-condensing)
Min Storage Temperature
-30 °C
Max Storage Temperature
70 °C
