General
Product Type

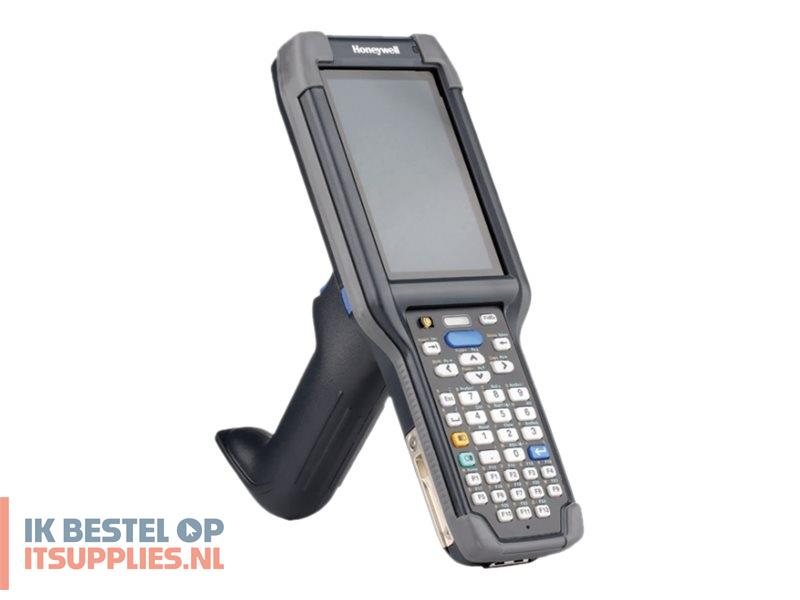

Data collection terminal - rugged
Operating System
Android 8.0 (Oreo)
Display
Type
4" colour - LED backlight
Features
Outdoor viewable, glove touch mode, backlit, optical bonding, capacitive touch screen
Processor
Processor
Qualcomm Snapdragon
Processor Clock Speed
2.2 GHz
Memory
Supported Flash Memory Cards
microSD, microSDHC, microSDXC
Max Supported Capacity
512 GB
Communications
Wireless Connectivity
802.11a/b/g/n/ac, NFC, Bluetooth 5.0
Security Protocols & Features
LEAP, WEP, TLS, WPA, WPA2, IPsec, TTLS, PEAP, CCXv4, OPEN, PWD
Bluetooth Profiles
Hands-Free Profile (HFP), Object Push Profile (OPP), Serial Port Profile (SPP), Advanced Audio Distribution Profile (A2DP), Audio/Video Remote Control Profile (AVRCP), Phonebook Access Profile (PBAP), Generic Attribute Profile (GATT)
Rear Camera
Sensor Resolution
13 Megapixel
Focus Adjustment
Automatic
Multimedia
Input Device
Barcodes
Scan Element Type
2D imager
Software
Preloaded Software
Google Mobile Services
Expansion and Connectivity
Expansion Slots
1 x microSD
Battery
Miscellaneous
Sensors
Accelerometer, ambient light sensor, gyro sensor, hall sensor
Features
Moisture resistant, drop-resistant, push-to-talk speaker, 2x2 MiMo function, Voice over Internet Protocol (VoIP), 6803FR FlexRange Slim Imager
Compliant Standards
FCC, MIL-STD 810G, IP64, IEC 60068-2-32
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95% (non-condensing)
Min Storage Temperature
-30 °C
Max Storage Temperature
70 °C
