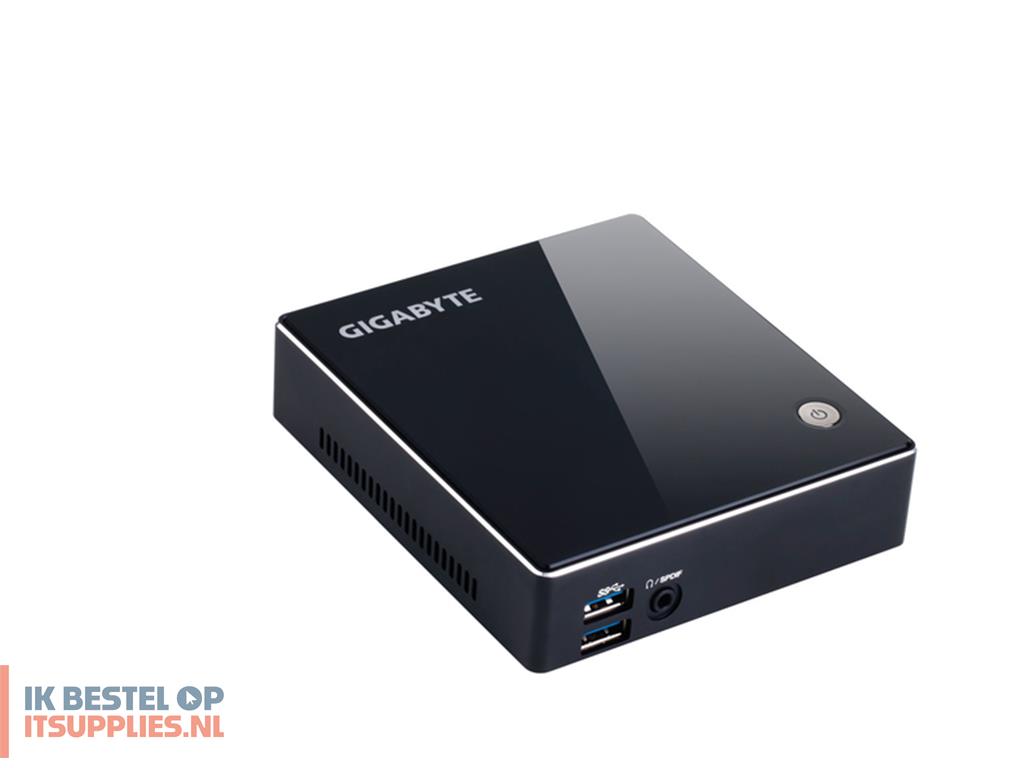

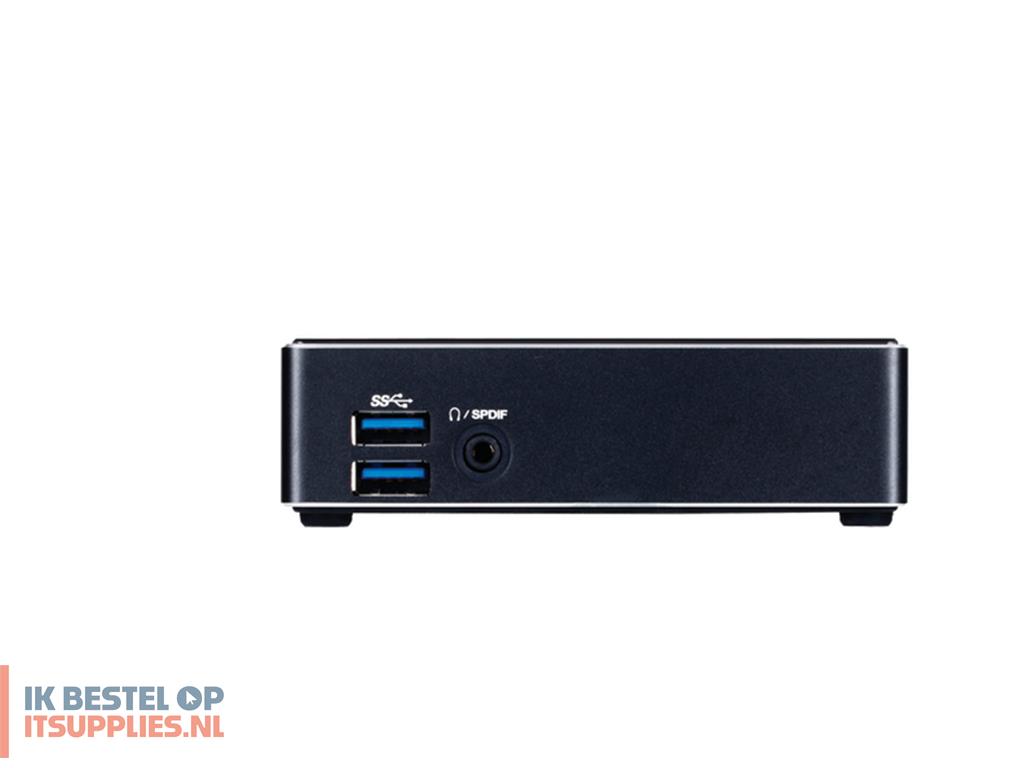

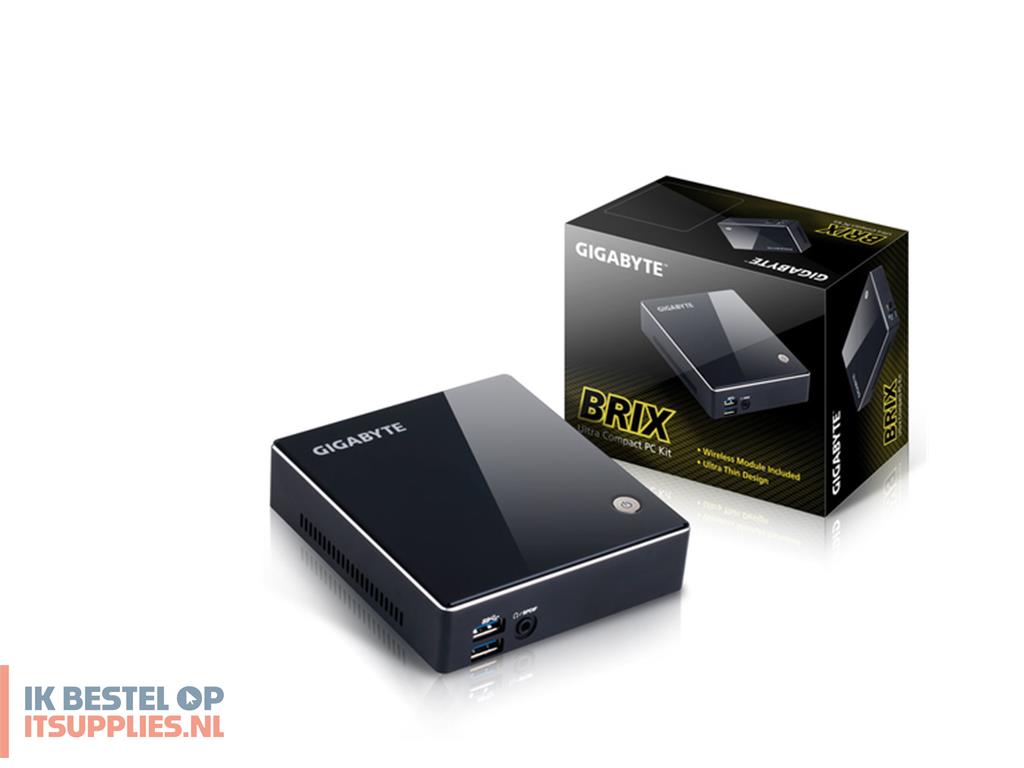

GIGABYTE Brix. Type behuizing: Nettop, Type product: Mini PC barebone. Processor socket: BGA 1168. Ondersteunde geheugen types: DDR3-SDRAM, Aantal geheugenslots: 2, Maximum intern geheugen: 16 GB. Aantal Ethernet LAN (RJ-45)-poorten: 1. Bluetooth-versie: 4.0
Processor
Processorfamilie
Intel® Core™ i7
Processorgeneratie
Vierde generatie Intel® Core™ i7
Processor aantal threads
4
Maximale turbofrequentie van processor
3 GHz
Frequentie van processor
1,8 GHz
Processor lithografie
22 nm
Thermal Design Power (TDP)
15 W
Codenaam processor
Haswell
Processorserie
Intel Core i7-4500 Mobile series
Geheugen
Geheugen slots type
SO-DIMM
Maximum intern geheugen
16 GB
Supported memory clock speeds
1333,1600 MHz
Ondersteunde geheugen types
DDR3-SDRAM
Grafisch
Ingebouwde grafische adapter
Ja
Grafische adapter-familie
Intel
On-board graphics adapter model
Intel® HD Graphics 4400
Prestatie
Processor socket
BGA 1168
Aantal ondersteunde processoren
1
Compatibele processors
Intel® Core™ i7
Ondersteunde processor frequentie ( max)
3 GHz
Audiosysteem
Realtek ALC269
Netwerk
Netwerkfuncties
802.11b/g/n
LAN controller
Realtek RTL8111G
Poorten & interfaces
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
4
Aantal Ethernet LAN (RJ-45)-poorten
1
Mini DisplayPort kwantiteit
1
Uitbreidingsmodules
PCI Express slots versie
2.0
PCI Express configuraties
2x4
Design
Kleur van het product
Zwart
Type product
Mini PC barebone
Paneelmontage-interface
75 x 75,100 x 100 mm
Processor speciale functies
Intel® High Definition Audio (Intel® HD Audio)
Ja
Ingebouwde opties beschikbaar
Nee
Intel® Rapid Storage Technology
Ja
Intel® Anti-Theft Technology (Intel® AT)
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Intel® Quick Sync Video Technology
Ja
Intel® InTru™ 3D Technology
Ja
Intel® Wireless Display (Intel® WiDi)
Ja
Intel® Clear Video HD Technology (Intel® CVT HD)
Ja
Intel® Turbo Boost Technology
2.0
Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Nee
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® My WiFi Technology (Intel® MWT)
Ja
Enhanced Intel SpeedStep Technology
Ja
Thermal Monitoring Technologies
Ja
Intel® Identity Protection Technology (Intel® IPT)
Ja
Intel® Trusted Execution Technology
Nee
Intel® ME Firmware-versie
9.5
Intel® Matrix Storage Technology (Intel® MST)
Ja
Intel® Smart Connect Technology
Ja
Intel® Virtualization Technology (VT-x)
Ja
Overige specificaties
Aantal geïnstalleerde processoren
1
Afmetingen (B x D x H)
29,9 x 107,6 x 114,4 mm
Stroomvoorziening
100 - 240V AC
Aantal producten inbegrepen
1 stuk(s)
