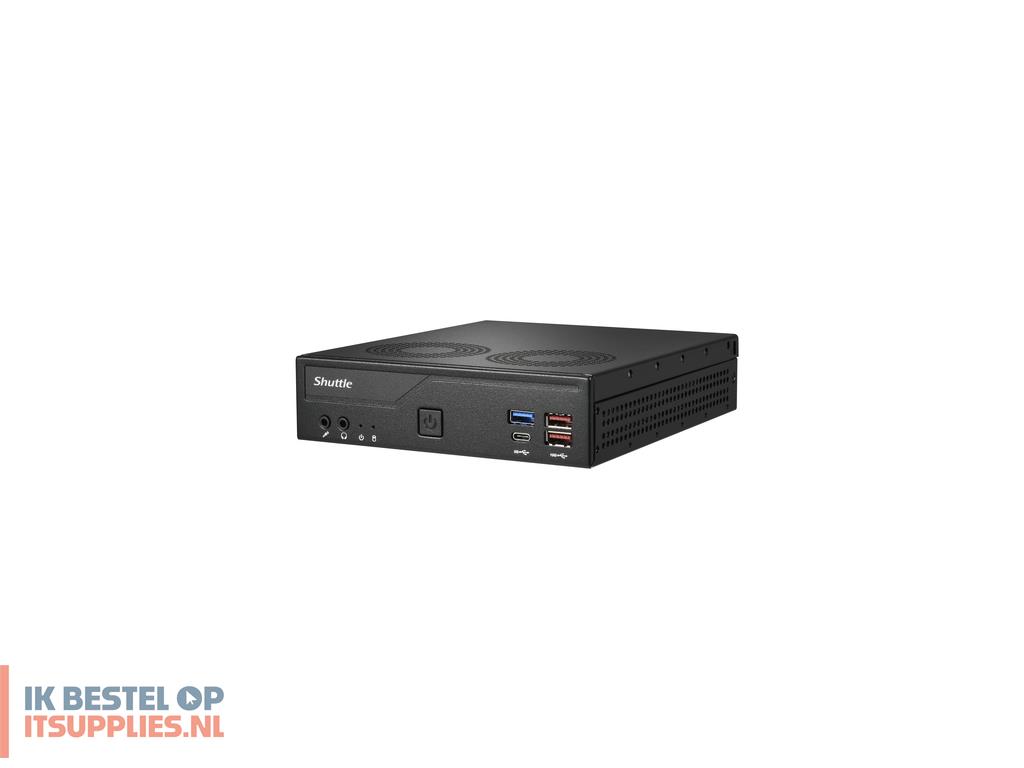

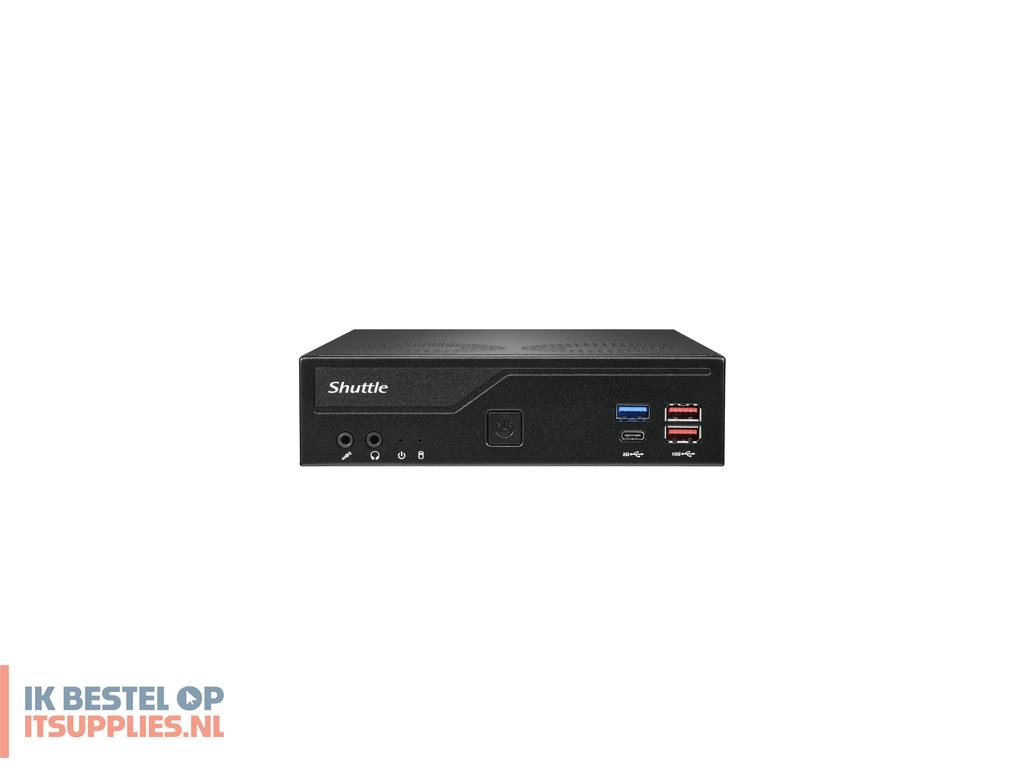

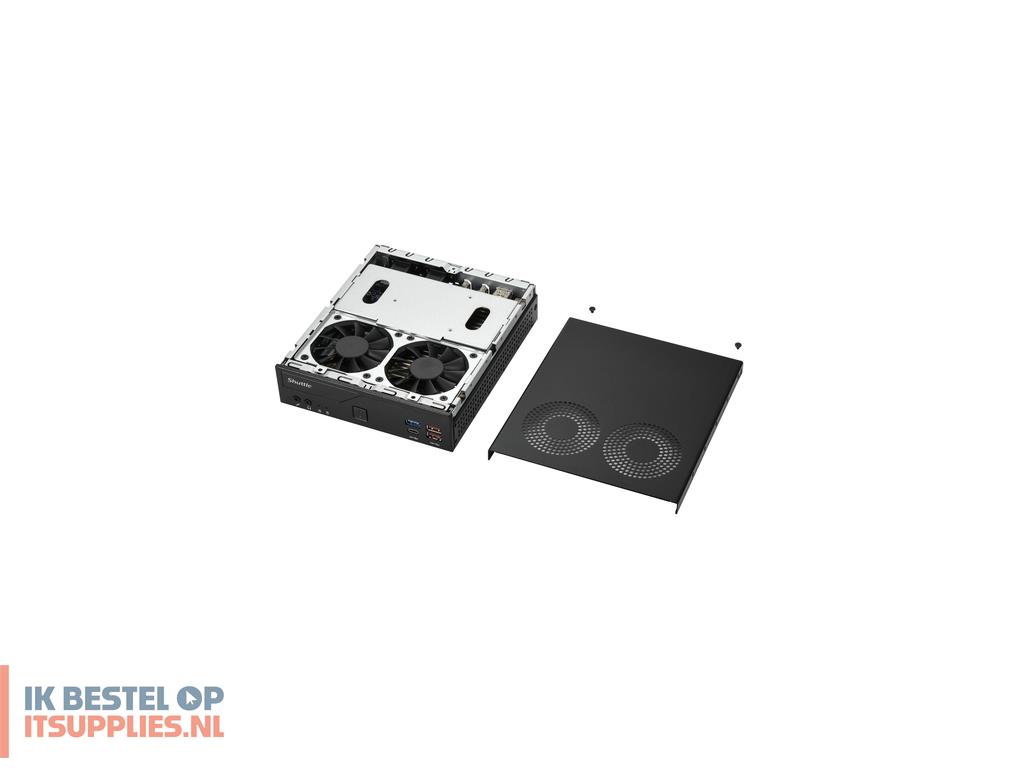

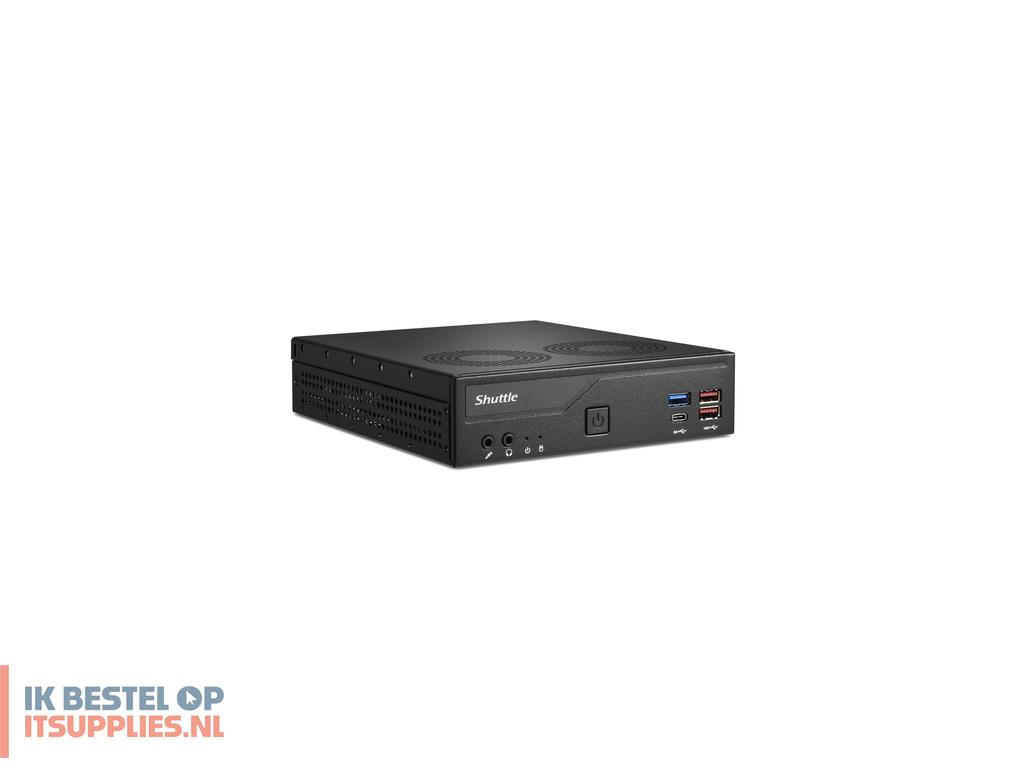

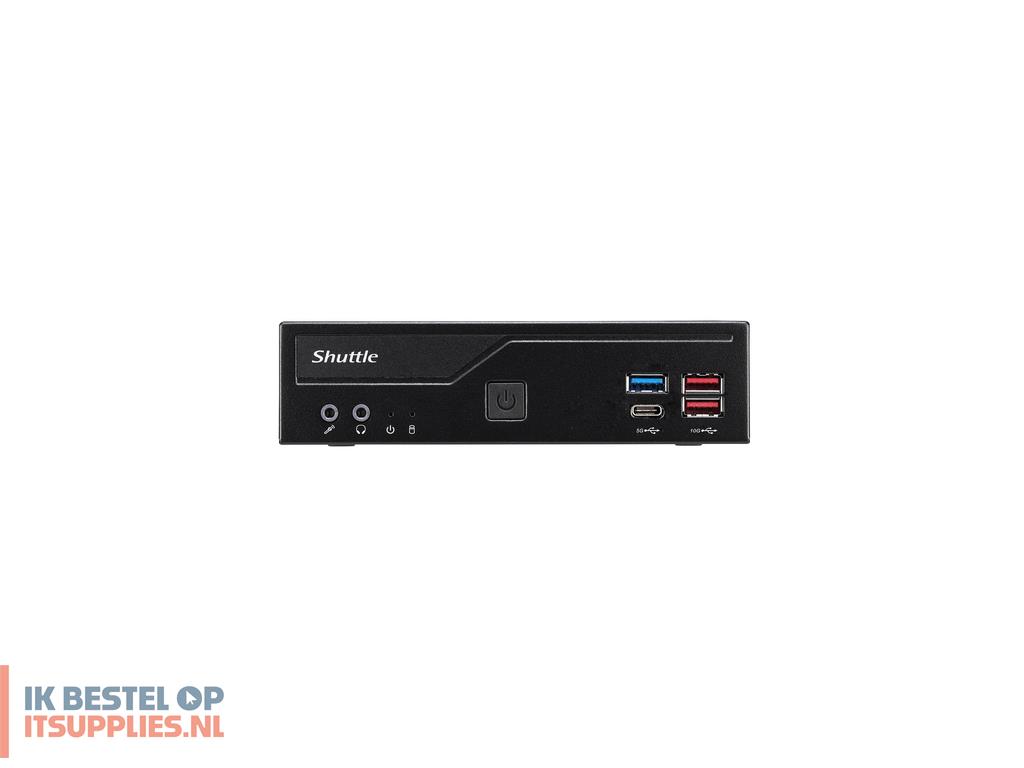

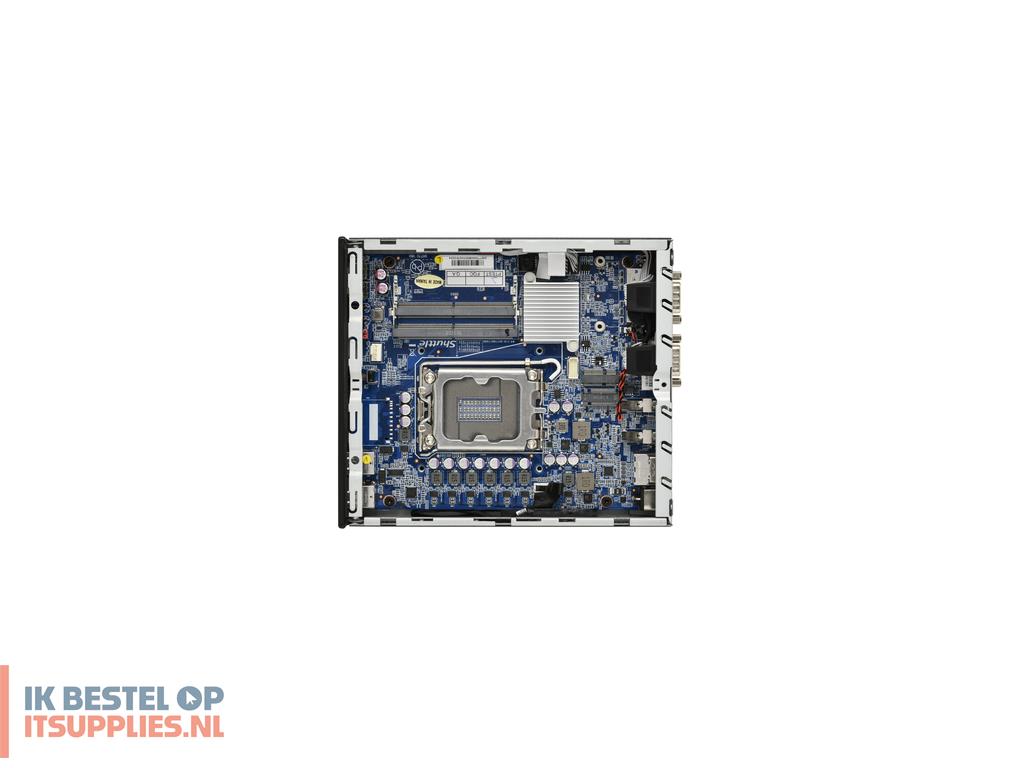

Shuttle Slim PC DH770 , S1700, 2x HDMI, 2x DP , 2x 2.5G LAN, 2x COM, 8x USB, 1x 2.5", 2x M.2, 24/7 permanent gebruik, incl. VESA. Type behuizing: 1,35L maat pc, Type product: Mini PC barebone. Chipset moederbord: Intel H770, Processor socket: LGA 1700, BIOS type: UEFI AMI. Ondersteunde geheugen types: DDR5-SDRAM, Aantal geheugenslots: 2, Maximum intern geheugen: 64 GB. Ondersteunde types opslag-drives: HDD & SSD, Opslag schijf-interface: PCI Express, SATA III. Aantal Ethernet LAN (RJ-45)-poorten: 2. Type koeling: Actief. Netvoeding: 120 W
Geheugen
Geheugen slots type
SO-DIMM
Maximum intern geheugen
64 GB
Supported memory clock speeds
5600 MHz
Ondersteunde geheugen types
DDR5-SDRAM
Geheugen kanaal
Dubbelkanaals
Opslagmedia
Ondersteunde types opslag-drives
HDD & SSD
Opslagschijf afmetingen ondersteund
2.5,M.2
Opslag schijf-interface
PCI Express, SATA III
Grafisch
Ingebouwde grafische adapter
Nee
Audio
Ingebouwde luidsprekers
Nee
Netwerk
LAN controller
Intel I226-LM

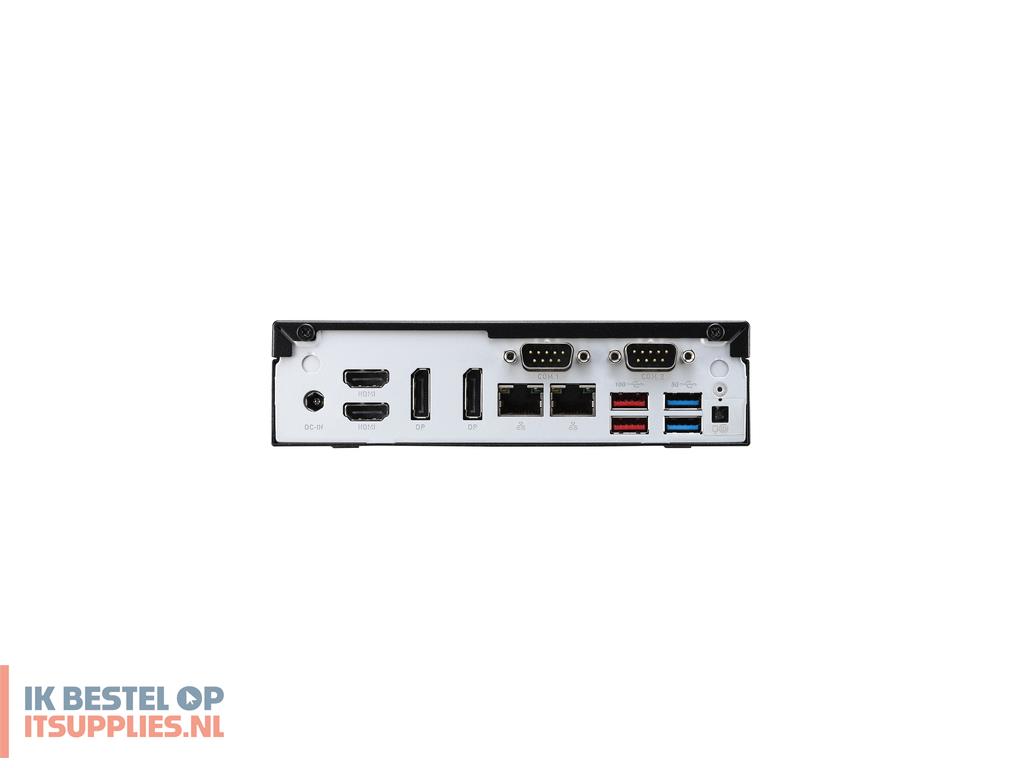

Poorten & interfaces
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
3
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
4
Microfoon, line-in ingang
Ja
Combo koptelefoon/microfoon port
Ja
Aansluiting voor netstroomadapter
Ja
Design
Type behuizing
1,35L maat pc
Kleur van het product
Zwart
Type product
Mini PC barebone
LED-indicatoren
HDD, Stroom
Materiaal behuizing
Metaal
Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington
Paneelmontage-interface
100 x 75 mm
Prestatie
Chipset moederbord
Intel H770
Processor socket
LGA 1700
Aantal ondersteunde processoren
1
Compatibele processors
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
2.0
Audiochip
Realtek ALC888S
Technische details
Certificaten van naleving
BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733080
Duurzaamheid
Duurzaamheidscertificaten
ENERGY STAR, ErP
Energie
Soort voeding
Externe AC-adapter
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
AC-adapter, uitgangsspanning
19 V
AC-adapter, uitgangsstroom
6,32 A
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Gewicht en omvang
Gewicht verpakking
2,1 kg
