General
Product Type

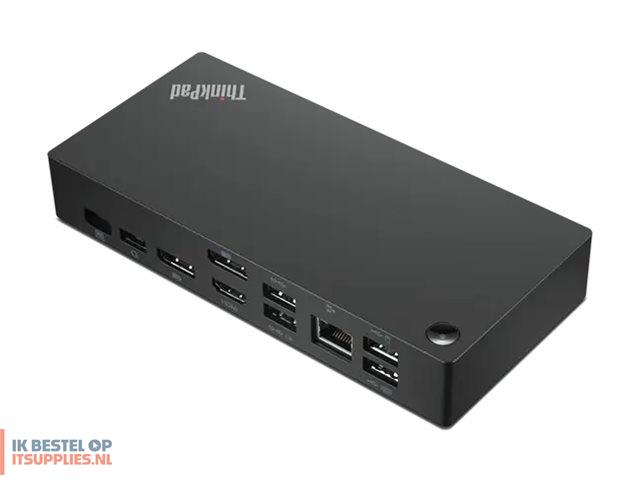

Docking station
Localisation
English / Europe, Vietnam, South Korea
Video
Max Resolution Details
3840 x 2160 - 60 Hz (Dual Display)
3840 x 2160 - 30 Hz (Triple Display)
Networking
Data Link Protocol
Gigabit Ethernet
Expansion / Connectivity

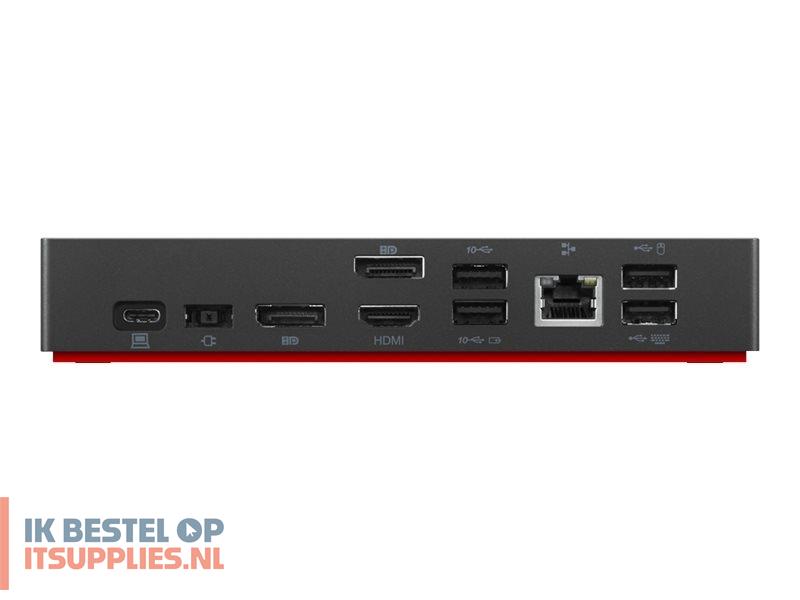

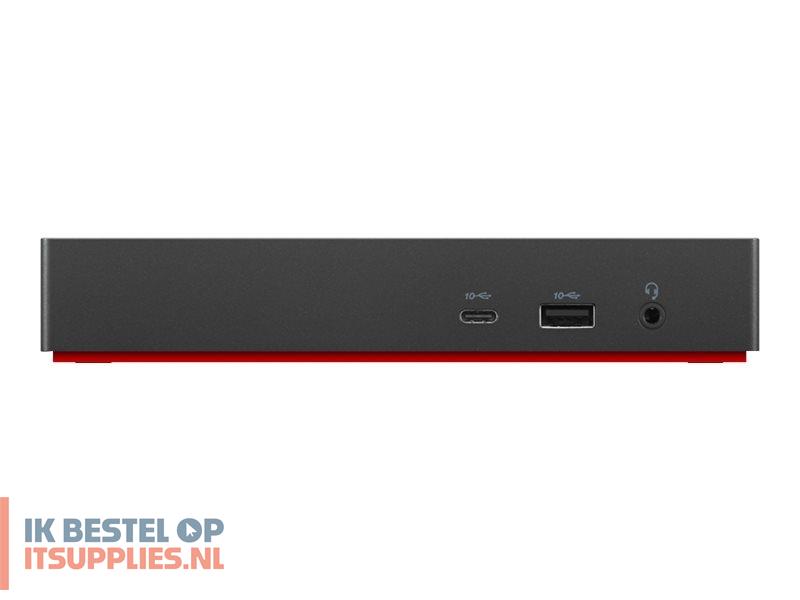

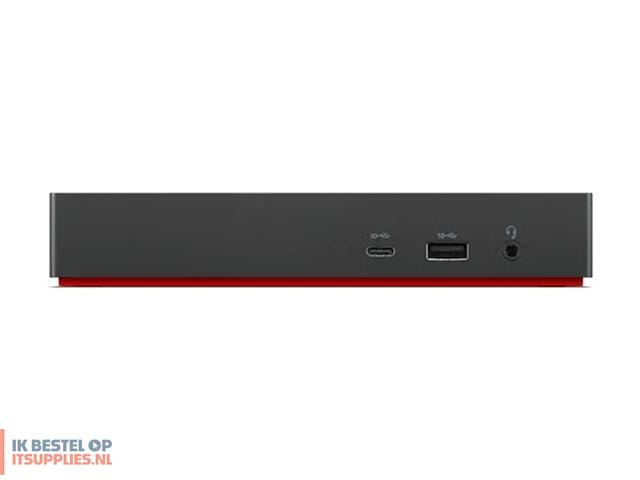

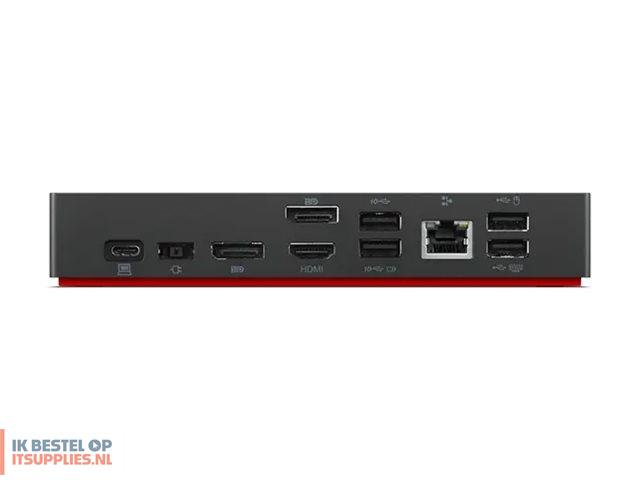

Interfaces
USB 3.2 Gen 2 with Always-on charging
2 x USB 3.2 Gen 2
1 x USB-C - 24 pin USB-C
1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45
2 x audio / video - DisplayPort - 20 pin DisplayPort
1 x audio / video - HDMI - 19 pin HDMI Type A
1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole
2 x USB 2.0 - 4 pin USB Type A
Miscellaneous

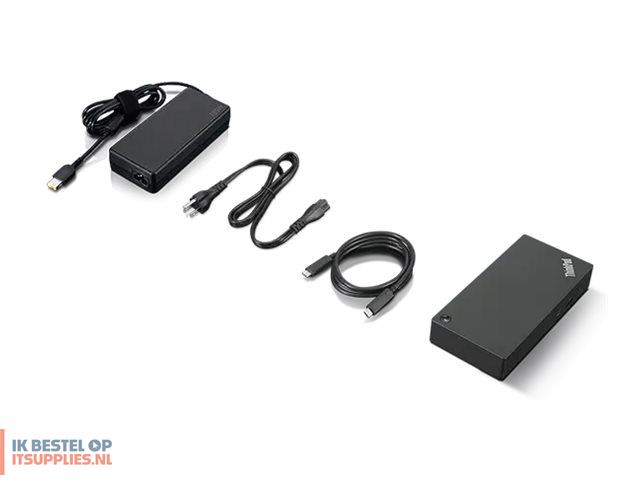

Cables Included
1 x USB-C to USB-C cable - external
Features
Security lock slot (cable lock sold separately), wake on LAN, pass through MAC address, Preboot Execution Environment (PXE) support, 100W output power with 135W power adapter connected, 65W output power with 90W power adapter connected

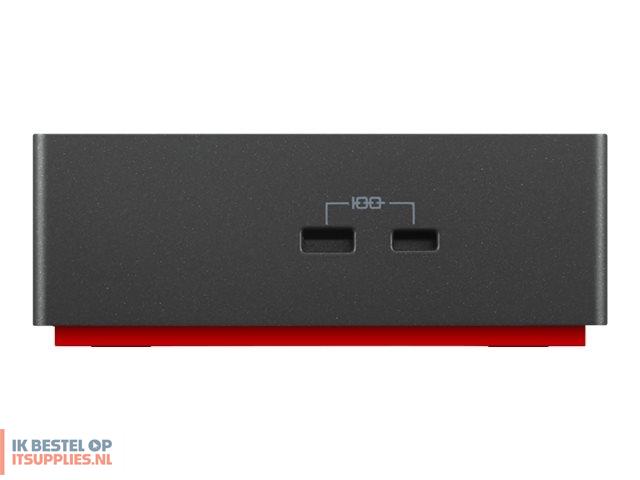

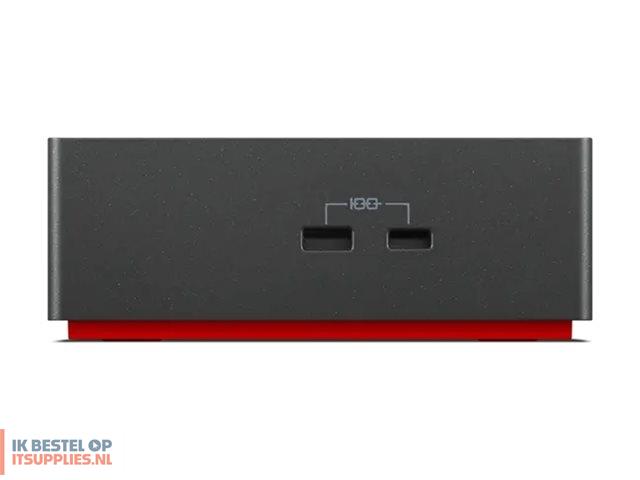

Security Slot Type
Kensington NanoSaver security slot / Kensington MicroSaver security slot
Compliant Standards
FCC, ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV Mark, Kvalitet, LoA, SII, Ukraine EMC DoC, NOM, DisplayPort 1.4
Manufacturer Selling Program
Lenovo Campus
Power
Power Device
Power adapter
System Requirements
OS Required
Microsoft Windows 7 / 10
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 3 years
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
