General
Product Type

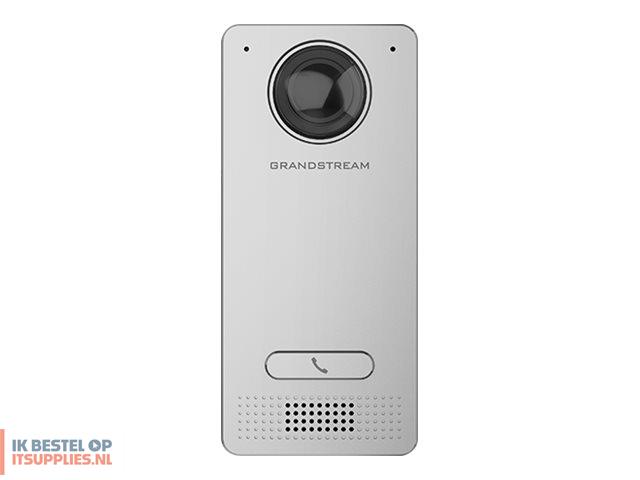

IP intercom station - with camera
Functions
Video intercom, motion detection
Integrated Components
Microphone, speaker (2W), call button
Power Source
Power adapter, PoE
Placing / Mounting
Wall-mounting
Connectivity Technology
Wired - Ethernet, Fast Ethernet
Interfaces Details
2 x alarm input
Alarm output
LAN/power
Features
H.264 compression standard, MJPEG streaming video, e-mail notification, blue LED backlight, weatherproof, vandalproof, 2-way audio, PoE Class 3, FTP support, SIP support, VoIP support, TCP/IP support, UDP support, RTP support, RTCP support, HTTP support, HTTPS support, TR-069 Remote Management, ARP support, RARP support, Internet Control Message Protocol (ICMP), LLDP-MED, DNS support, DHCP support, SSH support, SMTP support, Trivial File Transfer Protocol (TFTP) support, NTP support, STUN support, TLS decryption, SRTP support, Quality of Service (QoS), DiffServ support, MPLS support, Type of Service (ToS), firmware upgradable
Camera
Image Sensor
2 Megapixel 1/2.7"
Max Digital Video Resolution
1920 x 1080
Features
180° field of view (horizontal), 150° field of view (vertical), Wide Dynamic Range (WDR), Hemispheric imaging technology, Advanced ISP
Miscellaneous
Included Accessories
Mounting bracket, drilling template, 4 rubber gaskets, 6 back panel screws, 6 bracket screws, 6 anchors, anti-tamper hex key, 4 anti-tamper screws, wiegand cable, frame back cover
Compliant Standards
IEEE 802.3af, G.722, G.711 U-Law, G.711 A-Law, IEEE 802.1Q, IEEE 802.1p, AES-256, IP66, EN 60529, IEC 62262 IK10, FCC, IC, RCM, UKCA
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
-30 °C
Max Operating Temperature
60 °C
Humidity Range Operating
10 - 90% (non-condensing)
