General
Device Type
Video conferencing kit
Kit Content

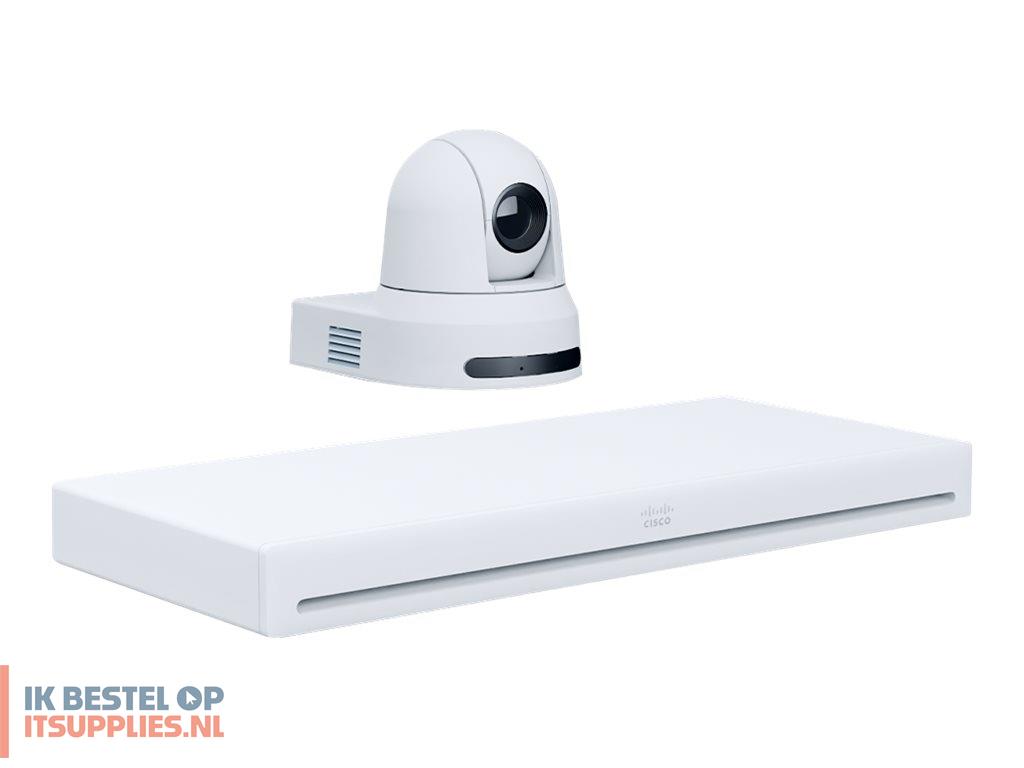

Cisco Webex Codec EQ, Cisco Webex PTZ 4K Camera
Voice Codecs
G.711, G.722, G.722.1, G.729, AAC-LD, Opus
Video Codecs
H.265, H.264, H.263
Quality of Service
IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p
IP Address Assignment
DHCP
Security
IEEE 802.1X, H.235 v3
Network Protocols
HTTP, HTTPS, DNS, NTP
Dimensions & Weight Details
Camera - Width 15.8 cm Depth 20 cm Height 17.7 cm Weight 1.7 kg
Codec - Width 47.3 cm Depth 20.2 cm Height 4.4 cm Weight 2.33 kg
Modem
Digital Signaling Protocol
H.460.18, H.460.19, BFCP, SIP
Video Input
Type
Digital video camera (colour)
Digital Video Capture Resolution
3840 x 2160, 1920 x 1080
Camera Mechanical Design
Pan / tilt / zoom
Features
Smart tracking, AI-powered, 60 frame per second, Miracast connectivity, WebEx compatible, -170° / +170° pan, -20° / +90° tilt, 70° field of view (horizontal), focus distance 1 m to infinity, F 2.0-3.8 lens aperture, Auto Focus, auto white balance, automatic brightness adjustment, PoE+ support
Networking
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth
Network / Transport Protocol
NTP, DHCP, DNS
Features
AI powered, 2x2 MIMO technology, security lock slot (cable lock sold separately), DiffServ support, Cisco Expressway technology, Wireless Screen Sharing, DNS support, Quality of Service (QoS), Network Timing Protocol (NTP), URI Dialing, Class of Service (CoS), Certificate Authority Proxy Function (CAPF), Locally Significant Certificates (LSC), Manufacturer-Installed Certificates (MIC)
Compliant Standards
IEEE 802.3bt, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, X.509, Wi-Fi CERTIFIED 6
Expansion / Connectivity
Interfaces
1 x USB-C - 24 pin USB-C
3 x display / video - HDMI input - 19 pin HDMI Type A
3 x display / video - HDMI output - 19 pin HDMI Type A
3 x audio - input - mini-phone 3.5 mm 4-pole
1 x audio - output - mini-phone stereo 3.5 mm
4 x SuperSpeed USB 3.0 - 9 pin USB Type A
1 x USB - 5 pin Micro-USB Type A
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++) - RJ-45
3 x antenna
1 x display / video - HDMI - 19 pin HDMI Type A
1 x network - Ethernet 10Base-T/100Base-TX (PoE+) - RJ-45
Miscellaneous
Compliant Standards
EDID compatible, CEC 2.0, Directive 2002/96/EU, Directive 2011/65/EU, Directive 2014/30/EU, Directive 2014/35/EU, Directive 2014/53/EU, FCC, FCC 47 CFR Part 15 B Class A, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E, NRTL, RoHS, WEEE, EN 55032 Class A, EN 55035, EN 62368-1
Power
Power Device
Power supply - internal
Voltage Required
AC 100-240 V (50/60 Hz)
Manufacturer Warranty
Service & Support
Limited warranty - 90 days
Limited warranty - advance hardware replacement - 10 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90% RH
