General
Host Connectivity
Gigabit Ethernet
Enclosure Type
Rack-mountable - 2U
Total Storage Capacity
0 GB
Max Supported Capacity
108 TB
Installed Devices / Modules Qty
0 (installed) / 8 (max)
Processor / Memory
Processors Installed
1 x Ryzen Embedded V1500B 2.2 GHz
RAM
4 GB (installed) / 32 GB (supported) - DDR4
Storage Controller
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare, RAID 1 hot spare
Networking
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE
Network / Transport Protocol
PPTP, L2TP, iSCSI, FTP, SMB, NFS, HTTP, HTTPs, SMB v2, Telnet, SMB v3
Remote Management Protocol
SNMP, Telnet, SSH
Network Services Compatibility
Microsoft Active Directory (AD), Microsoft CIFS, FTP, Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1)
Features
Firewall protection, LDAP support, wake on LAN (WOL), Syslog support, antivirus analysis, High Availability, video server, POP3 e-mail server, Access Control List (ACL) support, RADIUS support, FTP server, e-mail server, reset button, surveillance station, DNS server, VPN Server, Link Aggregation, scheduler, failover protection, B-tree file system (Btrfs), network virtualisation (NV), file station, EXT4 file system, SSD trim, RAID migration, MailPlus server, hybrid backup sync
Encryption Algorithm
AES, SSL, TLS
Security DVR
Expansion / Connectivity
Expansion Bays
8 (total) / 8 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots
1 (total) / 1 (free) x PCI Express 3.0 x8
1 (total) / 1 (free) x expansion slot

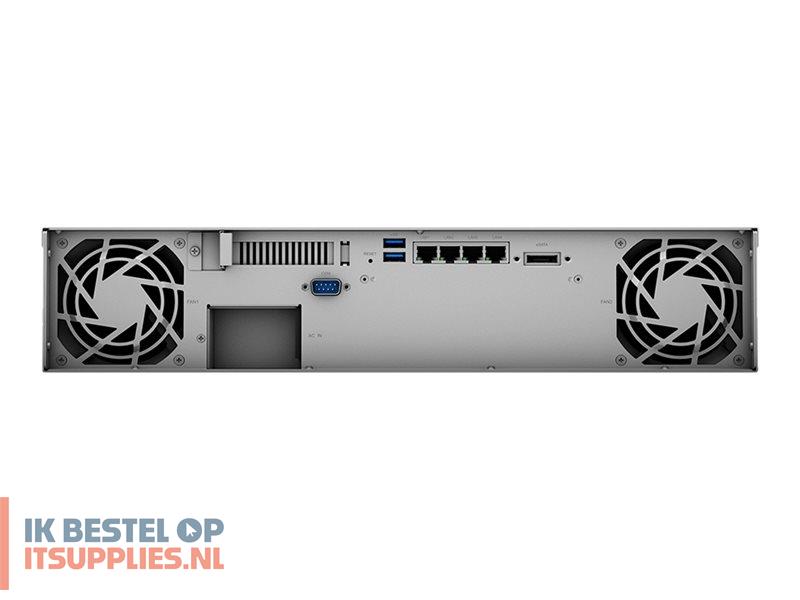

Interfaces
4 x Ethernet 1000Base-T - RJ-45
2 x USB 3.2 Gen 1
1 x eSATA
Miscellaneous
Features
Built-in 2 cooling fans, 80mm cooling fan
Compliant Standards
VCCI, BSMI, CCC, FCC, AES, RoHS, KC, EAC, RCM
Power
Power Device
Internal power supply
Power Redundancy Scheme
1+1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
61.94 Watt
Software / System Requirements
OS Required
Microsoft Windows 7 or later, Apple macOS 10.12 or later
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
35 °C
Humidity Range Operating
5 - 95%
